  4. Wood-Aluminum Window - TA35 SLRA

Wood-Aluminum Window - TA35 SLRA | batimet

  • Use

    Integral windows - glass balustrade
  • Applications

    Residential, commercial
  • Characteristics

    Corner joints welded with no visible joint line, choice of wood types, highly weather-resistant, anti-corrosion
  • Sizes

    Height of Sash to 3,000 mm | Width of Sash to 1,600 mm | Weight of Sash as Tilt/Turn to 200 kg | Weight of Sash as Turn Only to 300 kg
  • Certification

    GSB-International GSB AL 631, QUALICOAT

4 Supplementary Files

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products

More about this product

batimet wood-aluminum windows made in Germany are certified for energy efficiency. The TA35 SLRA design has a sash profile which is concealed behind the frame profile thanks to the even elevation between the fixed glazing and opening elements. The wood-aluminum window is defined by a slim frame elevation of 50 mm; there is a rebate of 8mm between the glass and sash profile. The construction is known as an integral sash or "Blockflügel".

In the case of certain static requirements, the sash profile can be wider. Drainage of the rebate area is by means of concealed punch holes in the bottom profile crosspiece of the frame. Optionally, there can be visible drainage with a cover cap.

batimet TA35 SLRA batimet TA35 SLRA

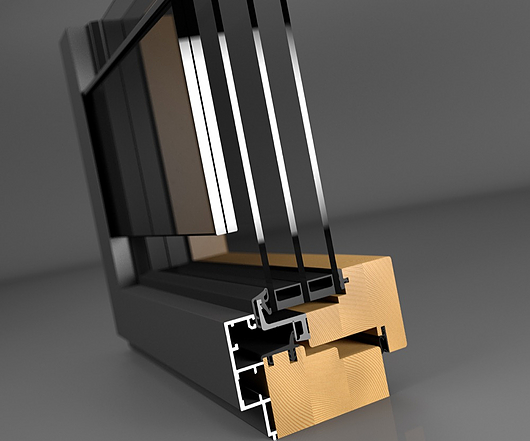

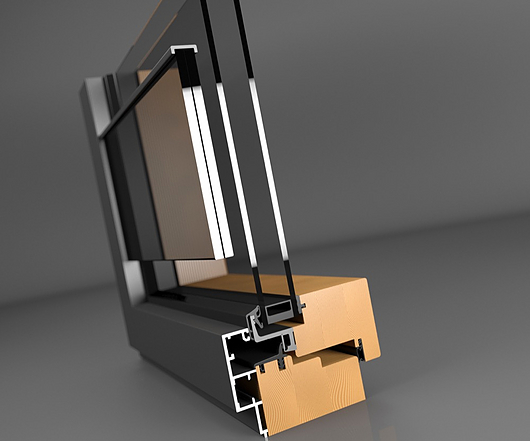

Double Glazing Triple Glazing

Specifications

Top UW-Values Uw-Values ≥ 0.69 W/m²K
Types of Wood Spruce, Pine, Fir, Larch, Oak, Hemlock, Douglas Fir
Surface RAL, NCS, DB, anodized, metallic, highly weather-resistant, sea-water proof
Corner Joint Welded, no visible joint lines, durable anti-corrosion coating

Specifications

DIN EN 12207 Air Permeability: Class 4
DIN EN 12208 Driving Rain Resistance: Class E1200
DIN EN 12210 Windload Resistance: Class C4
DIN EN ISO 10077-2 Uw ≥ 0.69 W/m²K
DIN EN ISO 717-1 Noise Insulation: Rwp = 48 dB
DIN EN 1627 Burglar Resistance: RC1N, RC2N, RC2, RC3
DIN 18008-4 TRAV Safety Barrier: Category A, B, C
