Wood-Aluminum Window - TA35 FVNG | batimet

This product is no longer available on ArchDaily.

We recommend these related products

  • Use

    Offset windows

  • Applications

    Residential, commercial

  • Characteristics

    Corner joints welded with no visible joint line, choice of wood types, highly weather-resistant, anti-corrosion

  • Sizes

    Height of Sash to 3,000 mm | Width of Sash to 1,600 mm | Weight of Sash as Tilt/Turn to 200 kg | Weight of Sash as Turn Only to 300 kg

  • Certification

    GSB-International GSB AL 631, QUALICOAT

6 Supplementary Files

pdfbatimetTA35_FVNG_doubleG

2.9 MB

pdf
pdfbatimetTA35_FVNG

3.3 MB

pdf
6.11_Windows_batimet_TA35_FVNG

140 KB

docx
dsbatimetTA35_FVNG

200 KB

pdf
pdfbatimetTA35_FVNG_BA

910 KB

pdf
U_Value_Table_batimetTA35_FVNG

140 KB

pdf
By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products

More about this product

Batimet wood-aluminum windows made in Germany are certified for energy efficiency. In this offset window design, the frame profile and sash profile form an offset surface plane. Between glass and sash profile there is an 18mm deep rebate. The 35 mm visible sash profile elevation runs straight and perpendicular to the glass level. In the case of certain static requirements, the sash profile can be made wider.

The rebate area is drained by means of concealed punch holes in the bottom profile crosspiece of the frame or it can be optionally drained with a visible cover cap.

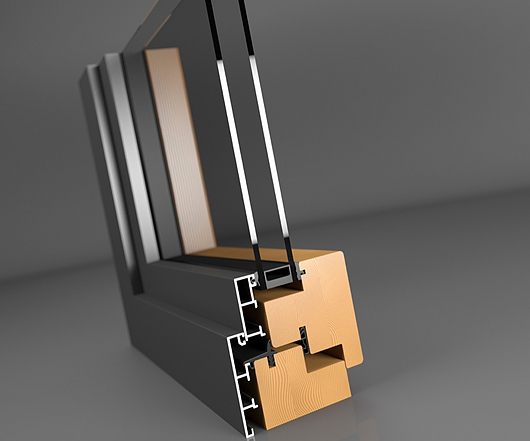

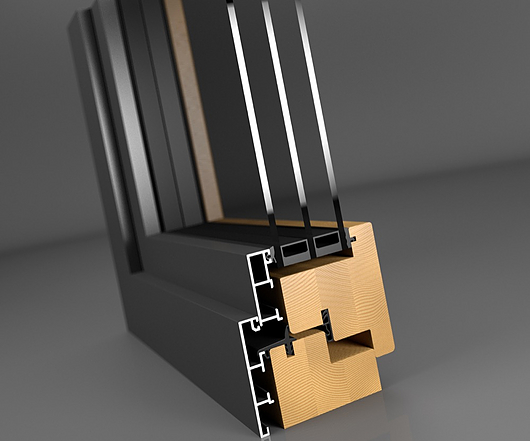

batimet TA35 FVNG batimet TA35 FVNG
Double Glazing Triple Glazing

Details

Top UW-Values Uw-Values ≥ 0.72 W/m²K
Types of Wood Spruce, Pine, Fir, Larch, Oak, Hemlock, Douglas Fir
Surface RAL, NCS, DB, anodized, metallic, highly weather-resistant, sea-water proof
Corner Joint Welded, no visible joint lines, durable anti-corrosion coating

Specifications

DIN EN 12207 Air Permeability: Class 4
DIN EN 12208 Driving Rain Resistance: Class E900
DIN EN 12210 Windload Resistance: Class C4
DIN EN ISO 10077-2 Uw ≥ 0.74 W/m²K
DIN EN ISO 717-1 Noise Insulation: Rwp = 46 dB
DIN EN 1627 Burglar Resistance: RC1N, RC2N, RC2
DIN 18008-4 TRAV Safety Barrier: Category A, B, C
