Wood-Aluminum Window - TA35 VB | batimet

Share
  • Use

    Flush windows
  • Applications

    Residential, commercial
  • Characteristics

    Corner joints welded with no visible joint line, choice of wood types, highly weather-resistant, anti-corrosion
  • Sizes

    Height of Sash to 3,000 mm | Width of Sash to 1,600 mm | Weight of Sash as Tilt/Turn to 200 kg | Weight of Sash as Turn Only to 300 kg
  • Certification

    GSB-International GSB AL 631, QUALICOAT

Ask for more information / Quote

You have to type a valid name
You have to type a valid email format
You have to type a valid phone number
You have to type a message longer than 10 characters
By sending this quote request you agree to the Terms of use and the Privacy Policy.

More about this product

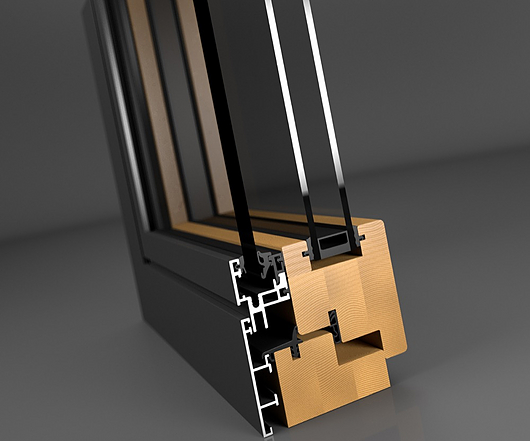

batimet wood-aluminum windows made in Germany are certified for energy efficiency. In this flush window design, the main feature is a separate, glazed, exterior sash frame that is openable via a composite hardware system. A flush surface plane is formed between the frame profile and the sash profile. Between glass and sash profile there is a rebate of 10 mm depth.

The elevation of the visible sash profile is 33 mm however the sash profile can be wider in the case of certain static requirements. The rebate area is drained by means of concealed punch holes in the bottom profile crosspiece of the frame or it can be optionally drained with a visible cover cap.

Batimet TA35 VB

Details

Top UW-Values Uw-Values ≥ 0.74 W/m²K
Types of Wood Spruce, Pine, Fir, Larch, Oak, Hemlock, Douglas Fir
Surface RAL, NCS, DB, anodized, metallic, highly weather-resistant, sea-water proof
Corner Joint Welded, no visible joint lines, durable anti-corrosion coating

Specifications

DIN EN 12207 Air Permeability: Class 4
DIN EN 12208 Driving Rain Resistance: Class E900
DIN EN 12210 Windload Resistance: Class C4
DIN EN ISO 10077-2 Uw ≥ 0.74 W/m²K
DIN EN ISO 717-1 Noise Insulation: Rwp = 46 dB
DIN EN 1627 Burglar Resistance: RC1N, RC2N, RC2
DIN 18008-4 TRAV Safety Barrier: Category A, B, C
