Wood-Aluminum Curtain Wall - TM 80 SE | batimet

  • Use

    Curtain walls - passive house
  • Applications

    Residential, commercial
  • Characteristics

    Corner joints welded with no visible joint line, choice of wood types, highly weather-resistant, anti-corrosion
  • Certification

    Coating: GSB-International GSB AL 631, QUALICOAT

5 Supplementary Files

The product has been saved to the folder: My Downloaded Products

More about this product

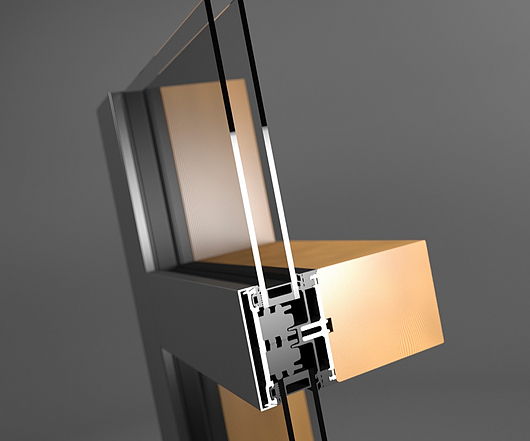

The batimet TM 80 SE Wood-aluminum curtain wall provides a heat-insulated façade for passive houses. The system meets requirements for transom-mullion designs and has a support construction of laminated timber or a choice of different wood materials.

batimet TM 80 SE batimet TM 80 SE
Double Glazing Triple Glazing

The 80mm support construction profile depths are designed according to static and construction requirements for a maximum deflection as required of curtain façades according to DIN EN 13830. Every batimet passive house curtain wall meets special “Passivhaus” requirements with respect to heat-insulation and seals in the façade structure.


Glass Thickness to 64 mm
Other Fillings to 64 mm
Glass Weight to 600 kg
Polygonal Façade to 45°


Top UW-Values Uw-Values ≥ 0.62 W/m²K
Types of Wood Spruce, Pine, Fir, Larch, Oak, Hemlock, Douglas Fir, Multiplex, Pollmeier "Baubuche"
Surface RAL, NCS, DB, anodized, metallic, highly weather-resistant, sea-water proof
Corner Joint Welded, no visible joint lines, durable anti-corrosion coating


DIN EN 12152 Air Permeability: Class AE
DIN EN 12154 Driving Rain Resistance: Class RE2250
DIN EN 13116 Windload Resistance: Load 2.0 kN/m²
DIN EN ISO 10077-2 Uw ≥ 0.62 W/m²K
DIN EN ISO 717-1 Noise Insulation: Rwp = 48 dB
DIN EN 1627 Burglar Resistance: RC1N, RC2N, RC2, RC3
DIN EN 13049 TRAV Safety Barrier: Category A, Klasse 5
DIN EN 12179 Shock Resistance: Class I5/E5
  • General Building Approval, DIBt. [German Institute of Building Technology] Z-14.4-669
  • Approved Curtain Wall Connectors, ETA Danmark - ETA-18/0033
