Wood-Aluminum Door - TA35 DSE TNA | batimet

  • Use

    Door - outward
  • Applications

    Residential, commercial
  • Characteristics

    Corner joints welded with no visible joint line, choice of wood types, highly weather-resistant, anti-corrosion
  • Sizes

    Height of Sash to 3,000 mm | Width of Sash to 1,600 mm | Weight of Sash as Dreh bis 300 kg
  • Certification

    GSB-International GSB AL 631, QUALICOAT

More about this product

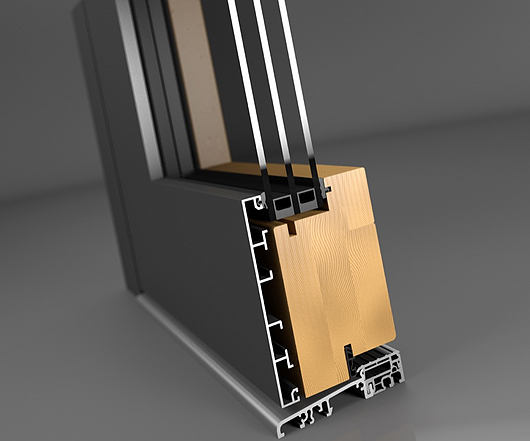

batimet wood-aluminum doors and windows made in Germany are certified for energy efficiency. In this outward door design, the frame profile and sash profile form a flush surface plane. There is an offset of 18 mm depth between the glass and the sash profile.

In the case that the door's sash is formed using a sash overlapping panel, the frame profile and aluminum panel becomes a flush surface plane. The rebate area is drained by means of concealed punch holes in the bottom profile crosspiece of the frame however there is an option to use visible drainage with a cover cap.

Batimet TA35 DSE TNA

Details

Top UW-Values Uw-Values ≥ 0.83 W/m²K
Types of Wood Spruce, Pine, Fir, Larch, Oak, Hemlock, Douglas Fir
Surface RAL, NCS, DB, anodized, metallic, highly weather-resistant, sea-water proof
Corner Joint Welded, no visible joint lines, durable anti-corrosion coating

Specifications

DIN EN 12207 Air Permeability: Class 4
DIN EN 12208 Driving Rain Resistance: Class 9A
DIN EN 12210 Windload Resistance: Class C4
DIN EN ISO 10077-2 Uw ≥ 0.83 W/m²K
DIN EN ISO 717-1 Noise Insulation: Rwp = 40 dB
DIN EN 1627 Burglar Resistance: RC1N, RC2N, RC2
