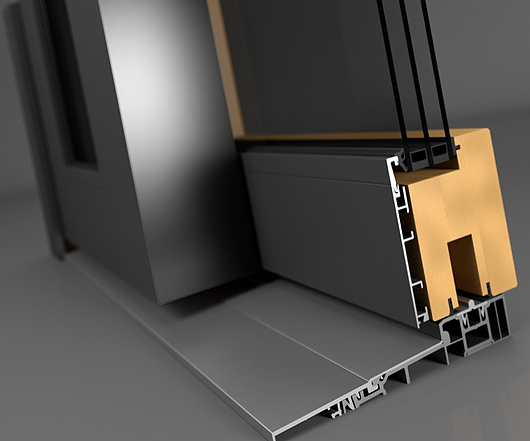

batimet wood-aluminum doors and windows made in Germany are certified for energy efficiency. In this patio lift slide door design, the frame profile and sash profile form a flush surface plane. There is an offset of 15 mm depth between the glass and the sash profile.
The elevation of the visible sash profile is 100 mm and it runs straight and perpendicular to the glass level. The sash profile can be wider in the case of certain static requirements. The rebate area is drained by means of concealed punch holes in the bottom profile crosspiece of the frame however there is an option to use visible drainage with a cover cap.
|Top UW-Values ||Uw-Values ≥ 0.7 W/m²K |
|Types of Wood ||Spruce, Pine, Fir, Larch, Oak, Hemlock, Douglas Fir |
|Surface ||RAL, NCS, DB, anodized, metallic, highly weather-resistant, sea-water proof |
|Corner Joint ||Welded, no visible joint lines, durable anti-corrosion coating |
|DIN EN 12207 ||Air Permeability: Class 4 |
|DIN EN 12208 ||Driving Rain Resistance: Class 9A |
|DIN EN 12210 ||Windload Resistance: Class C4 |
|DIN EN ISO 10077-2 ||Uw ≥ 0.70 W/m²K |
|DIN EN ISO 717-1 ||Noise Insulation: Rwp = 42 dB |
|DIN EN 1627 ||Burglar Resistance: RC1N, RC2N, RC2 |
|DIN 18008-4 ||TRAV Safety Barrier: Category A, B, C |
