Roof hatch - Glazed RHTG | Gorter Hatches

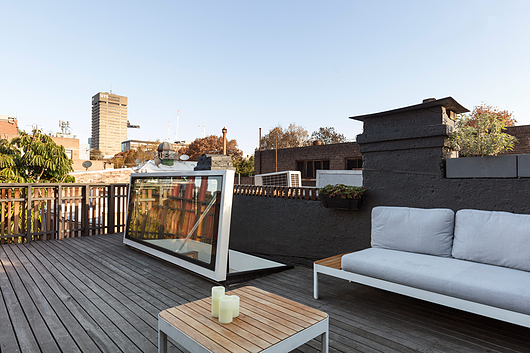

Gorter roof hatches with windows provide practical and safe access to flat roofs for maintenance work or to a rooftop terrace. Glazed roof hatches can be installed on flat roofs with a maximum pitch of 5°.

Gorter glazed rood hatches are ideal for use in buildings or homes where natural daylight is wanted in the rooms below. This can be apartments with a roof terrace, homes with few windows, office buildings or other non-residential constructions.

The Gorter RHTG roof hatch has a fully thermally broken curb and a cover in high-efficiency glass HR+++. This minimises the chance of condensation forming and guarantees energy cost savings. RHTG roof hatches with window are available in combination with a Gorter fixed staircase for floor heights of 2,500 - 3,000 mm or 3,000 - 3,370 mm.

Benefits:

• CE (ETA-18/0831) and KOMO® certified
• Fully thermally broken curb and cover
• Burglar-proof and fall protection HR+++ glass
• Standard electric control
• 10-year warranty on the roof hatch, 1 year on electric operation
• Fast delivery
• High-quality aluminium construction
• Window is self-cleaning through run-off

Model	Size	Diagram

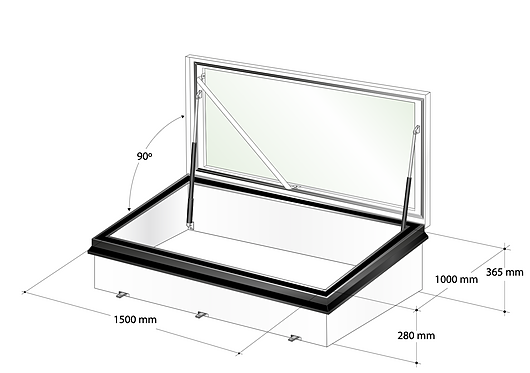

RHTG1015	1000 x 1500mm

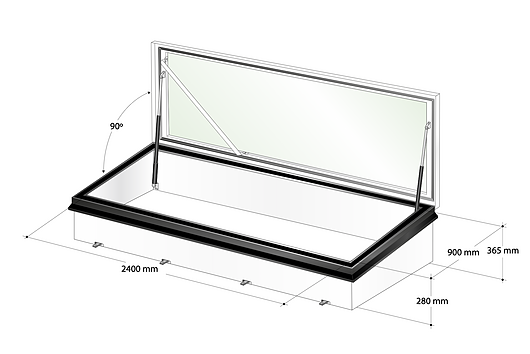

RHTG9024	900 x 2400mm
RHTG9030	900 x 3000mm
