Glass Panel Bracket 107 | VANROHE

Share
  • Use

    Interior/exterior glass panels
  • Applications

    Commercial, educational, healthcare, hospitality
  • Characteristics

    Light design, choice of finish, made with high-grade alloy 316, for use with monolithic or laminated tempered glass
  • Sizes

    Face Cap Thickness: 1/4"
Ask for more information / Quote
You have to type a valid name
You have to type a valid email format
You have to type a valid phone number
You have to type a message longer than 10 characters
By sending this quote request you agree to the Terms of use and the Privacy Policy.

More about this product

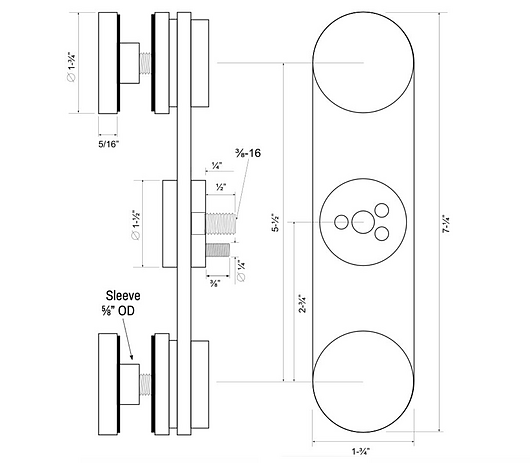

Glass panel brackets 107 from Vanrohe have a light design to be used with monolithic or laminated tempered glass from 1/2" to 5/8" (12 up to 15 mm). They are made with high-grade alloy 316 as standard and can be specified in brushed, polished and bronze finishes. The mounting cap is 1-3/4" (44.5 mm) in diameter. The brackets come with a 3/8-16 screw cap for installation.

Specifications

SS Grade SS316
Finish Brushed, Polished, Bronze
Weight 1.5lb

Installation

Thread Size 3/8-16
Hole Diameter in Glass 3/4" - 1"
Substrate Steel
Glass Panel Thickness 3/8" - 5/8"
Weight Capacity 85lb
