For glass canopies, Vanrohe supplies two types of glass panel brackets and special order spider fittings.
Glass panel brackets have a light design for Use with 1/2" up to 7/8" (12 up to 22mm) monolithic tempered glass or laminated tempered glass. They are made of high-grade exterior alloy 316 as standard for mounting to steel, concrete, or wood substrate. In brushed, polished and bronze finishes, the standoff fitting is 2" (50.5 mm) in diameter. The brackets accept 1/2-13 threaded rod for mounting to wood, steel or concrete.
On top of the standard glass panel brackets 16AD and 18 AD, Vanrohe supplies special order spider fittings; these can be specified as heavy-duty or light, standard or FIN spiders, Vanrohe supplies all types of spider fittings.
Glass Panel Brackets

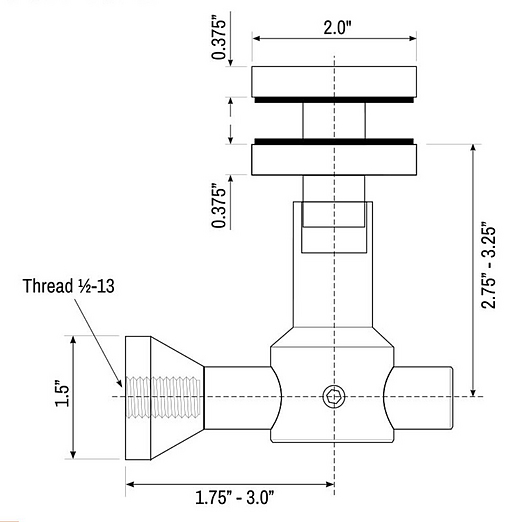

Glass Panel Bracket 16AD
|Glass Panel Bracket 18AD || |
