Fabral Soffits | Omnimax

Share
  • Use

    Soffits
  • Applications

    Commercial, residential
  • Characteristics

    Available in multiple lengths, easy installation, ventilated, choice of colors, match Fabral roofing panels
Ask for more information / Quote
You have to type a valid name
You have to type a valid email format
You have to type a valid phone number
You have to type a message longer than 10 characters
By sending this quote request you agree to the Terms of use and the Privacy Policy.

More about this product

Omnimax provides metal soffits through Fabral. Soffits are both functional and aesthetic; they are used to protect rafters, promote air-flow and add character. These metal soffits are designed to match Fabral roofing, siding or trim systems, they are available in multiple lengths for ease of installation.

Posi-Lock Soffit

Posi-Lock Soffit

The Posi-Lock soffit has concealed fasteners and an interlocking design which allows for fast and economical installation.

  • Fully Vented
  • Perforation Available
  • Aluminum is available vented with a 9.2% free open area

Specifications

Substrate .032″ Aluminum and 24 Gauge Steel
Width 14″
Length 6' to 25'
Depth 3 / 8 "
Coverage 14"

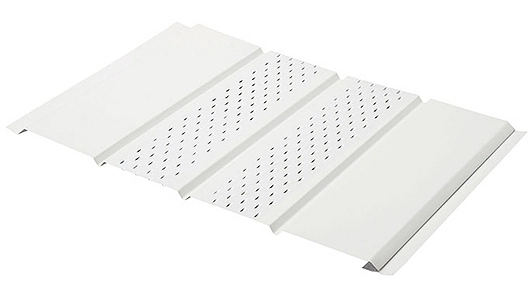

Quad 4 Soffit

Quad 4 Solid Soffit Quad 4 Center Vented Soffit Quad 4 Vented Soffit
Solid Center-Vented Full-Vented

Fabral's Quad 4 soffits are ideal for most applications and are available in multiple lengths for ease of installation.

  • Available in Fabral Standard Colors
  • 3 Soffit Configurations

Specifications

Substrate Aluminum
Lengths 12', 23 ¾", 17 ¾", 11 ¾"
Rib Height 3/8"
Coverage 16"
Net Free Airflow
  • Fully-Vented - 16 in/lf
  • Center-Vented - 8 in/lf
