Fabral Soffits | Omnimax

Share
  • Use

    Soffits
  • Applications

    Commercial, residential
  • Characteristics

    Available in multiple lengths, easy installation, ventilated, choice of colors, match Fabral roofing panels

3 Supplementary Files

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products

More about this product

Omnimax provides metal soffits through Fabral. Soffits are both functional and aesthetic; they are used to protect rafters, promote air-flow and add character. These metal soffits are designed to match Fabral roofing, siding or trim systems, they are available in multiple lengths for ease of installation.

Posi-Lock Soffit

Posi-Lock Soffit

The Posi-Lock soffit has concealed fasteners and an interlocking design which allows for fast and economical installation.

  • Fully Vented
  • Perforation Available
  • Aluminum is available vented with a 9.2% free open area

Specifications

Substrate .032″ Aluminum and 24 Gauge Steel
Width 14″
Length 6' to 25'
Depth 3 / 8 "
Coverage 14"

Quad 4 Soffit

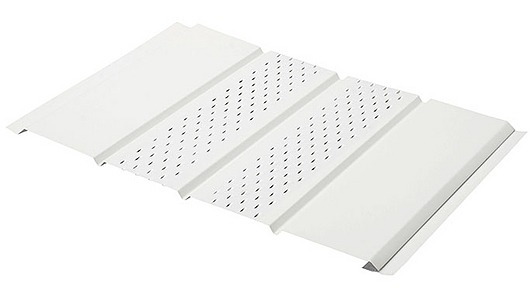

Quad 4 Solid Soffit Quad 4 Center Vented Soffit Quad 4 Vented Soffit
Solid Center-Vented Full-Vented

Fabral's Quad 4 soffits are ideal for most applications and are available in multiple lengths for ease of installation.

  • Available in Fabral Standard Colors
  • 3 Soffit Configurations

Specifications

Substrate Aluminum
Lengths 12', 23 ¾", 17 ¾", 11 ¾"
Rib Height 3/8"
Coverage 16"
Net Free Airflow
  • Fully-Vented - 16 in/lf
  • Center-Vented - 8 in/lf
