  • Use

    Ceiling and wall panels
  • Applications

    Commercial, hotel, healthcare, retail, residential
  • Characteristics

    Enables secure fixing of any panel type (MDF, plywood, alloy, fiberglass, steel) to solid substrate types, 10-15kg pull out load, rapid screw installation with easy clip alignment method, CNC machine compatibility, no special tools required, durable design for frequent handling

5 Product Files

1 General Catalog

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products

Contact manufacturer

Fastmount®

More about this product

The Fastmount™ Low Profile Range covers a wide range of panel mounting solutions, offering hidden fixings that mount thin and lightweight wall and ceiling panels into low-depth substrates and drywall. Created with off-site installation in mind, the LP range is suitable for flat-packing panels thanks to its durable male design.

The LP-SMX clip adds an extra heavy-duty option to the Low Profile Range. With a 15kg pull out load, the clip is designed for use with heavyweight panels and is compatible with the LP-F8, and LP-AF8A. The surface mount clip installs easily with 3 x countersink #6 screws, removing the need for special tools for installation. Ideal for large and heavyweight panels with limited panel depth. NOTE: Should not be used with LP-DF8 installing into drywall substrate, due to the strength of the clip.

Benefits

  • Invisible panel fixing
  • Installs with 3 x #6 countersink screws
  • No special tools required
  • 15kg pull out load per clip
  • Durable design for frequent handling
  • Enables non-sequential panel installation
  • CNC machine compatibility
  • 4mm clearance between panel and substrate
  • Screw fix enables installation into a wide variety of panel types

Applications

  • Heavyweight wall panels with minimal depth
  • Interior panels
  • Ceiling panels
  • Molded into hull
  • Marine and architectural applications
  • Steel, aluminum or fiberglass panels

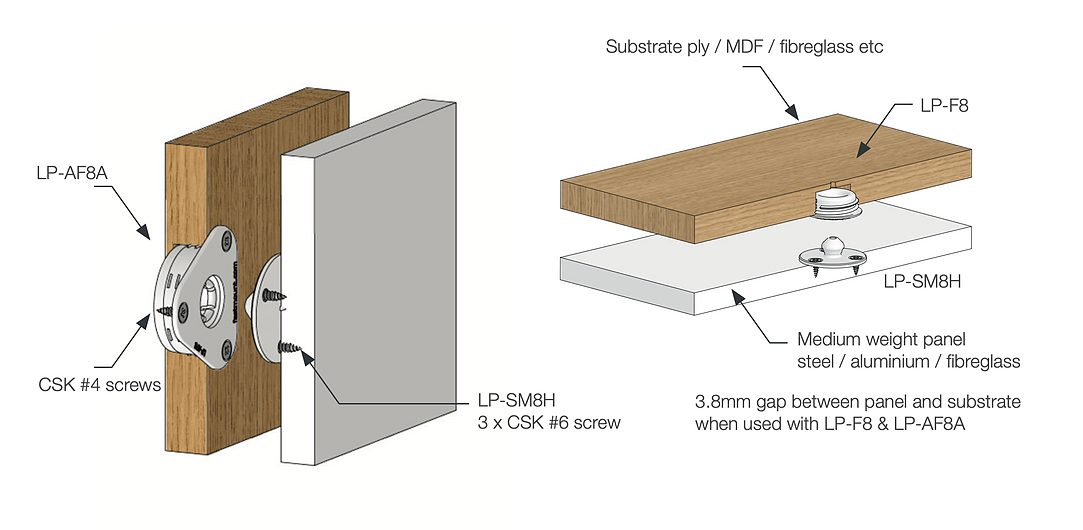

The LP-SM8H adds a mid-range option to the Low Profile Range. With a 10kg pull out load, the clip is designed for use with plywood or MDF panels that are between 9-16mm thick, or aluminium honeycomb panels, and is compatible with the LP-F8, LP-DF8 or LP-AF8A. The surface mount clip installs easily with 3 x countersink #6 screws, removing the need for special tools for installation. Ideal for large panels with limited panel depth. Refer to Panel Offset Guide for gap between substrate and panel, pull out and shear loads. Note: Minimum 13mm thick drywall to be used with LP-DF8 when using LP-SM8H on panels.

undefined

Benefits:

  • Invisible panel fixing
  • Installs with 3 x #6 countersink screws
  • No special tools required
  • 10kg pull out load per clip
  • Durable design for frequent handling
  • Enables non-sequential panel installation
  • CNC machine compatibility
  • 4mm clearance between panel and substrate
  • Screw fix enables installation into wide variety of panel types
  • Self-centering - no need for a centrepoint (CP-08ST)

Applications

  • Plywood or MDF panels 9-16mm thick • Interior panels
  • Ceiling panels
  • Aluminium honeycomb panels
  • Moulded into hull
  • Marine and architectural applications
