Use
Façade Cladding - Rainscreen Façade System -
Applications
Mixed Use Residential -
Characteristics
Extruded, Back-Ventilated, Dense Solid-Wall, Lifetime Graffiti Protection, Lighter Weight, Low Water Absorption, Non-sequential Installation, Available in 10 Standard Shapes -
Sizes
Maximum Panel Height 23.6″ (600mm). Maximum length of 78.7″ (2000mm)- Can vary depending on Panel Height. Most efficient panel size of 8” (203mm) to 18” (457 mm) high by 4.5’ (1372mm) to 5’ (1524mm) long -
Guarantee
Up to 30-Year Warranty
Avenere Cladding has supplied NeaCera Terra-cotta cladding to numerous mixed-use residential buildings in the United States, providing a durable, affordable, 3-component Terracotta rainscreen system, with a wide range of design capabilities.
NeaCera Terra-cotta is an excellent architectural cladding solution for mixed-use residential buildings. There is a multitude of color, shape, size, and configuration options to select from. Avenere Cladding provides complete project support, including comprehensive shop drawings, and orientations, easing the design process with the comfort of up to a 30-year warranty.
In addition to Avenere Cladding's 50+ standard colors, custom color creation and matching is available, along with custom finishes. NeaCera panel colors are available in:
- 11 Matte Finishes
- 12 Satin Finishes
- 4 Stone Finishes
- 2 Glossy Finishes
- 27 Glazed Finishes
- Natural Terra-cotta finish
NeaCera rainscreen cladding panels are available in 9 unique shapes with custom panel shapes available upon request.
NeaCera Panels are available in multiple lengths and heights, with custom sizes available upon request.

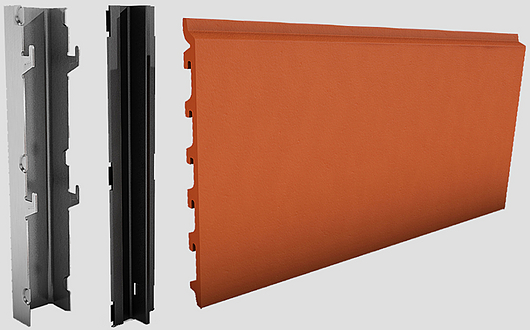

Comprised of 3 universal components, the NeaCera panel, marine-grade aluminum support profile, and joint insert, installing the terracotta rainscreen system is as simple as hanging shelves— Just Lift and Lock the panels into place. At a system weight of only 7.5 lbs. per square foot, and since no clips, gaskets, or sealants are required, installers save time, labor, and money.
The fully tested architectural cladding system comes with a host of cost-saving benefits, such as lifetime graffiti protection baked into the panel, and non-sequential installation to accommodate tie-backs and installation of post-applied elements.
- Design-assist services
- In-house shop drawings
- Installation cost study guides
- A dedicated product technician
- Pre-construction orientation
- Job site orientation
