NeaCera Rainscreen Façade System Renovations | Avenere Cladding

Share
  • Use

    Façade Cladding - Rainscreen Façade System
  • Applications

    Renovations
  • Characteristics

    Extruded, Back-Ventilated, Dense Solid-Wall, Lifetime Graffiti Protection, Lighter Weight, Low Water Absorption, Non-sequential Installation, Available in 10 Standard Shapes
  • Sizes

    Maximum Panel Height 23.6″ (600mm). Maximum length of 78.7″ (2000mm)- Can vary depending on Panel Height. Most efficient panel size of 8” (203mm) to 18” (457 mm) high by 4.5’ (1372mm) to 5’ (1524mm) long
  • Guarantee

    Up to 30-Year Warranty

4 Supplementary Files

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products

More about this product

Avenere Cladding has supplied NeaCera Terra-cotta façade cladding to numerous renovation projects in the United States, providing an affordable, easy to install, 3-component rainscreen system, with a wide range of design capabilities and support services.

NeaCera Terra-cotta is an exceptional rainscreen solution for renovation and recladding projects. This lighter weight cladding option can be easily installed over failing façades with only 3 universal components, this rainscreen system will protect your building from moisture damage ensuring a longer life span.

Colors & Finishes

In addition to Avenere Cladding's 50+ standard colors, custom color creation and matching is available, along with custom finishes. NeaCera panel colors are available in:

  • 11 Matte Finishes

  • 12 Satin Finishes

  • 2 Gloss Finishes

  • 27 Glazed Finishes

  • Custom Color Creation and Matching

  • Custom Finish Creation

    NeaCera Terra-cotta cladding | Avenere Cladding

Shapes

  • 10 Unique Standard Shapes
  • Custom Shape Creation

NeaCera Terra-cotta cladding | Avenere Cladding

Sizes

  • Available in multiple lengths and heights.
  • Custom Sizes Available

Installation

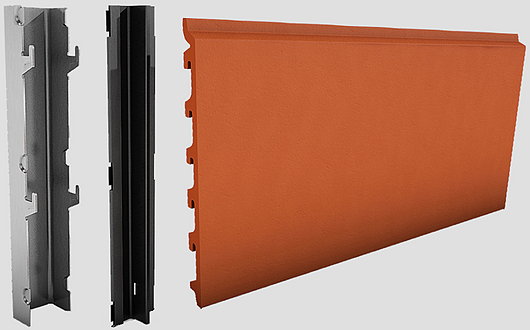

Comprised of 3 universal components, the NeaCera Panel, marine-grade aluminum Support Profile, and Joint Insert, installing the terracotta rainscreen system is as simple as hanging shelves— just lift and lock the panels into place. At a lighter system weight, requiring no clips, or gaskets, installers save time, labor, and money.

NeaCera Terra-cotta cladding | Avenere Cladding

Benefits

The fully tested architectural façade cladding system comes with a host of cost-saving benefits, such as Lifetime Graffiti Protection inherent in the surface of the panel, and non-sequential installation which accommodates tie-backs and installation of post-applied elements.

Services

  • In-house shop drawings

  • Installation cost study guides

  • A dedicated product technician

  • Pre-construction orientation

  • Job site orientation
