Falcon Spider Lifts in Chongging Jiangbei International Airport, China | Falcon Lifts

This product is no longer available on ArchDaily.

We recommend these related products

  • Use

    Maintenance inside, Atrium Access, flexible setup
  • Applications

  • Characteristics

    Narrow access, Best quality & safety, long outreach, Easy transport, setup on sensible floorings, narrow setup, Low weight, low ground pressure, Need for flexible outrigger, Limited setup space, Power – Bi-energy Hybrid
  • Certification

    Machinery Directive 2006/42EC, MEWP standard EN 280

1 Supplementary File

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products

More about this product

The Chongging Jiangbei International Airport is China’s 8th busiest airport, hosting around 36 million passengers per year. The airport is projected to have an annual growth of around 10% per annum as the demand for passengers and cargo continues to grow.

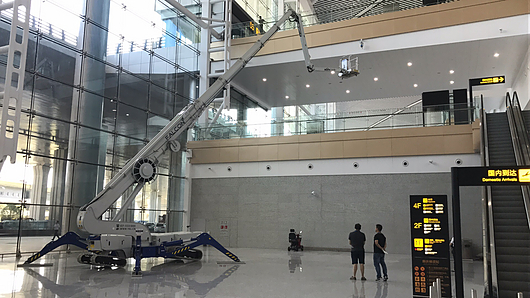

Falcon’s 520C Spider Lift was selected for interior and exterior maintenance tasks at the airport as the double jib allows access to hard-to-reach areas, it is also able to climb stairs and reach all levels of the building. The main characteristic that drove the selection of this Falcon Spider Lift, was the low ground pressure and ability to drive on the fragile marble and tile floors.


The Falcion Spider FS 520C is equipped with the new FALCON “Service Tool” which allows remote monitoring of the lift. The system offers easy remote troubleshooting and diagnosis, and access to full operating tracking records.

About the Falcon Spider Lift - FS 520C

The Falcon Spider Lift FS 520C has a 52 m working height, and is available as a crawler model it is is capable of passing through a door opening a mere 1.20 m wide and 2.10 m high.

Standard equipment:

  • Automatic stability & outreach control
  • Computer-controlled (can-bus)
  • Proportional control of all functions
  • Self-propelled
  • Battery-powered with charger (180 Ah)
  • Double link-arm system
  • 375° turret rotation, with integrated stop
  • +/- 90° basket rotation
  • Individual setting of each outrigger
  • Electronic checking of the power system (PLC)
  • 400V AC direct powered electro-motor
  • Manual pump system for emergency lowering
  • Ability to self-load onto trucks or trailers
  • Double crawler system
  • Front crawler section adjustable
  • Adjustable wheel axle
  • Minimum width only 1,25 m
  • Space for tools etc. in basket
  • Storage room in chassis with lock
  • Diesel engine
  • Wireless remote control of all functions


  • 220V AC power supply in the basket
  • Air/water supply in the basket
  • Sensor system on basket
  • Non-marking crawlers
  • Slope alarm
  • 4 pcs extra batteries
  • Auto setting/leveling
  • Cover
  • Special outrigger footplates
  • Basket in various sizes
  • Special color
  • Anemometer wind warning system

FS 520C Detail

Model FS 520C
Working height 52 m
Maximum Reach 17 m
Linkarm (2 x 3m) 6 m
Double linkarm 200°
Basket Load 200 kg
Aluminum Basket 0.8 x 1.4m
Basket Rotation + / - 90°
Turret Rotation 375°

Dimension (Transport Position)

Model FS 520C
Total Height 2.10m
Total Length 9.3m
Total Width (min) 1.25m
Total Width (max) 1.60m
Gradability (Standard) 20° / 37%
Weight Approx 13,500 kg
