Designed for elegance, convenience, and durability, Trueform Concrete ZEN ADA Commercial Washstands are the ideal solution for hospitality, corporate offices, schools, airports, and other public restrooms where ADA compliance is required.
ZEN ADA Commercial Washstands directly address environments where floating or wall-mounting a sink would be difficult. Consisting of an integrated GFRC (glass-fiber reinforced concrete) ramp sink and deck nested on a steel frame, ZEN Washstands offer a clean, modern design without the complicated installation. With 3.5” tube-steel legs welded together by a concealed steel support structure, each washstand is solid, sturdy, and ready for plumbing as soon as it's secured to the wall with a few simple bolts. ZEN Washstands are carefully built by skilled craftsmen in the USA and offer unrivaled strength beauty, and stability.
With flexibility in mind, ZEN Washstands are offered in three standard sizes and in eight standard concrete colors. Faucet holes and soap holes are optional and configurable. Custom sizes and custom color matching are also available upon request. In addition to flexibility, ZEN washstands were designed to deliver a number of benefits:

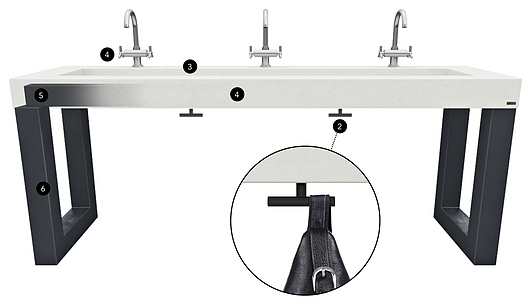

Sturdy, free-standing system is easily secured to the wall with toggle bolts
Optional 3.25" x 1.25" under-mounted hooks for hanging bags or purses
Integrated deck and sink cast in 1" thick GFRC for optimum longevity
A range of sizes to enable multiple wash station configurations, as well as faucet types and soap holes
Concealed, welded steel structure connects legs around perimeter and supports the concrete top
3.5" tube-steel legs with built-in levelers to accommodate uneven floors
Clean lines, natural finish, and an inner ramp-shaped basin that transitions into single or double drain holes (depending on sink size)
Choose from 3 wash station configurations and 8 concrete colors or request a custom size
Washstand Styles & Dimensions
Complete details on Trueform ZEN ADA Commercial Concrete Washstands can be found in their brochure available for download in the Supplemental Files section. A summary is provided below, all models are handmade with concrete and steel in the USA:
| ||ZEN ADA 2-Station Commercial Concrete Washstand ||ZEN ADA 3-Station Commercial Concrete Washstand ||ZEN ADA 4-Station Commercial Concrete Washstand |
|Overall dimensions ||68” x 22” x 34” / Inner ramp-shaped sink basin: 48 ” x 13” x 5” ||98” x 22” x 34” / Inner ramp-shaped sink basin: 80” x 12” x 5” ||128” x 22” x 34” / Inner ramp-shaped sink basin: 110” x 12” x 5” |
|Number of stations ||2 wash stations ||3 wash stations ||4 wash stations |
|Drainage ||Single drain in center ||Dual drains ||Dual drains |
|SKU ||ZEN-68-48V-ADA ||ZEN-98-80V-ADA ||ZEN-128-110V-ADA |
Trueform’s standard concrete colors are muted and have timeless appeal. Subtle variation is expected, giving each sink a complexion that is one-of-a-kind.
Trueform provides configurable BIM files available for download in the Supplemental Files section:
- A free-standing 2 or 3-station lavatory system that allows and guides the user to customize overall product dimensions, as well as basin placement. Default parameter values result in ADA compliance. 2 faucets can be deck or wall-mounted (when choosing the number of faucets, spacing must be verified to meet local building code).
- A free-standing 3 or 4-station lavatory system that allows and guides the user to customize overall product dimensions, as well as basin placement. Default parameter values result in ADA compliance. 3 or 4 faucets can be deck or wall-mounted (when choosing the number of faucets, spacing must be verified to meet local building code).
