Linvisibile Infinito Vertical Pivot Door | Brezza | Linvisibile

Share
  • Use

    Interior pivot doors, wardrobes, panels
  • Applications

    Residential, retail, contract installations
  • Characteristics

    Hidden pivot system, 360° rotation, aluminum outer frame, choice of finishes
  • Colors

    Silver, black, petroleum, dark brown, light and dark bronze
  • Sizes

    Width: from 700 to 1400 mm | Height: from 1900 to 3500 mm
Ask for more information / Quote
You have to type a valid name
You have to type a valid email format
You have to type a valid phone number
You have to type a message longer than 10 characters
By sending this quote request you agree to the Terms of use and the Privacy Policy.

More about this product

Linvisibile Infinito Vertical Pivot door swivels open on a vertical axis, thanks to a sophisticated hidden pivot system. Available with or without stop, the pivoting door can rotate on itself up to 360° opening.

Brezza Infinito | Linvisibile Brezza Infinito | Linvisibile

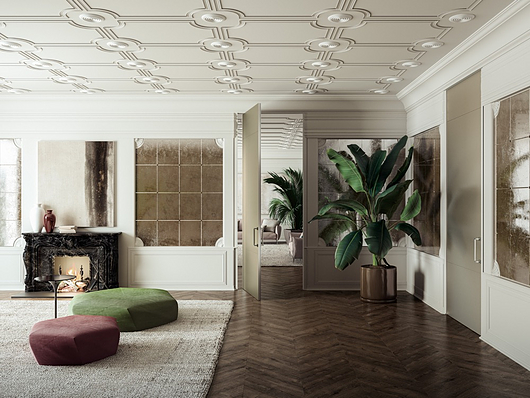

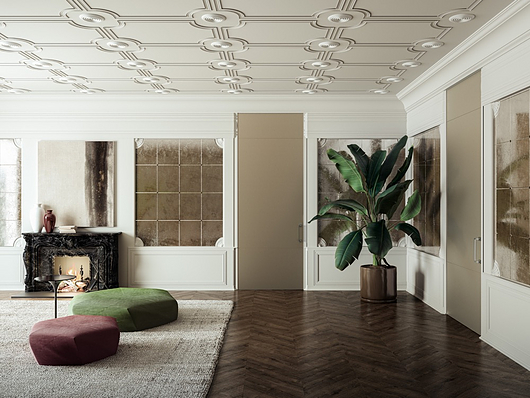

Open Closed

Decorative Finishes

The Infinito system allows the application of diverse finishes over the panel surfaces, thanks to an aluminum outer frame system which hosts the preselected coating, the variety of finishes that can be applied to the Infinito vertical pivot extends to any material with a maximum thickness of 3 mm and an overall weight below 70 kg. There is also the opportunity to apply different finishes on both sides of the door leaf and to personalize the color of the outer frame in matte lacquer compatible with the coatings selected or anodized in 6 colors.

Linvisibile Infinito Vertical Pivot door consists of:

  • An extruded aluminum frame Push or Pull versions (EN AW 6060 alloy Anticorodal 063), assembled ready to house bolts and locks, able to adapt to walls and plasterboard of different thicknesses
  • 50 mm thick panel, consisting of:
    • An internal structure consisting of honeycomb panels
    • A perimeter frame in extruded oxidized natural aluminum applied along the perimeter to the panel with a square angles fixing system
    • A liner of a pre-selected coating material
      • 3 mm (laminate, fiberglass, methacrylate)
      • 4 mm thick (glass/mirror), applied over the panel sides. Available in the following finishes: laminate, Alcantara®, glass, mirror, microcement, and gres porcelain;
  • Concealed rotating pivots, which can be positioned at a minimum distance of 65 mm from the jamb to a maximum point at the center of the panel for the model with stop, or for the model without stop, from a minimum of 250 mm from the jamb to the center of the panel

Applications

Since it can be made to measure and are available in a single leaf model, Linvisibile Infinito Vertical Pivot doors are perfect for both residential and contract installations such as:

  • Internal doors
  • Wardrobe booths
  • Maxi panels
  • Fitted walls
  • Large doors

Technical details

  • Possibility to apply a lock
  • Possibility to apply a high-performance door closer with speed regulation
  • To supply flush fitting handles (round or squared)
  • Template kit supplied to drill the hole in the floor
