Metal Cladding - Karrier Panel | Morin Corp.

Share
  • Use

    Exterior cladding
  • Applications

    Rainscreen wall panels, rear-ventilated facades, metal walls, cladding
  • Characteristics

    Customizable finish, heavy gauge metal panels, cost-effective, insulated, architectural panels
  • Format

    Horizontal or vertical
  • Sizes

    Panel Depth: 2”, 2 1/2”, 3”, 4”, 5”, 6” | Cover Width: 24”, 30”, 36”, 42” (Standard) | Lengths: 6’ (1.52m) to 52’ (9.14m)

1 Supplementary File

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products

More about this product

Morin Corporation is specialized in roll forming of architectural heavier gauge single skin metal wall and metal roof systems. They manufacture over 100 profiles of architectural panels for any size project. Alongside metal panels, Morin Corporation offers a complete suite of metal cladding finishes which include perforations, corners, coordinated louvers and fasteners, and custom extrusions.

KarrierPanel is a universal barrier wall alternative cladding solution to traditional multi-component wall systems. KarrierPanel utilizes Kingspan’s fully engineered KarrierRail to securely and safely transmit loads from a wide range of façade options to the structural supports behind the insulated panel.

Karrier Panel | Morin Corp. Karrier Panel | Morin Corp.

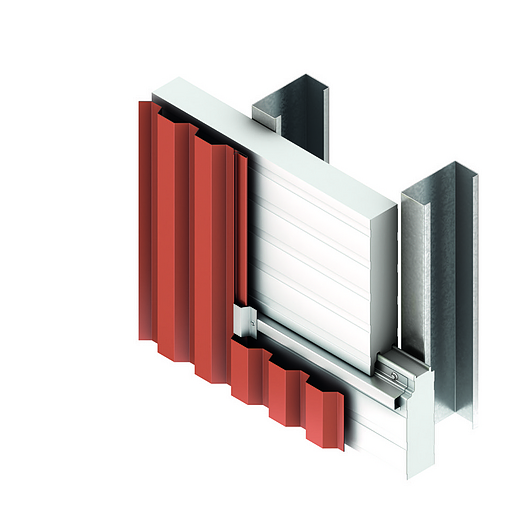

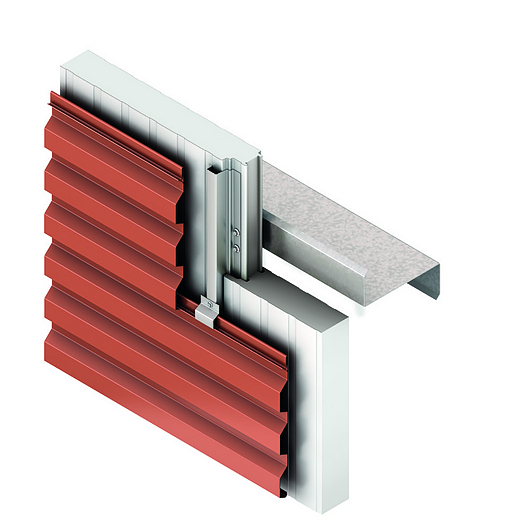

KarrierPanel Vertical Support KarrierPanel Horizontal Support

Benefits

  • Allows for faster building close-in and dry-in for reduced building costs
  • Eliminates thermal-bridging energy losses associated with standard stud/cavity insulation construction
  • Reduces delays in construction experienced with scheduling multiple trades
  • Brick Ties can also be integrated to combine the look of masonry with the benefits of an insulated metal panel

Specifications

Panel Joint

Double tongue and groove interlocking rainscreen joint
Reveal 3/8”
Exterior and Interior Face

26,24,or22GA
Shadowline profile embossed Galvalume pre-painted steel
