ApplicationsResidential, public, urban, landscape
CharacteristicsToughened glass, no recessing box required, easy installation and maintenance, no visible screws
SizesThickness: 5mm, 6mm, 8mm

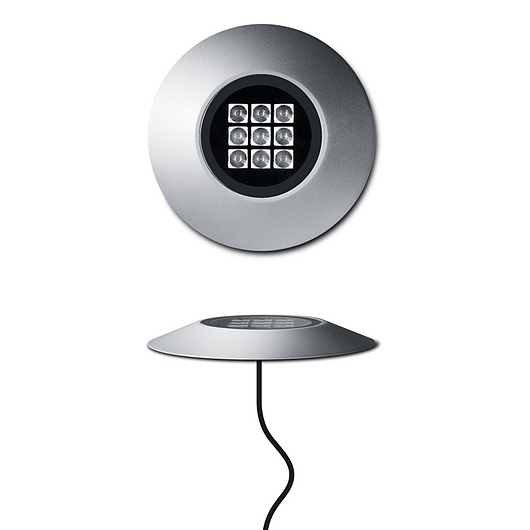

Over-all is an innovative in-ground up-lighter from SIMES suitable for a multitude of applications: Over-all exterior up-light can be used to illuminate trees, bushes, and shrubbery; it also can be installed next to vertical surfaces to illuminate them with grazing light.
Research on the shape and on the balance of the proportions by SIMES has led to the development of extremely neat and essential lines: it gives birth to a thin lighting body with no visible screws and reduced thickness.

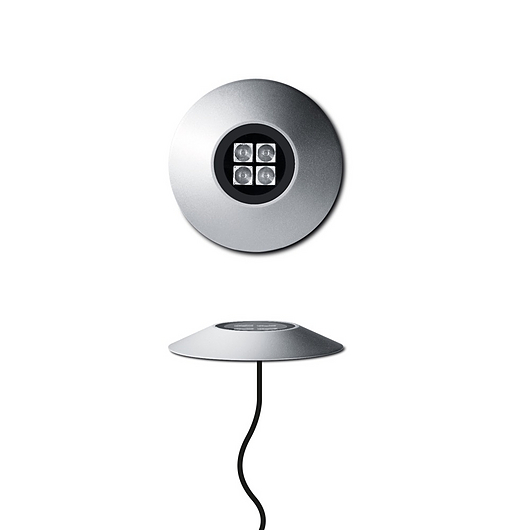

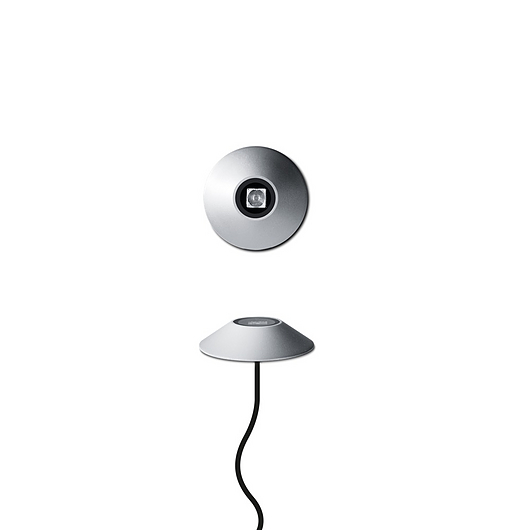

|Over-all||Mini Over-all||Micro Over-all|
a special nylon fixing plate isolating it from the ground is directly fixed to the surface without the need for any recessing box or soakaway, making it easier to install and maintain.
|Isolation class||CLASS III|
|Mechanical resistance||IK 08|
- Die-cast EN AB-44100 aluminum housing with high corrosion resistance.
- Toughened glass
- Clear polycarbonate lenses.
- A4 stainless steel fixing clips. Insulating nylon fixing plate for direct ground surface mount.
- Luminaire supplied with 6m of cable.
- Double powder paint.
