Ornamental Welded Wire Mesh Panels | Banker Wire

Share
  • Use

    Interior/Exterior
  • Applications

    Decorative railings, fences & enclosures, partitions, displays, custom ceilings, canopies, parking garages, restoration projects
  • Characteristics

    Customizable, durable, sustainable, flexible, fabrication for attachment, secondary finish options
Ask for more information / Quote
You have to type a valid name
You have to type a valid email format
You have to type a valid phone number
You have to type a message longer than 10 characters
I want to receive a sample
By sending this quote request you agree to the Terms of use and the Privacy Policy.

More about this product

Banker Wire manufactures decorative welded wire mesh in a range of patterns. With over 100 years of experience in wire mesh manufacturing, Banker Wire has the knowledge and product selection to realize a range of projects, if required, they can fabricate wire mesh panels for attachment to a structure and apply a variety of secondary finishes; any pattern or wire spacing can be customized to fit a project.

Decorative Wire Mesh is an extremely versatile material which is available in thousands of patterns from simple to highly elaborate. It is used in all kinds of projects, whether functional, detail-oriented, aesthetic, creative, commercial or ornamental. In addition, wire mesh is a robust material that can withstand the rigors of high traffic areas. The Banker Wire ornamental welded wire mesh panel collection includes multiple wire, square and rectangular repeating patterns that offer more visual interest than standard grids.

Patterns

WD-278 | Banker Wire

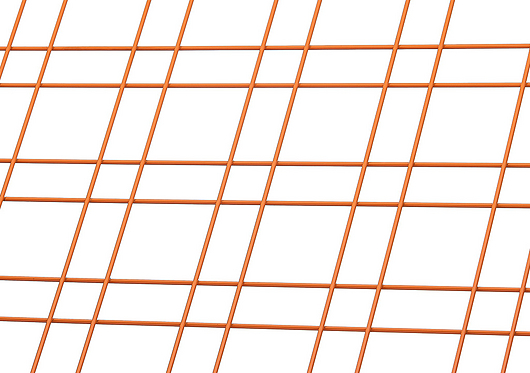

WD-278:
A square repeating pattern with 2 wires every 6 inches.

WD-299 | Banker Wire

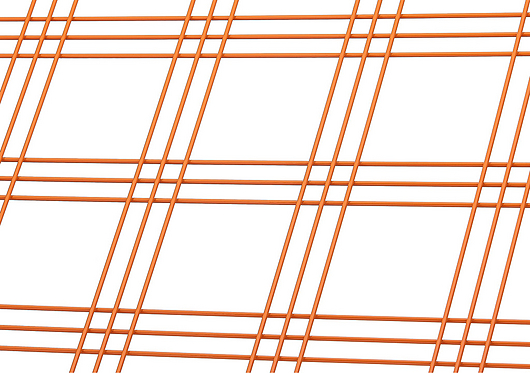

WD-299:
A square repeating pattern of 3 wires every 7.5 inches.

WD-301 | Banker Wire

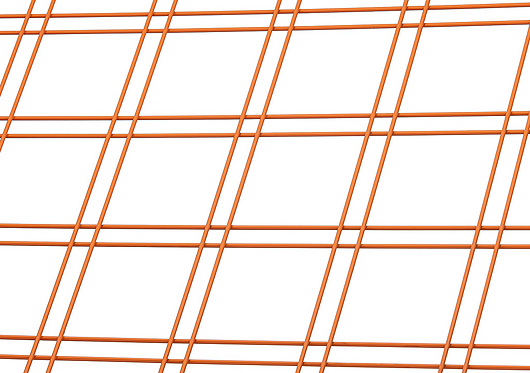

WD-301:
A square repeating pattern consisting of 2 wires every 6 inches.

WD-303 | Banker Wire

WD-303:
A square repeating pattern consisting of 3 wires every 6 inches.

WDZ-539 | Banker Wire

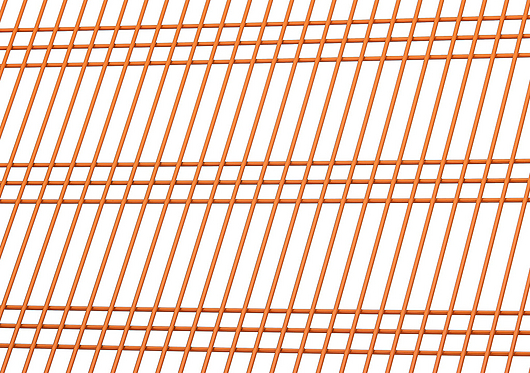

WDZ-539:
A rectangular pattern with a 7.5:1 aspect ratio.
Crosswires are spaced every 1 inch while a trio of line wires are grouped every 7.50 inches.

WDZ-540 | Banker Wire

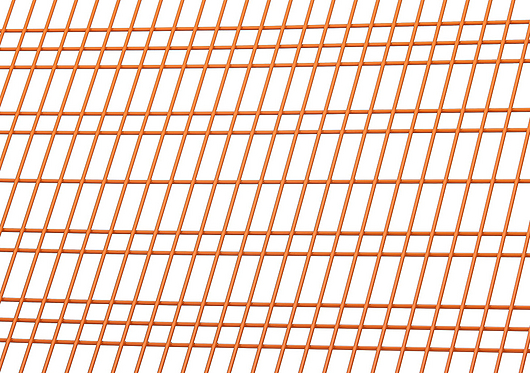

WDZ-540:
A rectangular pattern with a 14.00:1 aspect ratio.
Crosswires are spaced every 1 inch and line wires are positioned in a 3,2,1/1,2,3 repeating sequence.

WDZ-524 | Banker Wire

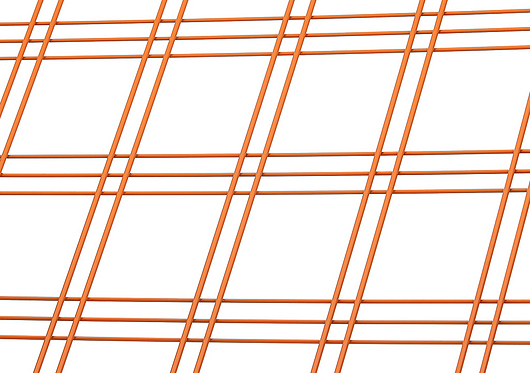

WDZ-542:
A slightly rectangular pattern with a 1.25:1 aspect ratio.
2 cross wires repeat every 6 inches and there are 3 line wires every 7.5 inches.

WDZ-545 | Banker Wire

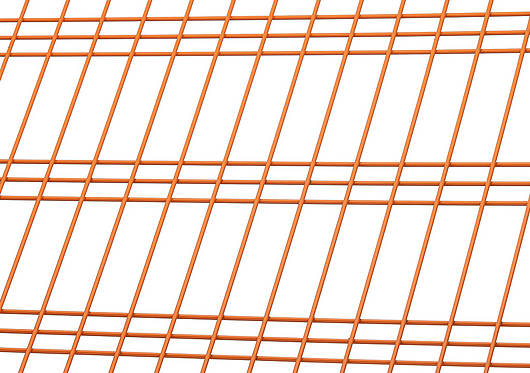

WDZ-545:
A rectangular pattern with a 4.00:1 aspect ratio.
Crosswires are spaced every 2 inches and a trio of line wires are grouped every 8 inches.

WDZ-615 | Banker Wire

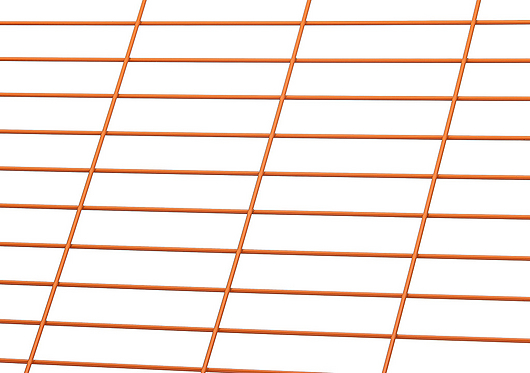

WDZ-615:
A high percent open area can secure an area without drawing attention.
The 2”x8” rectangular pattern has a 4.00:1 aspect ratio.

Customization

Banker Wire's expansive range of products and customization options allow them to assist in the early stages of design to ensure that the end result is both beautiful and functional.

Materials

  • Stainless steel
  • Plain steel
  • Weathering steel
  • Pre-galvanised
