Metal Wall Systems - Exposed | Morin Corp.

Share
  • Use

    Exterior cladding
  • Applications

    Residential, educational, corporate, commercial, cultural, industrial, metal walls, cladding, architectural panels
  • Characteristics

    Exposed fasteners, low cell lap, wide range of profile options, customizable finish
  • Format

    Horizontal, vertical
  • Sizes

    Length: 5' (1.52m) to 30' (9.14m) Standard | Depth: 1⁄2” (3mm) - 4" (102mm) | Cover width: 24”-40" (711mm)

4 Supplementary Files

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products

More about this product

Morin Corporation is specialized in roll forming of Architectural heavier gauge single skin metal wall and metal roof systems. They manufacture over 100 profiles of architectural panels for any size of project. Alongside panels, Morin Corporation offers a complete suite of metal cladding finishes which include perforations, corners, coordinated louvers and fasteners, and custom extrusions.

Exposed Fastener metal walls are used in every type of building nowadays. For a wall project, specify the "B" profile exposed fastener with a finished side and a low cell lap. From the traditional sine wave C profile to the bold O-24 profile, a wide range of profile design options are available.

Profiles

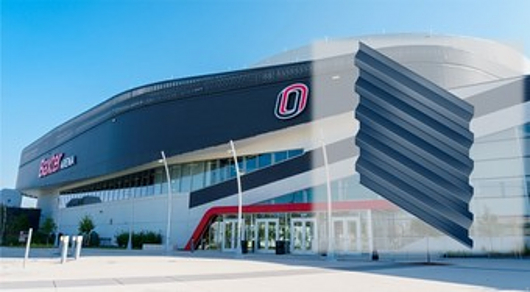

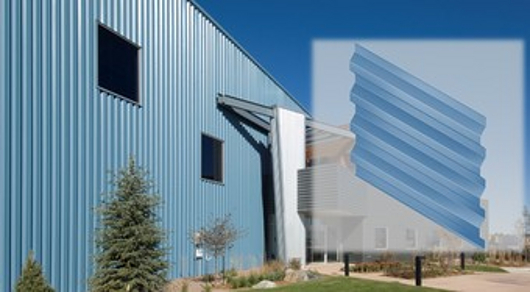

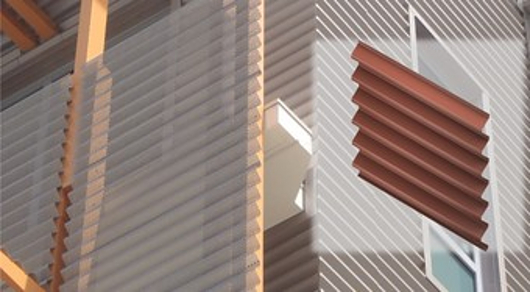

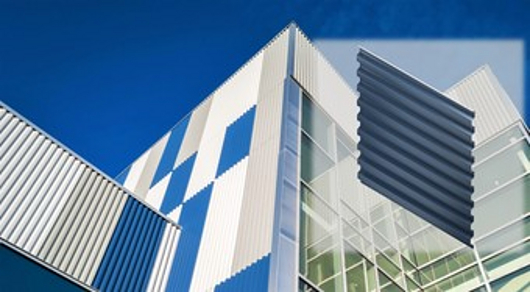

Exposed VB-36 Exposed Y-29 Exposed Y-36 Exposed VB-31
Exposed VB-36 Exposed Y-29 Exposed Y-36 Exposed VB-31

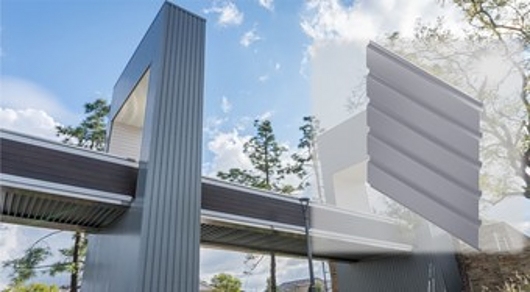

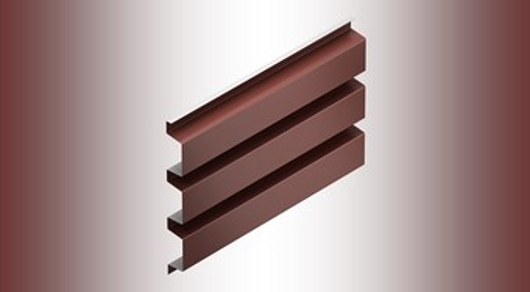

Exposed U-24 Exposed O-24 Exposed MR-36 Exposed E8-40
Exposed U-24 Exposed O-24 Exposed MR-36 Exposed E8-40

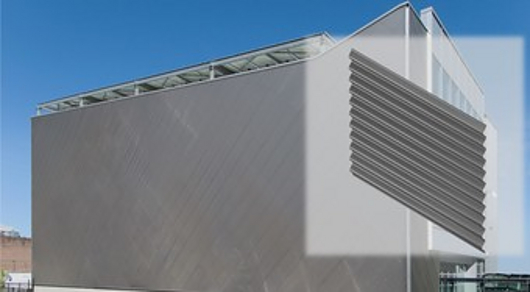

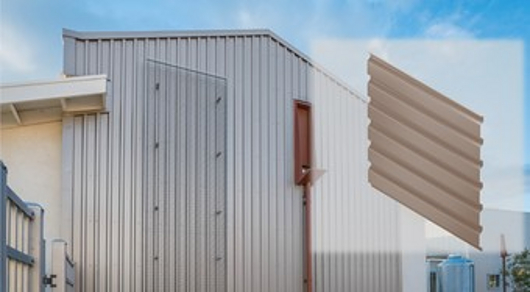

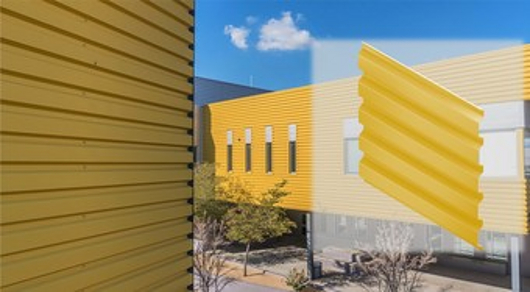

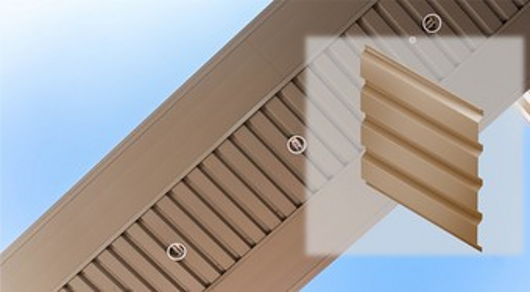

Exposed E-36 Exposed C-29 Exposed BR9-36 Exposed BR7-35
Exposed E-36 Exposed C-29 Exposed BR9-36 Exposed BR7-35

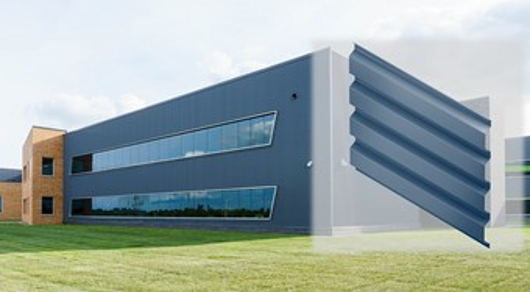

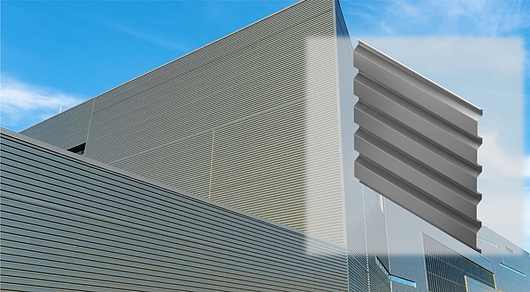

Exposed BR-35 Exposed BR-28
Exposed BR-35 Exposed BR-28

Material Options

  • Galvalume/Zincalume Painted Steel
    • 18 GA (1.19mm), 20 GA (.91mm), 22 GA 24 GA (.60mm)
  • Aluminum
    • .040 Ga (1mm), .050 GA (1.27mm)
  • Stainless Steel
    • 20 GA (.91mm), 22 G (.76mm), 24 GA (.60mm)
  • Zinc
    • 18 GA (1.5mm), 20 GA (1mm), 22 GA (.91mm)
  • Natural Copper
    • 20 oz., 16 oz.

Morin Corporation can provide on-site installation guidance and technical staff to help with drawings, design, cost-saving ideas and technical knowledge.
