Metal Roof Systems - SWL | Morin Corp.

  • Use

    Metal Roofing
  • Applications

    Residential, educational, corporate, commercial, cultural, industrial, architectural panels, cladding
  • Characteristics

    Customizable finish, choice of profiles, non-mechanically seamed, concealed fasteners, on-site fabrication available
  • Sizes

    Width: 12" (305mm), 16" (406mm), 18" (457mm) | Height: 1" (25mm) - 2" (51mm) | Length: 5' (1.52m) - 40' (12.19m) Standard

3 Catalogs and Files

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products

Contact manufacturer

Morin Corp.

More about this product

Morin Corporation is specialized in roll forming of Architectural heavier gauge single skin metal wall and metal roof systems. They manufacture over 100 profiles of architectural panels for any size of project. Alongside panels, Morin Corporation offers a complete suite of metal cladding finishes which include perforations, corners, coordinated louvers and fasteners, and custom extrusions.

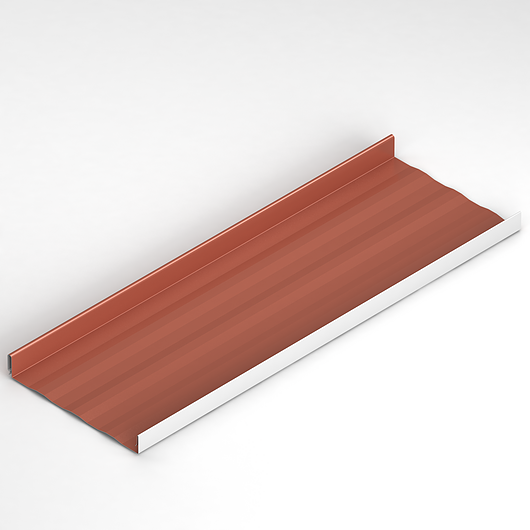

The SWL profile utilizes two narrow ridges on each panel for panel strength; the panels can be fabricated on-site. The SWL Profile is part of the Architectural Design Panels series, which offers:

  • Concealed clip and fastener design
  • Ideal for new or retrofit projects
  • All PVDF finishes available


These metal roofing systems are non-mechanically seamed and are designed to shed rainwater. As such a minimum pitch of 3:12 is required for this category of metal roof panel. BCR panels require a solid substrate for installation.


SWL 12-0 SWL 12-S SWL 16-1 SWL 18-2

Material Options

  • Galvalume/Zincalume Painted Steel
    • 20 GA (.91mm), 22 GA 24 GA (.60mm)
  • Aluminum
    • .040 Ga (1mm), .050 GA (1.27mm)

Morin Corporation can provide on-site installation guidance and technical staff to help with drawings, design, cost-saving ideas and technical knowledge.
