The Kingspan Optimo Series is suitable for high volume, large scale, new and retrofit applications across the commercial and industrial sectors.
The Optimo panel system from Kingspan has many customizable options for design flexibility. Optimo panels are available smooth or embossed with a soft non-directional embossed stucco texture. The insulating panels use a patented double seal integrated joint.
Incorporating superior airtightness as well as high R-value is a critical step to achieving an energy-efficient LEED® certified and net-zero energy building. Optimo’s single-component system can reduce on-site installation time by up to 50% compared to traditional site assembled systems.
Specifications
| Profile | Exterior: Flat
Interior: Shadowline, flat |
| Embossing | Stucco/non-embossed |
| Exterior gauge | 22 ga |
| Interior gauge | 26, optional 24 or 22 ga |
| Width | 40”, 36”, 30”, 24” |
| Thickness | 2”, 2.5”, 3”, 4”, 5", 6" |
| Length | 8’ to 20’ (non-embossed), 8’ to 32’ (embossed) |
| Reveal option | Vertical: 1/8”
Horizontal: 1/8”, 3/8” |
| Post-fabrication | Trimless ends, folded corner |
| R-Value | QuadCore Technology: ≈ 8 per inch per ASTM C518 @ 75oF
PIR: ≈ 7.2 per inch per ASTM C518 @ 75oF, ≈ 8.25 per inch per ASTM C518 @ 35oF |
Details

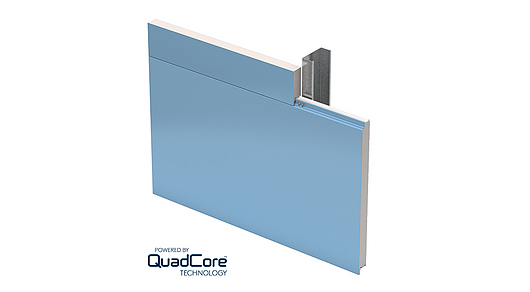

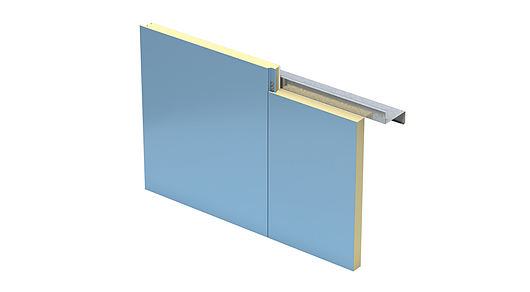

| Intermediate Support Vertical | Intermediate Support | Stack Joint | Outside Corner |
 |  |  |  |
Features
- High R-value
Provides superior thermal and airtightness performance over the service life of the building - Single component
Minimizes construction delays and the need for multiple trades - Faster build
Faster on-site installation time compared to traditional multi-part systems - Return on investment
Performance benefits result in energy cost savings of as much as 30% over traditional multi-part built-up systems - Design flexibility
Available in multiple profiles, trimless ends, finishes and color options - Tested and approved
Panels have been extensively tested for compliance with various industry standards and building safety codes
QuadCore Technology
QuadCore Technology is Kingspan’s next generation of self-blended hybrid insulation core using gray microcells. With an ‘envelope first’ design approach, the envelope of the QuadCore insulation has the potential to reduce the sizing of HVAC systems on top of improving energy usage and reducing carbon emissions.
