Kingspan KarrierPanel is a cost-effective universal solution for barrier wall alternatives to traditional multi-component wall systems. KarrierPanel provides a simplified barrier wall assembly, minimizing component use and construction delays.
Comprising of a Kingspan KS Series panel and integrated rail, KarrierPanel is the ideal barrier wall to support secondary rainscreen systems such as brick or metal facades.
Details

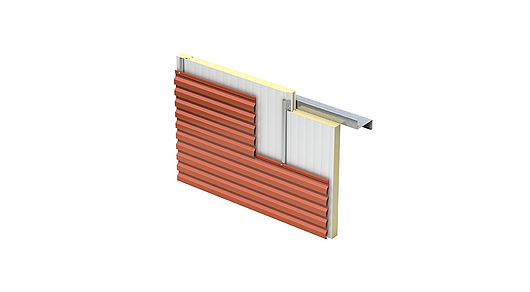

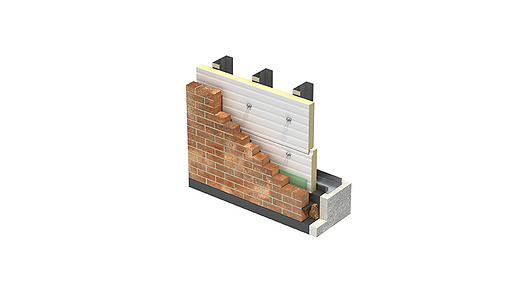

| Horizontal Intermediate Support | Vertical Intermediate Support | Window Header | Brick Base |
 |  |  |  |
Specifications
| Exterior Profile | Shadowline/flat |
| Interior Profile | Shadowline |
| Gauge | 26, 24, 22 ga |
| Width | 24", 30" 36", 40", 42" |
| Thicknesses | 2”, 2.5”, 3”, 4”, 5”, 6” |
| Length | 8’ to 53’ |
| Reveal | 3/8” to accommodate rail |
| R-Value | ≈ 7.2 per inch per ASTM C518 @ 75oF
≈ 8.25 per inch per ASTM C518 @ 35oF |
Features
- Faster close-in and dry-in for reduced building costs.
- Single sourced system results in less labor time on-site and construction waste.
- Reduces delays in construction experienced with scheduling multiple trades.
- Increase in build speed allows faster project completion and reduces business disruption
Benefits of Kingspan KarrierPanel vs. Traditional Built-up Construction
- Superior thermal performance of IMPs with air, water, and vapor barrier
- More uniform temperature distribution throughout the wall ensures moisture control.
- Eliminates energy losses associated with thermal- bridging cavity insulation.
- Eliminates concerns over UV exposure as compared to conventional rainscreen components.
- No compromisation of air, water, and vapor barrier
- Allows for visual inspection and testing.
- Results in quicker ROI.
