Insulated Wall Panels - KS Granitstone

  • Use

    Interior/exterior horizontal/vertical cladding

  • Applications

    Architectural, construction

  • Characteristics

    Good thermal performance, easy installation, flexible design, customizable

  • Format

    Insulated panels

  • Certification

    GREENGUARD Gold Certified

  • Guarantee

    2-years standard materials workmanship warranty. Up to 20 years standard finish warranty

10 Supplementary Files

Insulated_Panel_Systems_Product_Selector

3.3 MB

pdf
Color_Chart

2.2 MB

pdf
KS_Granitstone_Data_Sheet

2.4 MB

pdf
KS_Granitstone_Weight_Table

54 KB

pdf
KS_Series_Horizontal_CAD_Details

7.1 MB

pdf
KS_Series_Horizontal_CAD_DetailsA

20 MB

dwg
KS_Series_Installation_Guide

6.4 MB

pdf
KS_Series_Specification

110 KB

pdf
KS_Series_Vertical_CAD_Details

11 MB

dwg
KS_Series_Vertical_CAD_Details

3.4 MB

pdf
Ask for more information / Quote
You have to type a valid name

You have to type a valid email format
You have to type a valid phone number
You have to type a message longer than 10 characters
By sending this quote request you agree to the Terms of use and the Privacy Policy.

More about this product

KS Granitstone from Kingspan is a complete, high-performance insulated metal panel that resembles and has the texture of stucco masonry. KS Granitstone can integrate with other KS Series panels.

Details

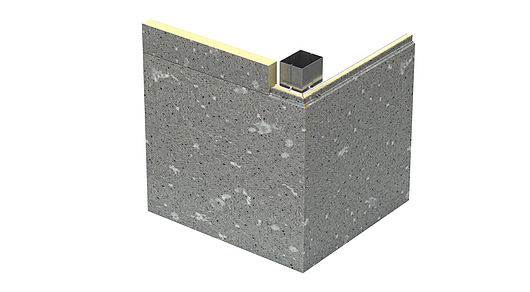

Intermediate Support Vertical Quartz Stack Joint Quartz Outside Corner
KS Granitestone Intermediate Support Vertical KS Granitestone Quartz Stack Joint KS Granitestone Quartz Outside Corner

The Kingspan KS Granitstone® finish provides the appearance of stucco or natural stone, with an acrylic aggregate finish factory applied over primed steel. It is also available in five standard Granitstone Quartz finishes.

Specifications

Profile Exterior: Flat with Granitstone or Granitstone Quartz finish
Interior: Shadowline
Embossing Stucco (interior can also be non-embossed)
Gauge 22, 24 (also 26 for exteriors) ga
Width 2”, 2.5”, 3”, 4”, 5”, 6”
Length 8’ to 30’
Reveal option Vertical = 1/8”, horizontal 3/8”
R-value ≈ 7.2 per inch per ASTM C518 @ 75oF
≈ 8.25 per inch per ASTM C518 @ 35oF

Features

  • Panels can be applied horizontally or vertically
  • Granitstone panels arrive on-site ready for quick and easy installation
  • Thicknesses range from 2”-6” for superior thermal performance
  • Outside corner and U-shaped panels can be factory formed
  • Kingspan Granitstone finish is also available in the 300 Series joint design as well as Designwall
