Insulated Wall Panels - Designwall 4000 | Kingspan Insulated Panels

Share
  • Use

    Horizontal/vertical cladding
  • Applications

    Architectural, construction
  • Characteristics

    Thermal efficiency, airtight, design flexibility, integrates with other BENCHMARK products and accessories, QuadCore insulation, air/water/vapor barrier
  • Format

    Insulated panel
  • Certification

    GREENGUARD Gold Certified, Certified material transparency and disclosure, Red List Free classification
  • Guarantee

    2-years standard materials workmanship warranty. Up to 20 years standard finish warranty, 30-year thermal warranty
Ask for more information / Quote
You have to type a valid name
You have to type a valid email format
You have to type a valid phone number
You have to type a message longer than 10 characters
By sending this quote request you agree to the Terms of use and the Privacy Policy.

More about this product

BENCHMARK is Kingspan's selection of architectural panel systems. The systems are all sourced by BENCHMARK and come with a variety of panel profiles and accessories to ensure proper integration and project management.

DesignwallTM 4000 is the go-to choice for large-scale projects. The foamed-in-place architectural wall panel has reveal options ranging from 1/16” tight to 6” allowing for the creation of shadows and accents. It is available in embossed, non-embossed and Shadowline.

QuadCoreTM

QuadCoreTM Technology is Kingspan’s next generation of self-blended hybrid insulation core using gray microcells. With an ‘envelope first’ design approach, the envelope of the QuadCoreTM insulation has the potential to reduce the sizing of HVAC systems on top of improving energy usage and reducing carbon emissions.

Details

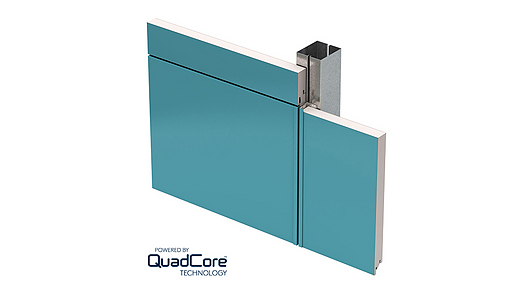

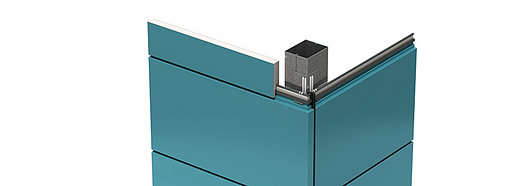

Vertical joint Intermediate support Fullwrap end
Designwall 4000 QuadCore Vertical Joint Designwall 4000 QuadCore Intermediate Support Designwall 4000 QuadCore Fullwrap End

Features

  • Double transverse bent corners create integrated column covers
  • Available in thicknesses of up to 4” providing exceptional thermal performance and continuous foam-to-foam contact
  • Flushglaze 4500 and 7500 window systems integrate perfectly into Designwall 4000’s joint design
  • Can be installed horizontally or vertically depending on design parameters
  • Designwall R Series panels can be used alongside Designwall 4000 to provide a bold, profiled look

Specifications

Profile Flat
Embossing Exterior: Stucco or non-embossed Interior: Stucco or non-embossed
Gauge Exterior: 22, 20 ga Interior: 24, 22 ga
Width 18” – 42”
Thickness 2”, 2.5”, 3”, 4”
Length 2’ – 24’
Reveal Options 1/8” – 6”
Post Fabrication Transverse bend, trimless end, block spline
R-Value 8 per inch per ASTM C518 @ 75oF
Production method Continuous production line
