Insulated Wall Panels - Designwall R-series
+ 9

  • Use

    Horizontal cladding

  • Applications

    Architectural, construction

  • Characteristics

    Thermal efficiency, airtight, design flexibility, integrates with other BENCHMARK products and accessories, air/water/vapor barrier

  • Format

    Insulated panel

  • Certification

    GREENGUARD Gold Certified

  • Guarantee

    2-years standard materials workmanship warranty. Up to 20 years standard finish warranty

13 Supplementary Files

Kingspan_Be_Inspired_Project_Book_2016

69 MB

pdf
BENCHMARK_Designwall_2000_Horizontal_CAD_Details_DW2000_NA

4 MB

dwg
BENCHMARK_Designwall_2000_Horizontal_CAD_Details_DW2000_NA

6.8 MB

pdf
BENCHMARK_Designwall_2000_Vertical_CAD_Details_DW2000_NA

2.6 MB

dwg
BENCHMARK_Designwall_2000_Vertical_CAD_Details_DW2000_NA

5.1 MB

pdf
BENCHMARK_Designwall_Installation_Guide_DW2000_DW4000_US

4.1 MB

pdf
BENCHMARK_Designwall_R_Series_Data_Sheet_DWRS_NA

1.1 MB

pdf
Color_Chart_NA

2.2 MB

pdf
BENCHMARK_Designwall_2000_Guide_Specification_NA

130 KB

doc
BENCHMARK_Designwall_2000_Guide_Specification_NA

140 KB

pdf
BENCHMARK_Wind_Loads_and_Span_Tables_NA

370 KB

pdf
Kingspan_Environmental_Product_Declaration_Laminated_Metal_Panel_NA

900 KB

pdf
BENCHMARK_Designwall_Weight_Table_NA

50 KB

pdf
You will be contacted by Kingspan Insulated Panels at:
The product has been saved to the folder: My Downloaded Products

Ask for more information / Quote

You have to type a valid name

You have to type a valid email format
You have to type a valid phone number
You have to type a message longer than 10 characters
By sending this quote request you agree to the Terms of use and the Privacy Policy.

More about this product

BENCHMARK is Kingspan's selection of architectural panel systems. The systems are all sourced by BENCHMARK and come with a variety of panel profiles and accessories to ensure proper integration and project management.

DesignwallTM R Series adds a bold, profiled façade with 7/8” deep ribs. Variable rib configurations are available in module widths of 12”, 16”, 20” and 24”. BENCHMARK DesignwallTM R Series can be combined with other DesignwallTM horizontal panel profiles from Kingspan.

Details

Vertical joint Intermediate support Profile intergration Transverse bent corner

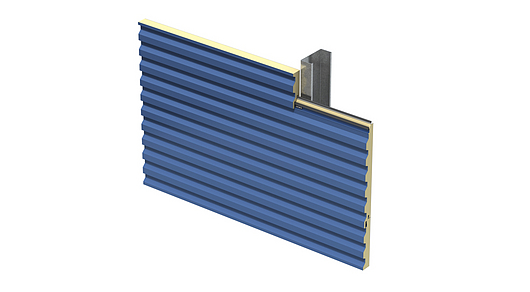

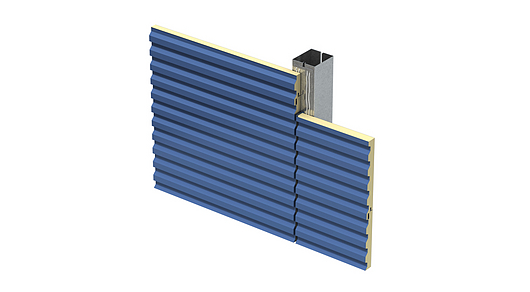

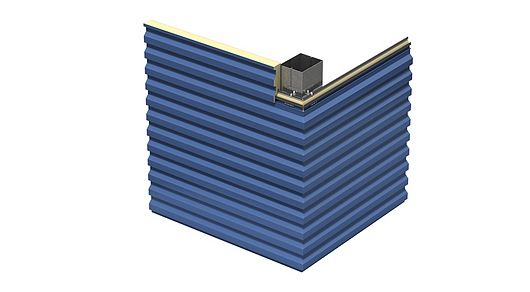

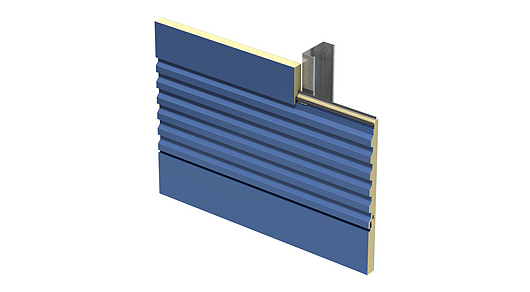

Designwall R-Series Vertical Joint Designwall R-Series Intermediate Support Designwall R-Series Profile Intergration Designwall R-Series Transverse Bent Corner

Features

  • All thickness options engage with Flushglaze 4500 and 7500 integral window systems
  • Panel lengths available as long as 20’ and as short as 4’
  • Designwall R Series joint perfectly matches Designwall 2000, 4000 and Shadowline
  • Completely integrates with extruded or anodized aluminum design louvers

Specifications

Profile Exterior: Ribbed, Interior: Flat
Embossing Stucco or non-embossed
Gauge Exterior: 22 ga Interior: 24, 22 ga
Width 12”, 16”, 20”, 24”
Thickness 2.5”, 3”, 4”
Length 2” – 24’
Post Fabrication Transverse bends, end caps
R-Value ≈ 7 per inch based on low cell thickness per ASTM C1363
Fabrication method Structurally bonded

Application and use in Construction

Type of Material

Format

Properties
