Use
Interior/Exterior -
Applications
Atriums, hotels, shopping centers, facility management sites, office buildings, airports -
Characteristics
Narrow access, multi-positioning outrigger system, advanced jib articulation, easy transport, self-propelling, low weight/ground pressure, hybrid power systems -
Certification
Machinery Directive 2006/42EC, MEWP standard EN 280
The Falcon Spider Atrium Lift was originally invented by Falcon Lifts in the 1970’s and developed ever since.
 |

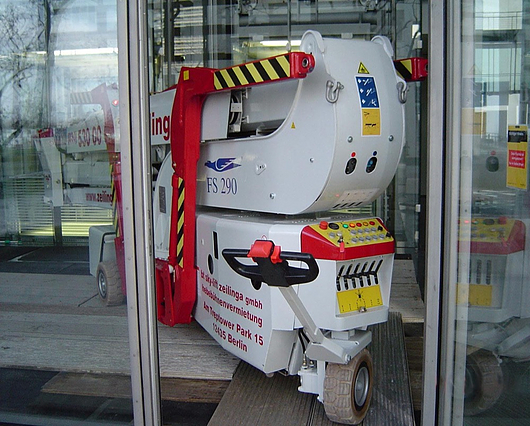

| The wheel lifts are capable of passing through door openings as small as 0,9 m wide and 1,98 m high. |
Safety
Falcon Lifts have an automatic safety and stability management-system, allowing maximum outreach with any combination of outrigger settings, even with the outriggers set up on different levels.
Narrow access
The design of the Spider Lifts is extremely compact in its stowed position; it allows access to job sites where entrance space is limited, and high reach is required.
Multi-positioning outrigger system
The Falcon Spider Lifts are designed for limited setup space and have unique hydraulic outriggers which are independently controlled and multipositional. This allows each outrigger to be individually rotated and articulated in both horizontal and vertical planes. Each outrigger of the Falcon Spider Lift can be placed in three different positions.
Advanced Jib Articulation
Falcon Lifts have an advanced double jib system. The double jib system is the only one of its kind, allowing the operator to rotate over, under and between building obstacles.
Easy Transport and Self – Propelling
The Falcon Spider Lifts have self-propelling battery drive as standard on all models, which is ideal for quiet, fume-free indoor operation. The lifts can load and off-load themselves, by lifting their chassis high enough off the ground with their outriggers, to allow a truck or a trailer to move under them.
The addition of front wheel steering offers maximum maneuverability in limited space and an adjustable rear wheel axle gives maximum stability when driving, and minimum width when passing through narrow openings.
Low Weight & Ground Pressure
The Spider Lifts are designed to have the lowest possible weight to reduce ground pressure, making them applicable for any kind of use.
Designed For Power Properties - Bi-Energy Hybrid
Falcon Spider Lifts are designed for both indoor and outdoor use, therefore a combination of different power sources are available for different needs. Hybrid drive in combination with batteries and combustion engines with both gasoline and diesel is an option, depending on the need of the purpose.
With the bi-energy all power sources can be available in one lift, making it functional for a wide variety of uses.
Details
| Model | FS 370 | FS 420 | FS 290 | FS 320 |
| Working height | 37 m | 42 m | 29 m | 32 m |
| Maximum reach | 16-17 m | 16-17 m | 14-15 m | 14-15 m |
| Linkarm (2 x 3 m) | 6 m | 6 m | 6 m | 6 m |
| Double linkarm | 200° | 200° | 200° | 200° |
| Basket load | 200 kg | 200 kg | 200 kg | 200 kg |
| Aluminum basket | 0,8 x 1,4m | 0,8 x 1,4m | 0,8x1,4m | 0,8x1,4m |
| Basket rotation | +/- 90° | +/- 90° | +/- 90° | +/- 90° |
| Turret rotation | 375° | 375° | 375° | 375° |
Dimensions
| Model | FS 370 | FS 420 | FS 290 | FS 320 |
| Total height | 1,98 m | 1,98 m | 1,98 m | 1,98 m |
| Total length | 8,10 m | 8,25 m | 6,30 m | 7,20 m |
| Total width | 0,9m* | 0,9m* | 0,8m* | 0,8m* |
| Gradability (standard) | 10°/20% | 10°/20% | 5°/10% | 5°/10% |
| Weight approx | 6.900kg* | 7.500kg* | 3.750 kg* | 4.150 kg* |
*Depending on optional equipment
Standard equipment
- Automatic stability & outreach control
- Computer controlled (can-bus)
- Proportional control of all functions
- Self-propelled
- Battery powered with charger 180 Ah
- Double link-arm system
- 375° turret rotation, with integrated stop
- Individual setting of each outrigger
- Electronic checking of the power system (PLC)
- Manual pump system for emergency lowering
- Ability to self-load onto trucks or trailers
- Non-marking solid tires
- Adjustable wheel-axle
- Minimum width only 0.8 m
- Space for tools etc. in basket
- Storage room in chassis with lock
- Wireless remote control of all functions
