Interna-Rail® VUE Aluminum Railing | Hollaender
  1. ArchDaily
  2. Products
  3. Railing / Balustrades
  4. Interna-Rail® VUE Aluminum Railing

Interna-Rail® VUE Aluminum Railing | Hollaender

Interna-Rail® VUE Aluminum Railing Interna-Rail® VUE Aluminum Railing Interna-Rail® VUE Aluminum Railing Interna-Rail® VUE Aluminum Railing Interna-Rail® VUE Aluminum Railing Interna-Rail® VUE Aluminum Railing Interna-Rail® VUE Aluminum Railing Interna-Rail® VUE Aluminum Railing Interna-Rail® VUE Aluminum Railing Interna-Rail® VUE Aluminum Railing
  • Available in

  • Use

    Handrails, guardrails, balconies
  • Applications

    Multifamily residential, industrial, hospitality, educational, institutional, commercial
  • Characteristics

    Transparency, high visibility, cost-effective, ideal in commercial projects
  • Sizes

    Height of top rail above walking surface: 42"
  • Certification

    Meets IBC and ADA codes, U.S. International Building Code 2009/2012/2015/2018 standards specific to guardrails, handrails and infill panel materials including glass

1 BIM Object

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products
Hollaender Logo

Contact manufacturer

Hollaender

Hollaender Logo

Contact manufacturer

Hollaender

More from Hollaender

Website Phone

More about this product

Hollaender Manufacturing Company produces a wide array of architectural railing systems. These hand and guard railing systems can be designed to fit individual projects by engineers at Hollaender.

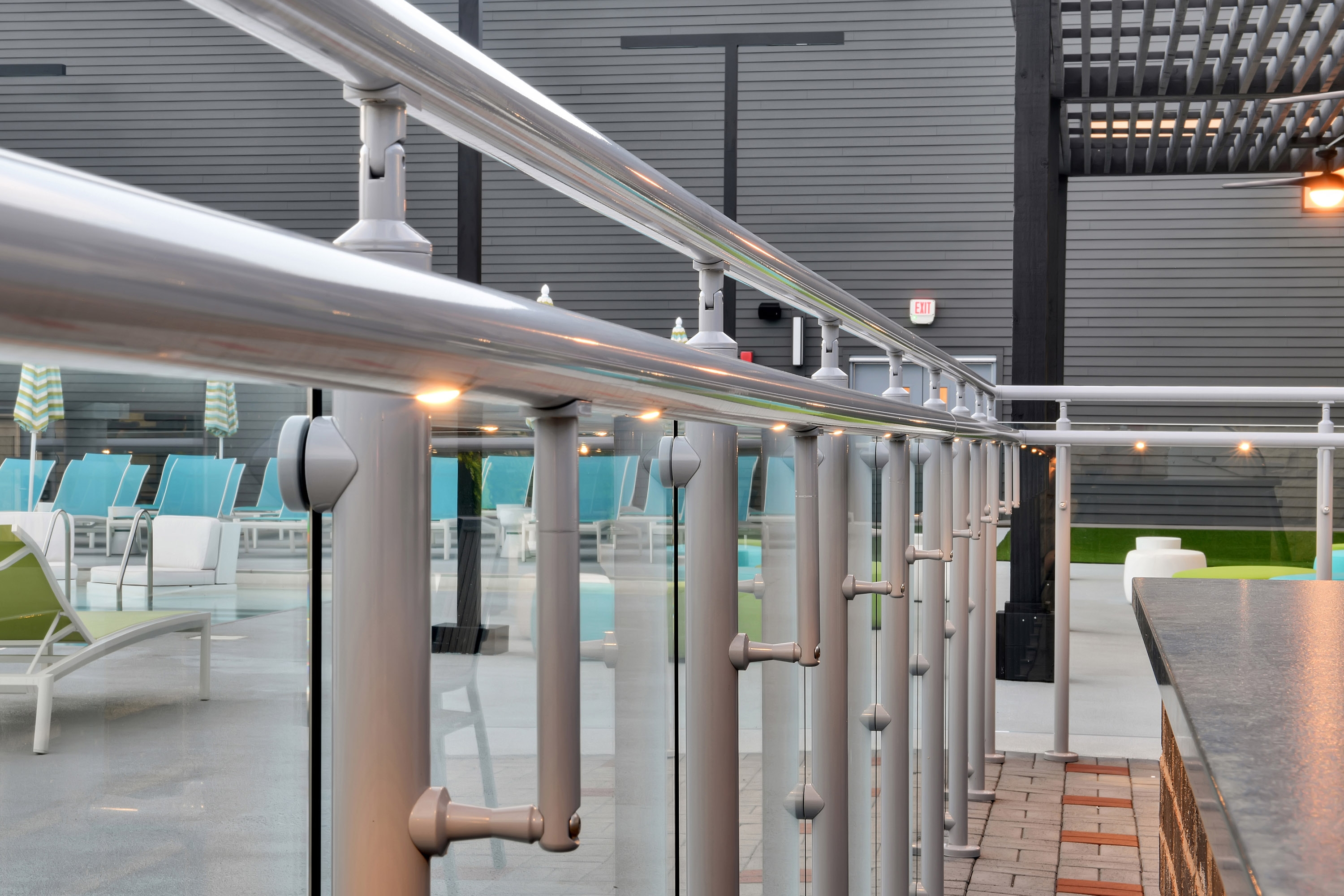

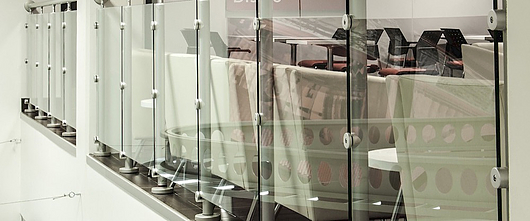

Interna-Rail® VUE railing for glass and acrylic infill panels is a post mounted glass system with glass panels held at the posts, rather than the top and bottom rails. This minimizes the number of horizontal rails required thus maximizing visibility.

Structural Performance

Uniform load Concentrated load
Handrails 50 lbf/ft. applied in any direction 200 lbf. applied in any direction
Top Rails of Guards 50 lbf/ft. applied in any direction Concentrated load of 200 lbf. applied in any direction
Infill Area of Guards Horizontal concentrated load of 50 lbf. applied to 1 sq. ft. at any point in the system, including panels, intermediate rails, balusters, or other elements composing infill area

*Uniform and concentrated loads need not be assumed to act concurrently

Tempered Glass ASTM C1048, Fully Tempered, Condition A, Type 1 (Transparent Flat Glass), Quality Q3. Products shall comply with properties indicated for class, thickness, and manufacturing process that have been tested for surface and edge compression according to ASTM C1048 and for impact strength according to 16 CFR 1201 for Category 2 materials.
Glass infill panel To be 3/8 inch thickness, with maximum spacing between posts to be 4 ft.
Resin panels To be acrylic, 3/8 inch thickness, from Lumicor or other architect approved vendor

Cost Savings

Unlike many other post-captured glass railing systems available, the railing frame of Interna-Rail® VUE is made of anodized aluminum, instead of stainless steel, which has a much lower cost-per-foot. Additional savings are created due to the fact that no holes are required in the glass as all glass panels are supported at the base. The glass itself is 3/8” glass, which is less costly when compared to shoe-mounted structural glass, which must use ½” glass to meet codes.

Materials and Finishes

Posts Aluminum 6005-T5, 1 ½" IPS (48.2 mm O.D.) Schedule 80 Wall (clear anodized)
Rails Aluminum 6063-T6, 1 ½" IPS (48.2 mm O.D.) Schedule 40 Wall (clear anodized)
Fittings Aluminum 6063-T6 (clear anodized)
Base Flanges Cast aluminum
Fasteners Stainless steel 304 alloy

Infills are available in a variety of materials:

  • Tempered glass, either monolithic or laminated
  • Acrylic infill

Finishes come in a range of patterns, colors, and textures. Aluminum systems can be anodized with clear and bronze options, or powder-coated in almost any color.
