Speed Rail® Aluminum Railing | Hollaender

Share
  • Use

    Handrails, guardrails, balconies
  • Applications

    Multifamily residential, industrial, hospitality, educational, institutional, commercial
  • Characteristics

    Easy installation, corrosion resistant, ideal in commercial projects
  • Sizes

    Height of top rail above walking surface: 42"
  • Certification

    Meets IBC and ADA codes, U.S. International Building Code 2009/2012/2015 standards specific to guardrails, handrails and infill panel materials including glass.
Ask for more information / Quote
You have to type a valid name
You have to type a valid email format
You have to type a valid phone number
You have to type a message longer than 10 characters
By sending this quote request you agree to the Terms of use and the Privacy Policy.

More about this product

Hollaender Manufacturing Company produces a wide array of architectural railing systems. These hand and guard railing systems can be designed to fit individual projects by engineers at Hollaender.

Speed-Rail® railing systems are easy-to-install and made of the most corrosive resistant aluminum alloy available on the market. Unlike welded alternatives, the railing systems don't require special expertise to install and can be easily reconfigured.

Features

  • A "Kit of Parts" design allows for on-site assembly and can be easily re-configured
  • The aesthetic is ideal for urban or industrial aesthetic
  • Easy-to-install with no special expertise required
  • Anodized aluminum pipe and aluminum magnesium fittings are extremely corrosion resistant, allowing for the lowest long-term maintenance cost

Structural Performance

Uniform load Concentrated load
Handrails 50 lbf/ft. applied in any direction 200 lbf. applied in any direction
Top Rails of Guards 50 lbf/ft. applied in any direction 200 lbf. applied in any direction
Infill Area of Guards Horizontal concentrated load of 50 lbf. applied to 1 sq. ft. at any point in system, including panels, intermediate rails, balusters, or other elements composing infill area.

*Uniform and concentrated loads need not be assumed to act concurrently

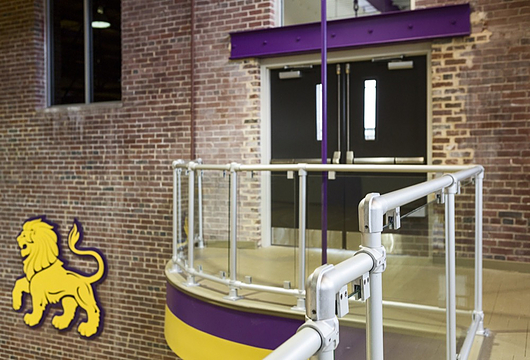

Legacy Charter School | Speed Rail | Hollaender

Materials and Finishes

Posts Aluminum 6005-T5, 1 ½" IPS (48.2 mm O.D.) Schedule 80 Wall (clear anodized)
Rails Aluminum 6063-T6, 1 ½" IPS (48.2 mm O.D.) Schedule 40 Wall (clear anodized)
Fittings Cast aluminum
Base Flanges Cast aluminum
Fasteners Stainless steel 304 alloy

Infills are available in a variety of materials:

  • Tempered glass, either monolithic or laminated
  • Resin panels in both PETG and acrylic
  • Mesh metal panels, perforated or a more exotic pattern in a choice of materials from aluminum to e-coated steel to stainless steel.

Finishes come in a range of patterns, colors and textures. Aluminum systems can be anodized with clear and bronze options, or powder coated in almost any color; Steel infill panels are produced in the same wide array of colors, but are first e-coated to protect against corrosion. Panels can also be supplied in a bright dip.
