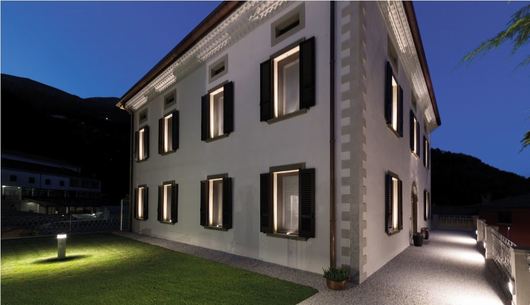

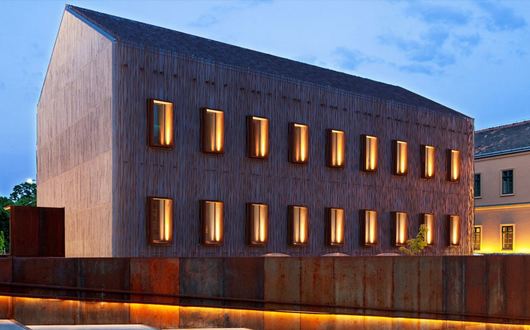

SIMES Shape creates uniform lighting effect around the windows highlighting each frame with a crisp beam of light emphasizing residential, public, historical and artistic façades.
The light fitting uses only one LED and its inclination can be easily adjusted according to the different inclinations of window sills limiting any outward spill of light.

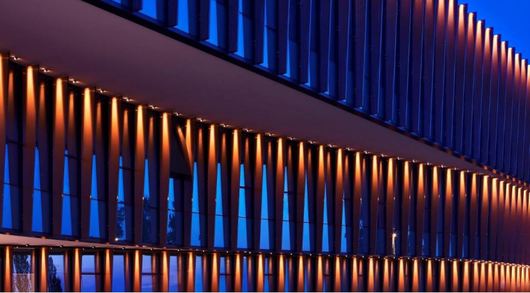

In this installation, Minishape, positioned inside the spaces between the sunblinds, uses a defined and controlled ellipsoidal beam, which allows to illuminate the two sides simultaneously, where normally two lighting bodies would be needed. 319 luminaires have been used in order to illuminate the entire façade, for a total consumption of only 1,900 W. The use of Minishape has greatly reduced costs, allowing the client to buy only half of the lighting fixtures, with a commensurate saving also on the related plant costs and the future costs of maintenance and energy consumption.

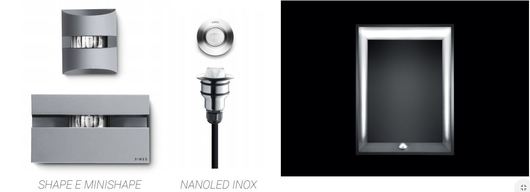

From Shape to Nanoled Inox: the shape miniaturization
Product miniaturization, versatility and superior performances are the main characteristics of Nanoled Inox, which is able to illuminate wide openings with a minimum energy consumption and a high level of functionality.
SIMES Nanoled Stainless Steel is a walk-over in-ground luminaire providing either well defined accent lighting or evocative markers. The main feature of this in-ground luminaire is its extremely reduced dimensions (45 and 60 mm in the two versions). The lighting body is completely manufactured in 316L stainless steel to ensure an, increased corrosion resistance and has no visible screws. Reduced energy consumption and very high lighting performances accomplish the profile of this extraordinary recessed spotlight for the exterior.
- Die-cast EN AB-47100 aluminium (low copper content) housing with high corrosion resistance.Protective cover with clip locking system
- No visible screws
- Clear policarbonate diffuser
- Luminaire hard wired with single neoprene cable
- Silicone gaskets
- Double powdered paint
- Protection class IP65
