OmniMax, through Fabral, supplies metal wall and roofing panels for commercial architecture, agricultural, light commercial and residential applications.
Sustainability
Durable and made from partially recycled content, Fabral metal panels outlast comparable building products and are fully recyclable at the end of its lifespan. Fabral ENERGY STAR®-approved metal panel systems can help earn U.S. Green Building Council Leadership in Energy and Environmental Design (LEED® ) points.
Colors and Finishes
Fabral provides numerous color options; self-weathering zinc, titanium, and other natural metals, brushed or anodized aluminum and a host of vibrant colors offer many options for design.
Concealed Fastener Panels:

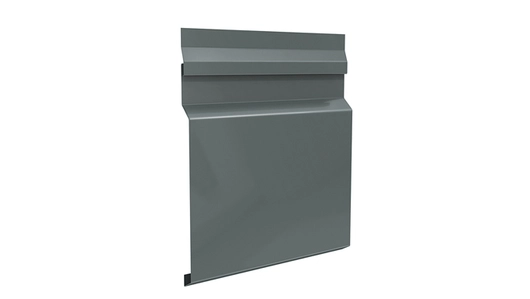

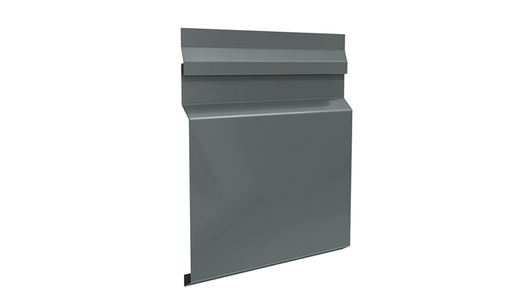

Silhouette HCF Series
With a range of profiles and configurations, this horizontal concealed fastener system meets design requirements for a variety of applications

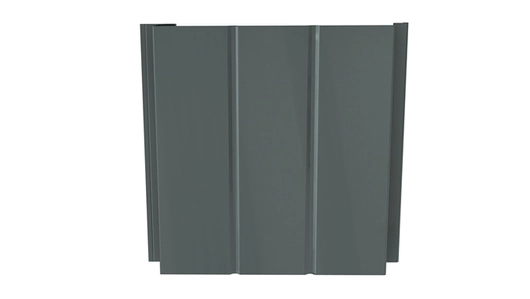

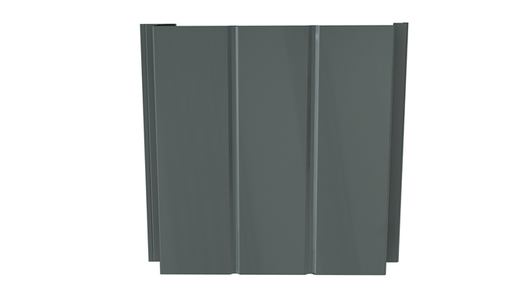

Select Series 12
With a concealed fastener, this plush panel design is suited for long spanning walls, equipment screens, fascia and soffit applications. Panels have also been utilized as a rainscreen system

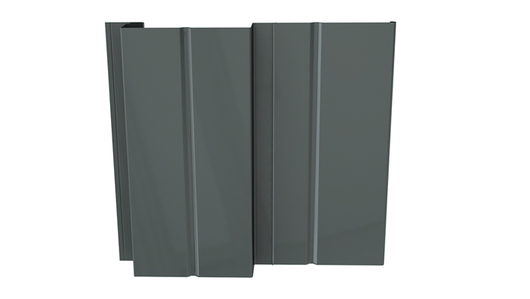

Select Series 612
For long-spanning walls, this panel does not require clips. It is “six up six down” and for vertical use. Functionality is key with this standard panel

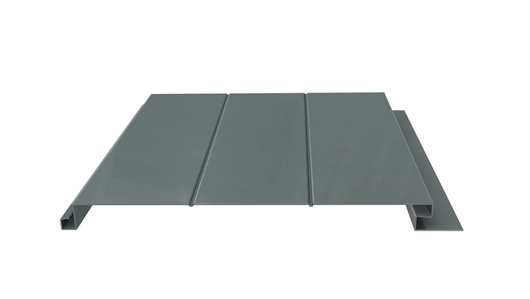

Décor-Flush
This attractive concealed fastener system is ideal for soffit, fascia and vertical wall applications

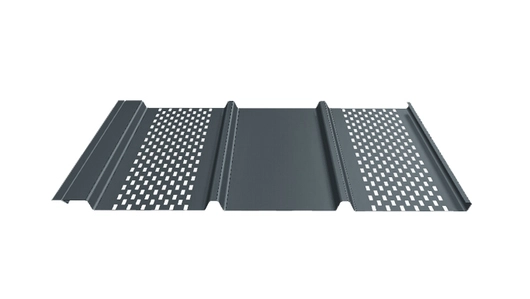

Posi-Lock Soffit
This panel system is ideal for soffit applications
Stand ‘N Seam
This high performance, mechanically seamed roof system satisfies the most demanding applications. The panels can be roll-formed and curved to span an entire roof without end seams.

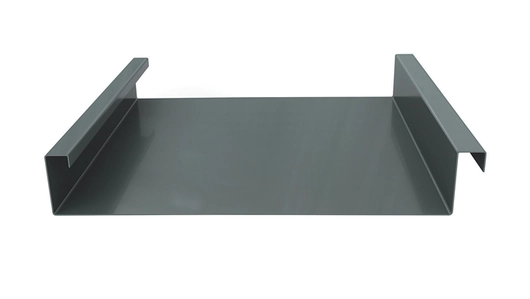

PowerSeam
When curving is required for design, this mechanically seamed structural standing seam roof panel can bend to create the desired look

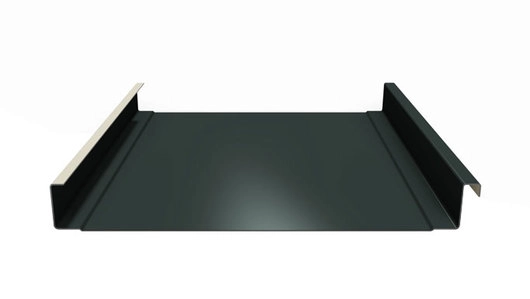

PowerSeam II
With superior strength and spanning capability, Fabral Powerseam II is a high-performance, mechanically seamed standing seam roofing system. With 180-degree machine seaming, field roll forming and the ability to curve to a minimum 10’ radius, Powerseam II delivers performance and value to education, athletic and industrial projects. Shadow lines and stiffening ribs available

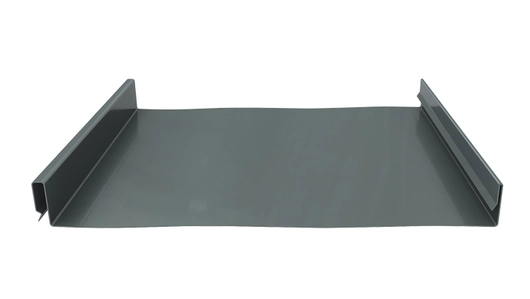

Thin Seam
A snap-together panel for easy installation with no mechanical seaming tool required. Ideal for installation over a solid substrate and open framing

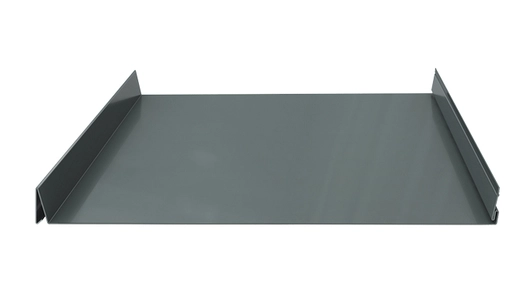

Slim Seam
Economical high performance standing seam peak system. The panel is ideal for installing over a solid substrate and open framing

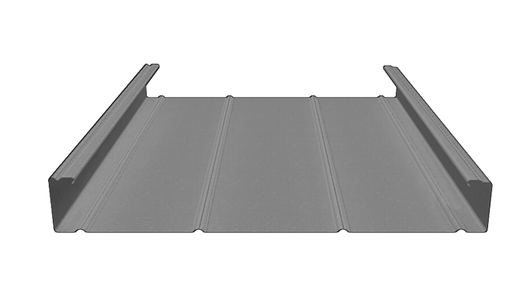

2 ½” SSR
For a classic panel with narrow batten seams, this is available in a variety of gauges and has taper options

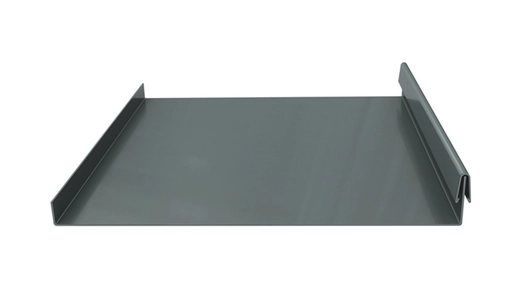

Snap-on Seam/Snap-on Seam High Profile
This two-component design is ideal for roof applications requiring curved panels. It is durable and allows for creativity in design The snap-on seam High-Profile allows for easy installation or removal of panels. This is especially helpful in times of repairs
Snap-on Batten
This snap-on seam panel is wider than a standard panel and is beneficial for a bolder design effect

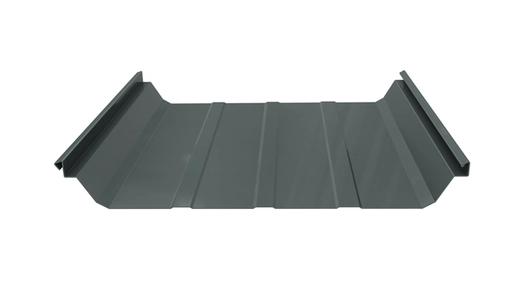

IP Seam 3/IP Snap 3
The trapezoidal panel design is mechanically seamed or snapped and work well for low-slope industrial applications and high performance, pre-engineered metal buildings
Specifications
| | Size | Substrates Available | Features |
| Silhouette HCF Series | - Maximum Panel Length: 20′
- Minimum Panel Length: 2′
| .032” – .050” Aluminum and 24, 22, 20 and 18 Gauge Steel | - Multiple Panel Profiles Designs with both 12″ and 16″ options
- Factory-Applied Sealant
- Mitered Corners Available
|
| Select Series 12 | - Maximum Panel Length: 45′
- Minimum Panel Length: 4′
| .032″ and .040″ Aluminum and 24, 22, 20 and 18 Gauge Steel | - Panel Options Available: 12-R2 (Recommended), 12-R0, 12-W
- Perforation Available
|
| Select Series 612 | - Maximum Panel Length: 45′
- Minimum Panel Length: 4′
| .032″ and .040″ Aluminum and 24, 22, 20 and 18 Gauge Steel | - Panel Options Available: 612-R1 (Recommended), 612
- For Vertical Use Only
- Perforation Available
|
| Décor-Flush | - Maximum Panel Length: 25′
- Minimum Panel Length: 6′
| .032″ Aluminum and 24 Gauge Steel | - For Soffit, Fascia and Vertical Wall Applications Only
- Perforation Available
|
| Posi-Lock Soffit | - Panel Width: 14″
- Maximum Panel Length: 25′
- Minimum Panel Length: 6′
| .032″ Aluminum and 24 Gauge Steel | - Interlocking design with concealed fasteners allows for fast and economical installation
- Fully Vented
- Perforation Available
- Aluminum is available vented with a 9.2% free open area
|
| Stand ‘N Seam | - Maximum Factory Forming Panel Length: 47′
- Minimum Panel Length: 6′
| .032″ and .040″ Aluminum and 24 Gauge and 22 Gauge Steel and Copper | - Highest wind-uplift resistance of any standing seam panel on the market
- Unrestricted thermal movement
- Double lock-seamed side joints
- Factory or field-forming
- Factory applied sealant
|
| PowerSeam | - Maximum Panel Length: Factory Forming Option 47′
- Minimum Panel Length: 6′
| .032” and .040” Aluminum and 24 Gauge and 22 Gauge Steel | - 90 and 180 Degree Seaming Available
- Curving and Tapering Options Available
- Factory or Field-forming
- Factory-Applied Sealant
|
| Thin Seam | - Maximum Panel Length: Factory Forming Option 47′
- Minimum Panel Length: 6′
| .032″ and .040″ Aluminum and 24 Gauge and 22 Gauge Steel and Copper | - Unlimited Thermal Movement
- Factory or Field-forming
- Batten Seam Lines Available
- Tapering Options Available
- Factory-Applied Sealant
|
| Slim Seam | - Maximum Panel Length: 47′
- Minimum Panel Length: 6′
| .032″ and .040″ Aluminum and 24 Gauge and 22 Gauge Steel and Copper | - Unlimited Thermal Movement
- Tapering Options Available
- Factory-Applied Sealant
|
| 2 ½” SSR | - Maximum Panel Length: 51′
- Minimum Panel Length: 6′
| .032″, .040″ and .050″ Aluminum and 24, 22, 20 and 18 Gauge Steel | - Tapering Options Available
- Factory-Applied Sealant
- Unlimited Thermal Movement
|
| Snap-on Seam | - Maximum Panel Length: 47′
- Minimum Panel Length: 6′
| .032″ and .040″ Aluminum and 24 Gauge and 22 Gauge Steel | - Solid Substrate Installation Only
- Tapering Options Available
- Curving Options Available
- Unlimited Thermal Movement
- Factory-Applied Sealant
|
| Snap-on Seam High Profile | - Maximum Panel Length: 47′
- Minimum Panel Length: 6′
| .032″ and .040″ Aluminum and 24 Gauge and 22 Gauge Steel | - Solid Substrate Installation Only
- Unlimited Thermal Movement
- Tapering Options Available
- Factory-Applied Sealant
|
| Snap-on Batten | - Maximum Panel Length: 47′
- Minimum Panel Length: 6′
| .032″ and .040″ Aluminum and 24 Gauge and 22 Gauge Steel | - Solid Substrate Installation Only
- Unlimited Thermal Movement
- Tapering Options Available
- Factory-Applied Sealant
|
| IP Seam 3 | - Maximum Panel Length: 47′
- Minimum Panel Length: 6′
| 24 and 22 Gauge Steel | - Mechanically Seamed Panel
- Factory-Applied Sealant
|
| IP Snap 3 | - Maximum Panel Length: 47′
- Minimum Panel Length: 6′
| 24 and 22 Gauge Steel | - Snap-Fit Panel
- Factory-Applied Sealant
|
For more information regarding specifications click on the links below:
