Fabral Light Commercial Panel Systems | Omnimax

Share
  • Use

    Exterior walls/roofs
  • Applications

    Commercial
  • Characteristics

    Superior durability, weather resistant, ENERGY STAR® certified, superior product longevity
  • Certification

    Local or national certifications and testing certifications. UL 790 Class A Fire Resistance Rating, UL 2218 Class 4 Hail Impact Resistance.
Ask for more information / Quote
You have to type a valid name
You have to type a valid email format
You have to type a valid phone number
You have to type a message longer than 10 characters
By sending this quote request you agree to the Terms of use and the Privacy Policy.

More about this product

OmniMax, through Fabral, supplies metal wall and roofing panels for commercial architecture, agricultural, light commercial and residential applications.

Fabral products have been used in projects ranging from Langley Air Force Base buildings and the Harvey B. Gantt Center for African American Arts and Culture to Lady Bird Johnson Middle School in Irving, Texas, the largest net-zero school in the United States.

Sustainability
Durable and made from partially recycled content, Fabral metal panels outlast comparable building products and are fully recyclable at the end of its lifespan. Fabral ENERGY STAR®-approved metal panel systems can help earn U.S. Green Building Council Leadership in Energy and Environmental Design (LEED® ) points.

Colors and Finishes
Fabral provides numerous color options; self-weathering zinc, titanium, and other natural metals, brushed or anodized aluminum and a host of vibrant colors offer many options for design.

Panels:

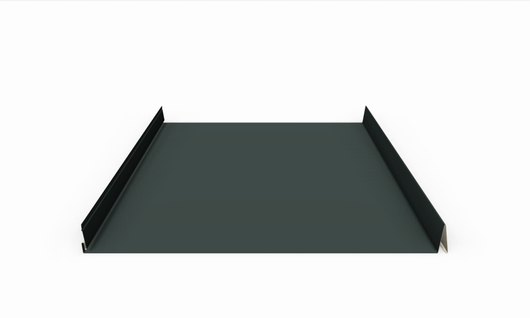

1 1/2" SSR Series
undefined
A classic-style metal roof which protects against all weather conditions; is fireproof and durable while delivering value, beauty, and performance.

Horizon S series
undefined
This standing seam panel with a snap-lock design features pre-punched fastener slots. Standard shadow lines enhance the appearance of this 26 gauge panel.

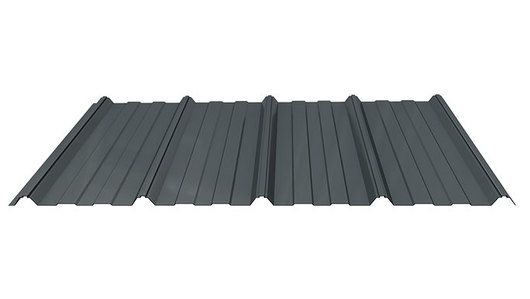

GrandRib 3/GrandRib 3 Plus
undefined
A versatile panel, available in a variety of colors. The panels have clean traditional lines and are manufactured from structural steel.

The GrandRib 3 Plus has a G-90 coating for better weather performance and durability. It is also is a thicker metal panel, increasing strength and appearance.

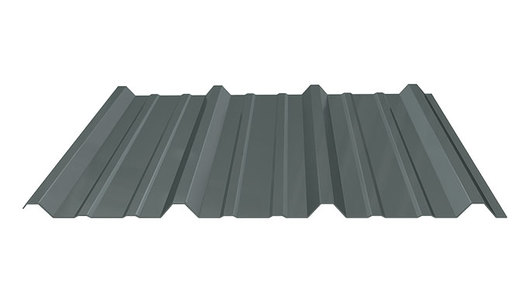

Mighti-Rib
undefined
The 26 gauge steel of Mighti-Rib creates a strong panel that is enhanced by a purlin bearing leg. Minimal maintenance and easy installation are key.

1 1/4″ Corrugated
undefined
Minimal maintenance and easy installation are key aspects of this panel.

2 1/2″ Corrugated
undefined
For light commercial buildings with a minimum pitch of 2½:12. Available plain or finished (26 gauge only) with the high-performance Enduracote paint system.

Specifications:

Minimum pitch Coverage Substrates Features
1 1/2" SSR Series 1:12 16” with 1 1/2” seam height
  • 24 gauge high strength galvalume steel
  • Concealed clip fastening system allows for thermal movement
  • Factory applied sealant
  • Shadow lines standard to enhance appearance (can be ordered without shadow lines)
Horizon S series 3:12 16” with 1” seam height
  • 26 gauge high strength galvalume steel
  • Factory applied sealant
  • Shadow lines standard to enhance appearance
GrandRib 3 2½:12 36” with ¾” rib height
  • 29 gauge structural quality full-hard galvanized steel
  • G60 galvanized
  • 26 gauge high strength galvalume steel
  • .016” aluminum
  • Anti-Siphon sidelap design
  • Excellent wind uplift and snow load ratings
GrandRib 3 Plus 2½:12 36” with ¾” rib height
  • 29 gauge structural quality full-hard galvanized steel
  • G90 galvanized
  • Anti-Siphon sidelap design
  • Excellent wind uplift and snow load ratings
Mighti-Rib 1:12 36” with 1 ¼” rib height
  • UL 580 Class 90 Uplift Test Rating
  • High-performance Enduracote paint system
  • Also known as PBR
1 1/4″ Corrugated 2½:12 24” with ¼” rib height
2 1/2″ Corrugated 2½:12 24” with ½” rib height
  • Available plain or finished
