OmniMax, through Fabral, supplies metal wall and roofing panels for commercial architecture, agricultural, light commercial and residential applications.
Sustainability
Durable and made from partially recycled content, Fabral metal panels outlast comparable building products and are fully recyclable at the end of its lifespan. Fabral ENERGY STAR®-approved metal panel systems can help earn U.S. Green Building Council Leadership in Energy and Environmental Design (LEED® ) points.
Colors and Finishes
Fabral provides numerous color options; self-weathering zinc, titanium, and other natural metals, brushed or anodized aluminum and a host of vibrant colors offer many options for design.
Exposed Fastener Panels:
Hefti-Rib
Superior strength-to-weight ratio and spanning capabilities set this panel apart. It adds texture and strength to design and can act as a canvas on the exterior
V-Beam
The strength and spanning capabilities make this panel an excellent choice for dramatic roof and wall applications
4″ Rib
Serving as an industry standard, these heavy-duty panels are primed for intense industrial and lagging applications
Deep Rib II
This 2” panel design with a flat top rib for bold design applications can be used in vertical or horizontal applications with mitered corners available
Deep Rib IV
The bold 4” panel creates a dynamic design appeal. With creative versatility and protective platforms, the panel can be custom curved
1/2″ Corrugated
This is an economical and versatile wall and roof panel with curving capabilities

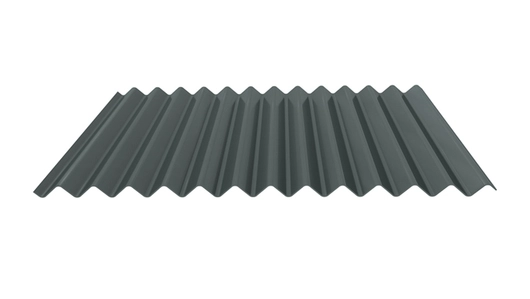

7/8” Corrugated
The construction of corrugated panels allows them to follow every curve of your design where needed when being installed vertically. Suitable for use on both wall and roof applications.
Mighti-Rib
This traditional panel design is a commercial and industrial roof, wall or fascia. It provides durability for the demands of structures
Ultra-Rib
With the strength and integrity of metal, this durable 1 ½” high panel is suited for commercial and industrial applications
U Panel
For industrial designs, this roof and wall panel is a durable and environmentally conscious option
PBR/PBU
Produced in Texas, these 26 Gauge steel panels offer a great solution for light commercial and self-storage applications.
FabRib
An economical and versatile wall or roof panel with bold design appeal
Specifications
| | Size | Substrates Available | Features |
| Hefti-Rib | - Maximum Panel Length: 45′
- Minimum Panel Length: 6′
| .032″, .040″ and .050″ Aluminum and 26, 24, 22, 20 and 18 Gauge Steel | - Vertical and Horizontal Applications
- Mitered Corners Available
- Curving Options Available
- Panel Variations HR-288 and Reverse Run Hefti-Rib I are Available
|
| V-Beam | - Maximum Panel Length: 45′
- Minimum Panel Length: 6′
| .032″, .040″ and .050″ Aluminum and 24*, 22, 20 and 18 Gauge Steel | - Vertical and Horizontal Applications
- Mitered Corners Available
- Field Curving Options Available
|
| 4″ Rib | - Maximum Panel Length: 45′
- Minimum Panel Length: 6′
| .032″, .040″ and .050″ Aluminum and 22, 20 and 18 Gauge Steel | - Vertical and Horizontal Applications
- Mitered Corners Available
- Panel Variation 8″ Rib is Available
|
| Deep Rib II | - Maximum Panel Length: 45′
- Minimum Panel Length: 6'
| .032″, .040″ and .050″ Aluminum and 22, 20 and 18 Gauge Steel | - Vertical and Horizontal Applications
- Mitered Corners Available
|
| Deep Rib IV | - Maximum Panel Length: 45′
- Minimum Panel Length: 6′
| .032″, .040″ and .050″ Aluminum and 22, 20 and 18 Gauge Steel | - Vertical and Horizontal Applications
- Mitered Corners Available
- Curving Options Available
- Inverted Panel Option Available
|
| 1/2″ Corrugated | - Maximum Panel Length: 45′
- Minimum Panel Length: 6′
| .032″, .040″ and .050″ Aluminum and 26, 24, 22, 20 and 18 Gauge Steel | - Vertical and Horizontal Applications
- Mitered Corners Available
- Curving Options Available
|
| 7/8” Corrugated | - Maximum Panel Length: 45′
- Minimum Panel Length: 6′
| .032″, .040″ and .050″ Aluminum and 26, 24, 22, 20 and 18 Gauge Steel | - Vertical and Horizontal Applications
- Mitered Corners Available
- Curving Options Available
|
| Mighti-Rib | - Maximum Panel Length: 45′
- Minimum Panel Length: 6′
| 26 and 24 Gauge Steel | - Vertical and Horizontal Applications
- Mitered Corners Available
- Panel Variations R-Panel and W-Panel Are Available
|
| Ultra-Rib | - Maximum Panel Length: 40′
- Minimum Panel Length: 6′
| .032″ Aluminum and 26, 24 and 22 Gauge Steel | - Vertical and Horizontal Applications
- Mitered Corners Available
|
| U Panel | - Maximum Panel Length: 45′
- Minimum Panel Length: 4′
| 26 Gauge Steel | - Vertical and Horizontal Applications
- Mitered Corners Available
- 6″ On Center Rib Spacing
- Panel Variation PBU Panel with Purlin Bearing Leg is Available
|
| PBU | - Maximum Panel Length: 45′
- Minimum Panel Length: 4′
| 26 Gauge Steel | - Vertical and Horizontal Applications
- Mitered Corners Available
- Purlin Bearing Leg
- 6″ On Center Rib Spacing
|
| FabRib | - Maximum Panel Length: 30′ steel, 17′ aluminum
- Minimum Panel Length: 6′
| .032″, .021″ and .018″ Aluminum and 29, 26 and 24 Gauge Steel | - Vertical and Horizontal Applications
- Mitered Corners Available
|
For more information regarding specifications click on the links below:
