Exterior FlexShades | Draper
Navigate products using your keyboard
  1. ArchDaily
  2. Products
  3. Blinds / Mosquito Nets / Curtains
  4. Exterior FlexShades

Exterior FlexShades | Draper

Share
  • Use

    Exterior shading systems
  • Applications

    Commercial, Residential, Educational, Corporate, Cultural and Hospitality
  • Characteristics

    Manufactured in the USA, retractable, protects from harsh sunlight, available in three mechanisms: clutch-operated, crank-operated and motorized; adjustable according to sun conditions & sensitive to wind and ice
  • Colors

    Hardware finish choices: silver (standard), white, black, ivory, or charcoal bronze. Custom powder coat colors available. Fabrics available in a wide range of colors.
  • Sizes

    Available in sizes up to 11' x 11' (335 cm x 335 cm), depending on fabric selection.
  • Guarantee

    10 years; 5 years on electronic accesories and motors

Supplementary Files

Ask for more information / Quote
You have to type a valid name
You have to type a valid email format
You have to type a valid phone number
You have to type a message longer than 10 characters
By sending this quote request you agree to the Terms of use and the Privacy Policy.

More about this product

Draper's Exterior FlexShade® is available in three mechanisms; motorized, clutch-operated and crank-operated.

1. The Motorized Exterior FlexShade® is operated using a simple wall switch or remote to lower and raise the window shades. It is ideally applied in commercial and institutional settings and can be quickly and quietly raised or lowered to the desired position to block unwanted sunlight.

Features:

  • Available with square or curved headbox.
  • Square headbox size is 3-5/8" wide x 3-5/8" high (92 mm x 92 mm).
  • Curved headbox size is 3-5/8" wide x 3-5/8" high (92 mm x 92 mm).
  • Weighted hem bar to stabilize shade during operation.
    Radio control motor (standard).

    Exterior FlexShades

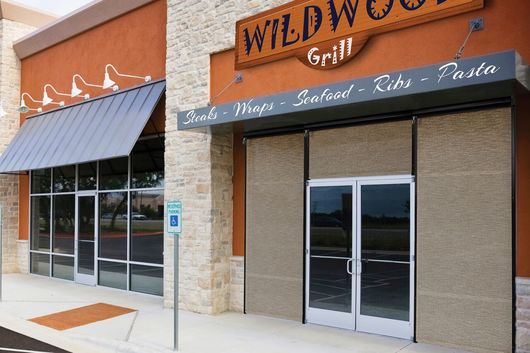

2. The Exterior FlexShade® Clutch-Operated window shade provides outdoor solar control in a variety of areas. It creates useful outdoor space in restaurants, commercial settings or swimming pool and patio areas by providing relief from harsh sunlight. As an exterior shade, it prevents most of the solar heat from entering the building thus allowing for a more comfortable indoor workspace environment.

Features:

  • Bead chain clutch operator mounted right or left-hand operation.
  • Clutch available in white (standard) or black.
  • Universal mounting brackets and spring-loaded idler end provide ease of installation.
  • Weighted hem bar to stabilize shade during operation. undefined

3. The Exterior FlexShade® Crank-Operated window shade provides added security by limiting unauthorized persons from operating them. The crank offers precision control for quick and easy adjustments to raise or lower the window shades to the desired height. This exterior shade provides maximum solar heat reduction and creates a comfortable indoor workspace for restaurants and commercial settings.

Features:

  • Detachable crank handle (white) available in 48" (122 cm), 60" (152 cm) (standard) and 72” (183 cm) lengths.
  • Weighted hem bar stabilizes shade during operation.
  • Side channels or cable guides available for secure operation in wind (secures hem bar only, not the fabric)

undefined

All three Exterior FlexShades® are available in sizes up to 11' x 11' (335 cm x 335 cm), depending on fabric selection. See all fabric options.

Hardware finish choices: silver (standard), white, black, ivory, or charcoal bronze. Custom powder coat colors available.

Side channels or cable guides are available for secure operation in wind (secures the hem bar only).

Draper Roller Shades are manufactured in the USA using primarily USA-woven fabrics from Phifer and Mermet, ensuring a simple and direct supply chain that gives Draper maximum control over fast deliveries and product availability.
