DesignRail® Aluminum Railing Systems with Picket Infill | Feeney

  • Use

    Railing frame system
  • Applications

    Commercial and Residential
  • Characteristics

    Durable powder-coated finishes offer superior color retention, impact resistance, and weather protection. Available in an assortment of colors that meet rigorous AAMA-2604 coating specifications. Low maintenance with long use cycle: no rusting, cracking, peeling, or repainting.

1 Supplementary File

More about this product

DesignRail® pre-engineered, component based, aluminum railing frame systems combine the durability of aluminum with the innovative design details that assure structural integrity while drastically reducing long term maintenance expenses. Our systems are easy-to- install, attractive and cost effective.

undefined

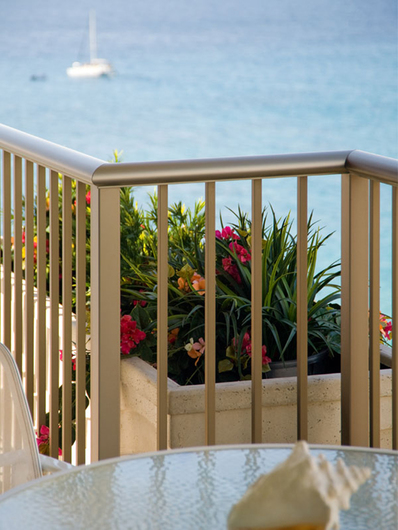

DesignRail® Aluminum Railing Systems with Picket Infill by Feeney is available in 13 standard colors, and over 200 custom colors. Top rails come in 6 different styles. Infill: 3/42 square aluminum pickets that come cut-to- size, ready-to- install. Pickets come powder coated to match the frame color and are secured to the Top Rail Insert and Bottom Rail with screws.

Characteristics

  • Durable powder-coated finishes offer superior color retention, impact resistance, and weather protection.
  • Available in an assortment of colors that meet rigorous AAMA-2604 coating specifications.
  • Low maintenance with long use cycle: no rusting, cracking, peeling, or repainting.
  • Detail drawings and 3-part specifications available, along with toll-free design assistance and technical support.
  • Product contains recycled materials.

Aluminum railing systems are available in a wide range of standard and custom powder coat finishes with a variety of Top Rail design options as well as picket, glass or cable infill options. Click on one of the components below to learn more about Feeney's versatile aluminum railing systems.

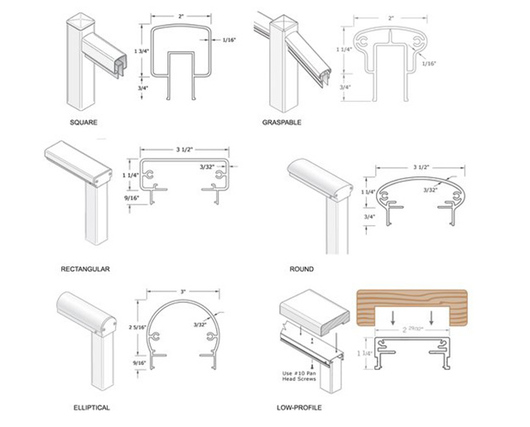

Top Rails

undefined

Top Rails come in 6 styles and are sold in 10 and 20 foot lengths that can be trimmed to size in the field.

Square Top Rails (Series 150) and Graspable Top Rails (Series 100) are attached to the faces of the posts using Rail Connecting Blocks (RCBs).

Rectangular, Round, Elliptical, and Low-Profile Top Rails (Series 200, 300, 350 & 450) rest on the tops of the posts and are secured with stainless steel screws. Hand Rails (see Additional Items) with extensions are available as an accessory item to meet ADA and code hand rail requirements.

Colors

Durable, powder coated finishes adhere to AAMA-2604 coating specifications for superior color retention, impact resistance, and weather protection. Available in 13 standard colors and over 200 custom colors.

undefined

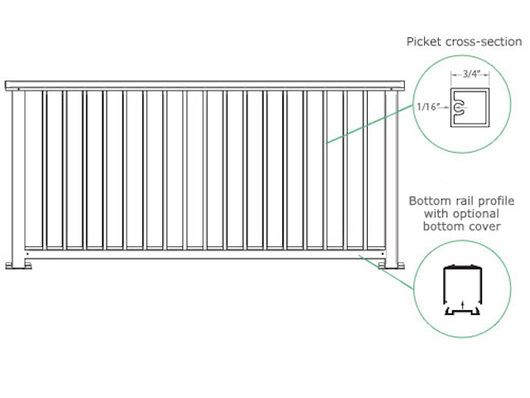

In-fill

Vertical 3/4" square aluminum pickets come cut-to-size, ready-to-install. Pickets come powder coated to match the frame color and are secured to the Top Rail Insert and Bottom Rail with screws.

Other infill options are available: glass, horizontal CableRail, vertical CableRail.

undefined
