Apavisa's Archconcept Tiles Collection brings new patterns in stone, metal and cementitious finishings, improving the role of porcelain in the design of interiors and exteriors. With new three-dimensional attributes, this collection reinterprets the style, elegance, and sophistication of bygone times.
The result is a varied collection of remarkable reliefs and surfaces, allowing the creation of the most diverse range of proposals in placement, enriched by the unique qualities and perfection of porcelain.
It has also improved with the collection Archconcept placement processes, which provide depth and intensity to the spaces, ensuring the flexibility of any elevation. Archconcept is a new approach to architecture. ..Archconcept is “architecture without limits”.
Wave

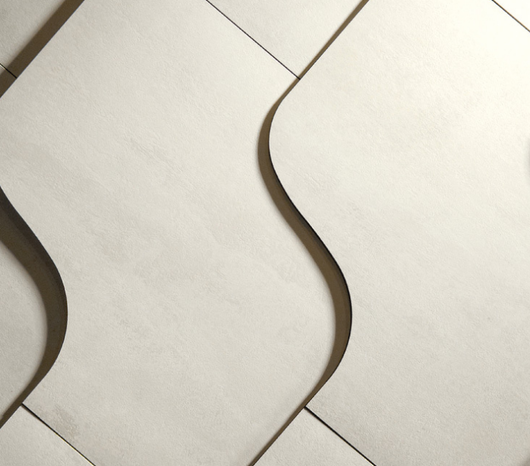

Curve
Bump
CHARACTERISTICS:
- Durable Temperature Shock Resistance
- Frost Proof
- Chemical Resistant
- Metal, cement and stone available finishes
- 3D Surfaces
SPECIFICATIONS:
Styles & Dimensions:
Diagonal Up:
- 89,3 x 89,3 cm - 35.16” x 35.16”
- 59,4 x 59,4 cm - 23.39” x 23.39”
Corner Up (1, 2, 3 or 4 corners can be pulled up):
- 89,46 x 89,46 cm - 35.22” x 35.22”
Quarter Up:
- 14,74 x 89,1 cm - 5.81” x 35.08”
Curve:
- 14,75 x 59 cm - 5.87” x 23.23” (white, anthracite, moss, vision, grey, ivory, beige, black)
- 14,74 x 89,1 cm - 5.87” x 35.08”
- 22,215 x 88,6 cm - 8.75” x 34.89” (white, grey, beige, brown)
- 29,675 x 118,8 cm - 11.69” x 46.78” (white, anthracite, moss, vision, grey, ivory, beige, black)
Nanocurve:
- 14,75 x 59 cm - 5.87” x 23.23” (white, anthracite, moss, vision, grey, ivory, beige, black)
- 22,215 x 88,6 cm - 8.75” x 34.89” (white, copper, titanium)
Bend:
- 29,2 x 59,55 cm - 11.50” x 23.45”
- 44 x 89,46 cm - 17.33” x 35.23”
-59 x 119,3 cm - 23.23” x 46.98”
Nanobend:
- 29,2 x 59,55 cm - 11.50” x 23.45”
- 44 x 89,46 cm - 17.33” x 35.23”
Wave:
- 29,2 x 59,55 cm - 11.50” x 23.45” (white, copper, black)
Nexus:
- 60x60cm (white, copper, black)
Pulpis Gold /Silver:
- 22,215 x 88,6 cm - 8.75” x 34.89” (gold, silver)
Fiberglass:
- 60X60cm (bronze)
Properties:
- Length &; Width : +/- 0.2%
- Surface Flatness : +/- 0.2%
- Water Absorbtion : +/- 0.1%
- Bending Resistance : 45 N/mm2
- Resistance to deep Abrasion : 131 mm3
For more information please visit Apavisa's page in our Materials Catalog, or go to www.apavisa.com/en
