Solarlux GmbH has been a specialist in flexible window and facade solutions for over 40 years. Their glass canopy range offers aluminium and wood systems, adaptable to a wide range of architectural styles and structural configurations.
 | |

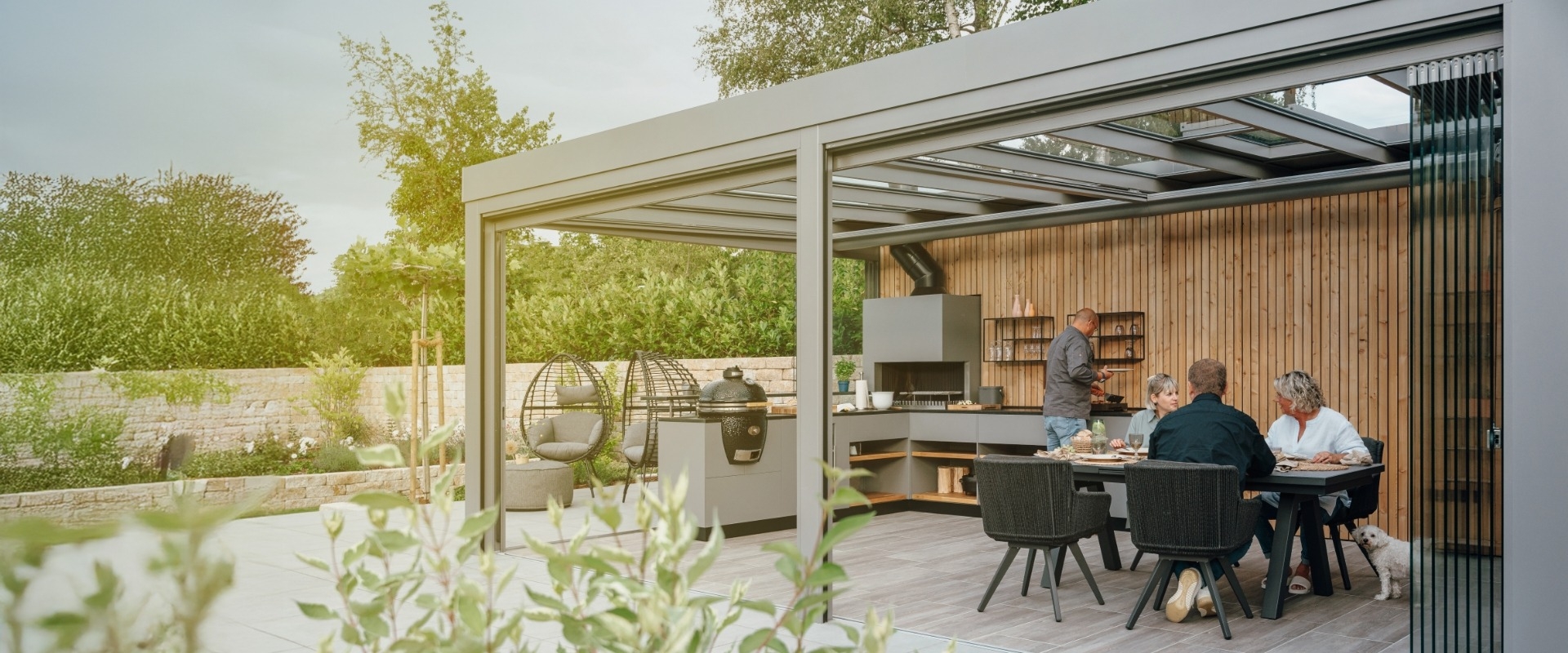

| The Solarlux SDL Acubis glass canopy system is a non-insulated aluminium profile system with internal structural members. The profile was specially designed for this application and is used to achieve ultra-slim, minimalist designs. | |
| Material | Aluminium |
| Thermal insulation | Non-insulated |
| Roof pitch | 2° |
| Rafters | Slim sight lines, internal structural members |
| Cubic design | Cubic design |
| Configuration | Stand-alone or wall-mounted extension |
| Drainage | Gutter or concealed |
 | |
| The glass canopy system SDL Alerio is a non-insulated aluminium profile system with internal structural members. The profile was specially designed for this application and is used to achieve ultra-slim, minimalist designs. | |
| Material | Aluminium |
| Roof pitch | 5° – 20° |
| Rafters | Slim sight lines, internal structural members |
| Drainage | Gutter or concealed |
| Accessories | Heating, LED lighting, roof, and wall awnings |
| Vertical glazing | Suitable for installation of glass panels |
 | |
| The SDL Atrium Plus is a non-insulated aluminium roof system suited to large spans and complex custom shapes. When combined with other Solarlux systems, it can be configured as a fully enclosed glasshouse. | |
| Material | Aluminium |
| Maximum span | 5,720 mm |
| Maximum roof depth | 6,370 mm |
| Ventilation | Permanent roof ventilation system |
| Accessories | Heating, LED lighting |
| Drainage | Concealed |
 | |
| The Solarlux SDL Aura glass canopy system is a wood-aluminium profile system with internal structural members. It is suitable for use in open and partially closed glass canopies,non-insulated wintergardens, and glasshouses. | |
| Material | Wood, aluminium |
| Thermal insulation | Non-insulated |
| Sustainability woods | FSC® and PEFC-certified |
| Rafters | Slender sight lines |
Solarlux Color Options
Solarlux standard colour options include around 30 RAL colours, available in matt and gloss finishes, at no extra cost. This allows every bi-folding door to match the building’s interior and exterior design.
 |
