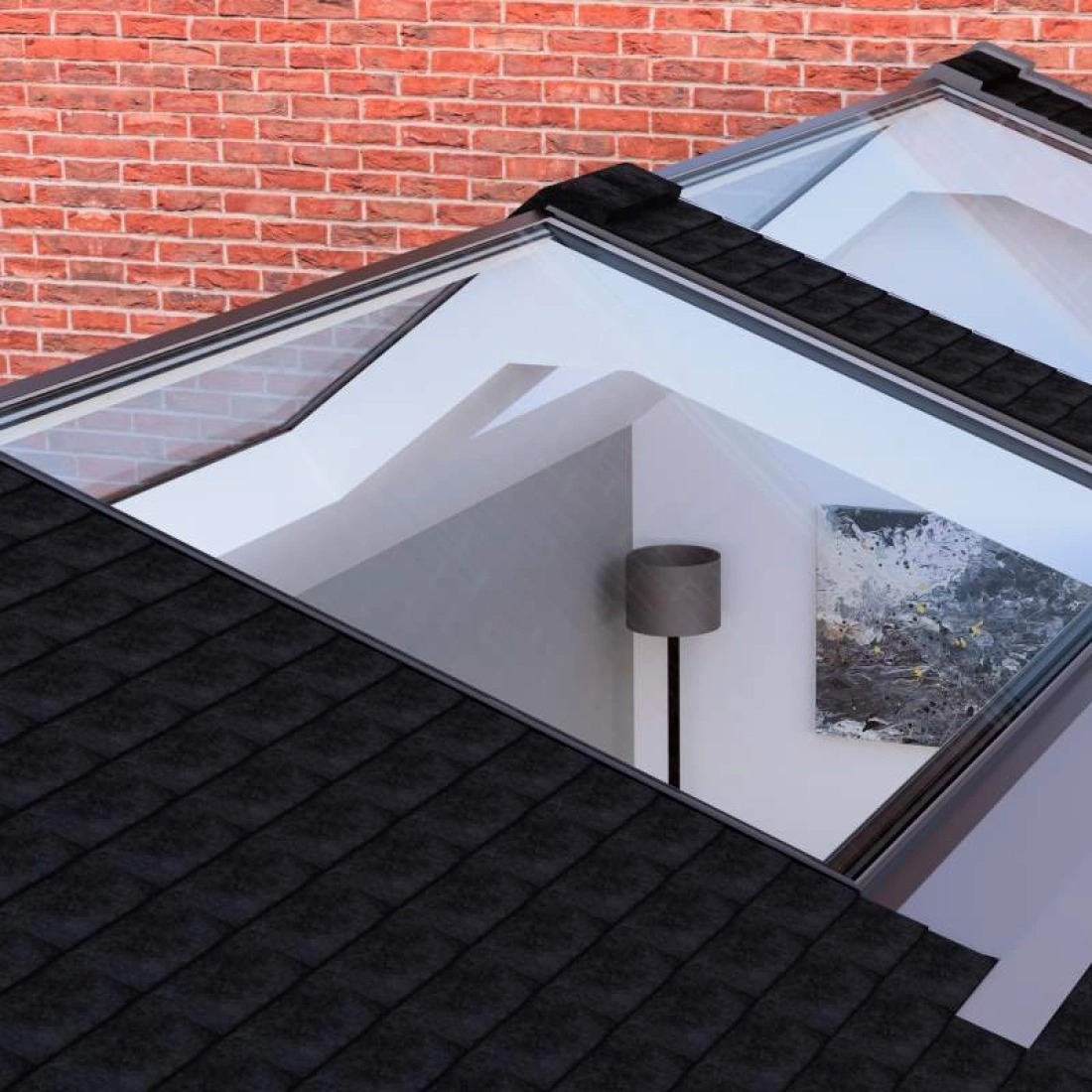

Glazing Vision is a manufacturer of architectural glass skylights engineered to enhance spaces through natural light and minimalist design. Glazing Vision offers the PitchRidge Roof Window, a fixed roof window designed to seamlessly integrate with pitched tiled roofs while maximizing daylight and minimizing visible framework. This product features a pair of glass panes joined at the ridge with clean lines and durable construction, creating a minimalist roof opening that enhances interior spaces.
Benefits and Features
- Minimal internal framework for uninterrupted sky views
- Fixed configuration for reliable daylight access
- Dual-hardness EPDM gaskets for thermal isolation
- Robust aluminum framing for long-lasting performance
- Configurable sizes to suit diverse pitched roof applications
- Optional easy-clean coating for reduced maintenance
- Available in special colors and with appropriate flashing kits
Dimensions
| Min span (each side) | ~4.5” |
| Max span (each side) | 160” |
| Min width | ~2.5” |
| Max width | 157" |
| Min roof pitch | 3-1/4” : 12” |
| Max roof pitch | 20-3/4” : 12” |
Design and Performance
The PitchRidge Roof Window is engineered for pitched roof installations, providing a contemporary roof opening that increases natural light without operable elements. Its refined design reduces internal sightlines to deliver a clean visual connection to the sky, ideal for both residential and architectural projects requiring framed and unobstructed daylight.
Structure and Integration
This roof window integrates two glass panes at the roof’s ridge using high-quality angles and seals to maintain weather performance and thermal efficiency. The aluminum frame includes thermal break details that help isolate interior spaces from external temperature effects, contributing to comfort and energy performance.
Optional Enhancements
Several optional features are available to tailor the PitchRidge Roof Window to project needs, including coatings that improve glass cleanliness and special color finishes to match specific design schemes. Flashing kits are offered to facilitate smooth installation with roofing materials.
