Pakkred Office / Geodesic Design Co.,Ltd.

  • 01:00 - 28 March, 2014
Pakkred Office / Geodesic Design Co.,Ltd.
© Pirak  Anurakyawachon
© Pirak Anurakyawachon

© Pirak  Anurakyawachon © Pirak  Anurakyawachon © Pirak  Anurakyawachon © Pirak  Anurakyawachon + 32

Pakkred Office  / Geodesic Design Co.,Ltd., © Pirak  Anurakyawachon
© Pirak Anurakyawachon

Located more than 20 years in Bangkok metropolis, Thailand, Geodesic Design Co.,Ltd. had been looking for a place to be home, where architectural design studio co-exist with green lawn, ray of sunshine and may be, shade of a tree. We found the place 18 kilometers toward north of the heart of Bangkok, in Pakkred, Nonthaburi.

© Pirak  Anurakyawachon
© Pirak Anurakyawachon

A 16 metre x 24 metre plot of land is oriented North-South, on the east side is an unpleasant vacant lot, on the west is a 10 years old house with lush small garden, on the street side, an old rain tree branches over the full width of the plot. The new building was set on the plot's east side, behind the tree, created an open space on the west side. The tree and the open space become the first and second element of our architecture.

© Pirak  Anurakyawachon
© Pirak Anurakyawachon

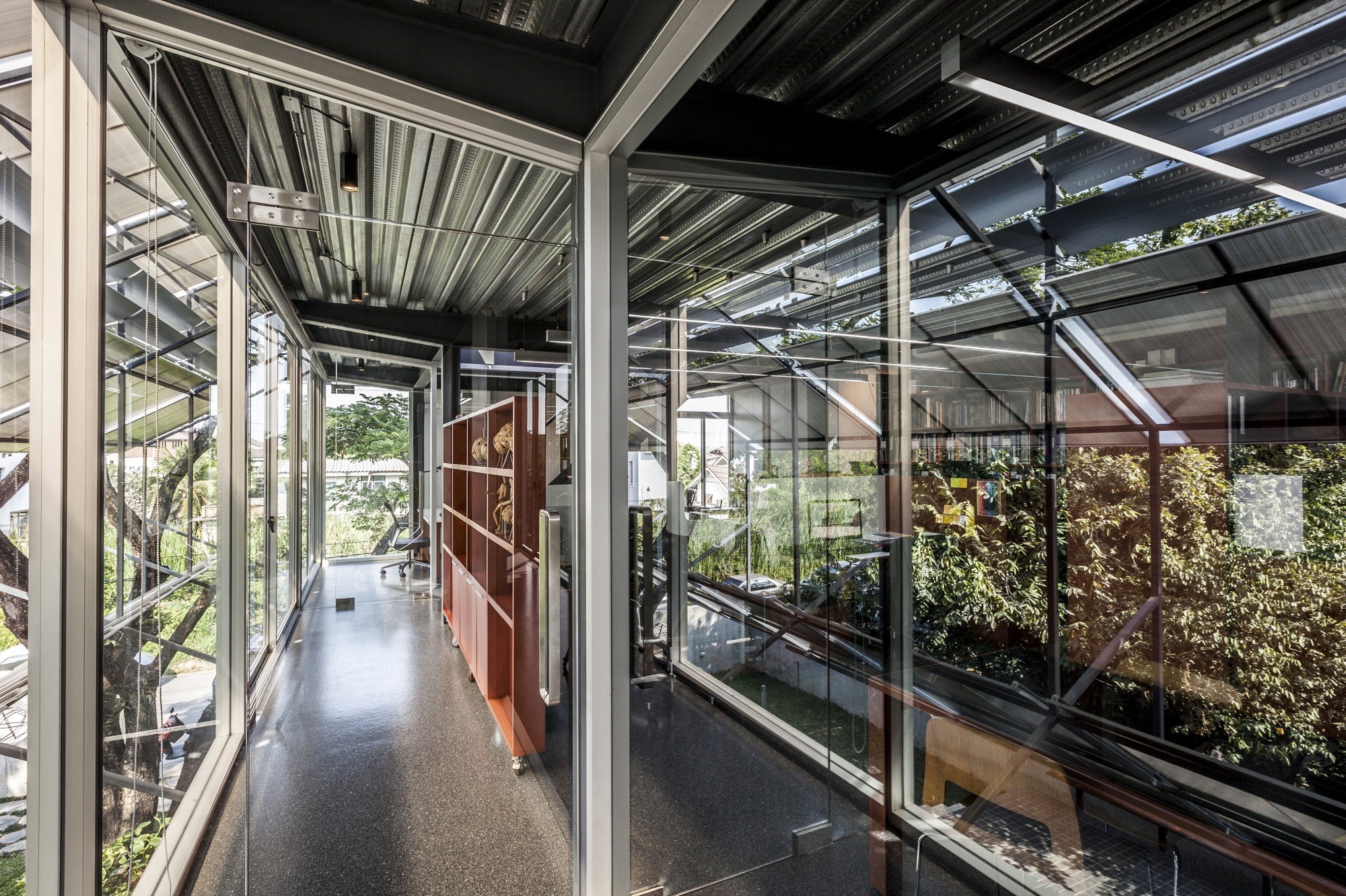

The building is small, room’s size is dictated by a 4 meters span and a standard 6 meters long steel parts, most of interior walls are clear glass to make rooms feel larger, east side wall is solid to block the view of adjoining vacant lot, to reach out to outdoor space, large opennings filled west-side elevation which is 6 metre high by 16 metre long, facing afternoon sun.

Which brought the third element to the design, system of sunshades to protect the building from heat and extreme light, while open to the view.

© Pirak  Anurakyawachon
© Pirak Anurakyawachon

Lesson from designing a house 10 years ago was applied as the forth element of the design. The ground floor was raised 1.2 m. to create crawl space that would be use as storage and for maintenence, air flow would disperse heat, shaded ground would be increasingly cooler by times. Traditional Thai house has raised floor to avoid inundation. The design keep this is mind in case of Thailand facing severe flood likes the 2011 monsoon season again.

© Pirak  Anurakyawachon
© Pirak Anurakyawachon

Others design choices followed these main element, steel skeleton and steel-deck flooring kept the construction site clean and shorten the time the tree was disturbed. Solid walls were made of lightweight bricks and concrete covered wire mesh panel with foam core. Exposed metal floor planks became open ceiling. All windows were low-emissivity glass. To experiment with solar energy, solar panel feed electricity directly into our usage. ( 1 U.S.$ saving daily /10 years return ).

Few hours were gain from not getting stuck in big city traffic everyday, that times were spent sitting on our terrace, under the tree, sipping some beers.

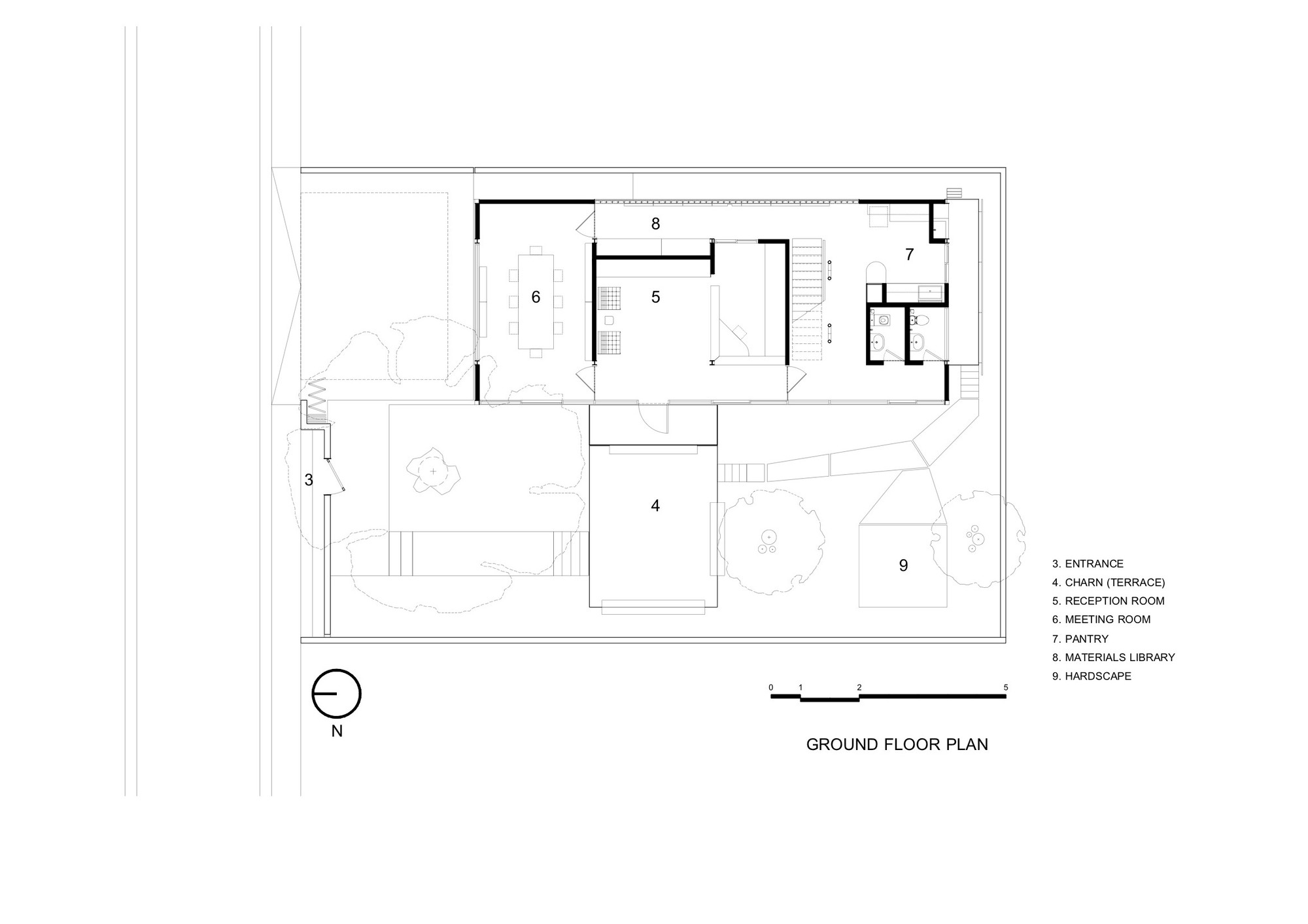

Plan
Plan

View the complete gallery

Location to be used only as a reference. It could indicate city/country but not exact address.
About this office
Geodesic Design Co.,Ltd.
Office
Cite: "Pakkred Office / Geodesic Design Co.,Ltd." 28 Mar 2014. ArchDaily. Accessed . <https://www.archdaily.com/490439/geodesic-design-nonthaburi-office-geodesic-design-co/> ISSN 0719-8884
