RB 500 / Hunter Douglas Contract

This month, Hunter Douglas Contract is proud to present the latest product of the window coverings family. Introducing RB 500, the muscle behind elegance at the window. Featuring a sleek architectural design with smooth operation and unrivaled inner strength, the roller shade operating system spans even the largest window expanses, beautifully.

Well-designed large shades make a dramatic statement, defining and controlling heat, light, and views. Highly durable hardware and operating systems deliver smooth and reliable operation. The new modular RB 500 roller shade system offers a wide variety of components.

Key Features
- Heavy-duty metal clutch provides smooth and easy lift capabilities.
- Modular operating system accommodates chain, crank and motorized applications.
- Universal spring-loaded end plug mounts shades securely and provides for smooth and easy installation.
- Utilization of counter balance weight system provides for ease of lifting roller shades over large expanses.
- Durable standard clutch system provides universal mounting capabilities (left or right) and aesthetically pleasing one size format capable of lifting a range of shade weights.
- Durable roller tubes are engineered to span large expanses.
- Heavy-Duty chain with 150-pound breaking strength provides worry-free and smooth operation of shades.
- Aluminum designer installation bracketing system provides unique architectural aesthetic possibilities and strong mounting platform.

Hardware Colors

Manual Roller Shades

Motorized Roller Shades

Projects that use this product

U.S. Green Building Council – USGBC

U.S. Citizen & Immigration Services

This post is part of our ongoing effort to create a database of architectural products, a useful resource for all architects, with the help of our partners.

Hunter Douglas Contract is a business partner of ArchDaily.

QuadroClad™ Glass Façade Panels / Hunter Douglas Contract

This month, we would like to introduce QuadroClad™ Glass Façade Panels, a great product from the Facades line of Hunter Douglas Contract.

Glass Façades systems offer aesthetic versatility and equally functional coverage. ’s glass systems enable a wide range of design possibilities, including custom printing, shading/fritting, and more.

Fully integrated with their engineered carrier system, this system is ideal for facade retrofits, allowing a functional and aesthetic makeover of an entire building exterior, including over-cladding without the need for window replacement.

Main Features & Benefits

- Open-joint rainscreen façade systems control rain penetration, maintain ventilation, and provide thermal insulation.
- Range of transparent and opaque glass panels available.
- Glass panels fully integrate with QuadroClad metal and resin panels on the same plane.
- Ideal for both new construction and over-cladding projects. Full CAD and project management support available.

System Overview

- Width (max): 6 ft (1830 mm)
- Length (max): 12 ft (3650 mm)
- Glass Pane Thickness: 0.25 in (6 mm), 0,3125 in (8 mm), 0.375 in (10 mm)
- System Weight: 5.5 lbs / sq. ft (26.86 kg / sq. m)
- Max Size in Combination: Dependent on system type and configuration.
- Joint Width: 0.375 in (10 mm), 0.5625 in (15 mm)
- Coating: Color matched  Ceramic Frit
- Glass Pane Types: Low Iron (Colorless glass) or Clear Float (Green edge – Standard)
- Colors: Custom color capabilities including soil, semi-translucent, or translucent possibilities. All colors UV stable and chemical resistant.

Details

Panel Combinations

Specifications

- Panel Composition: Heat-strengthened or laminated glass to meet applicable building codes.
- Wall Bracket: Available for insulation thicknesses of 100 mm, 150 mm, and 200 mm (4 in, 6 in, 8 in). Slotted holes allow for adjustment of +/- 25 mm (+/- 1 in) in depth and +/- 10 mm (+/- 0.375 in) in horizontal plane.
- Support Rail: Extruded aluminum profile for maximum rigidity where required. Rails also serve as vertical drainage channel. Standard length 7,200 mm (283.5 in).
- Fixing Plates: Fully adjustable in vertical directions, with integrated anti-vibration gaskets.
- Panel Sizes: Complete range of sizes up to 1,500 mm x 4,500 mm (59 in x 117 in).
- Windows: Twin-color powder-coated or anodized aluminum profiles. Windows are thermally improved and incorporate  a range of mullions and transoms.

Project that use this product

The Orchard

This post is part of our ongoing effort to create a database of architectural products, a useful resource for all architects, with the help of our partners.

Hunter Douglas Contract is a business partner of ArchDaily.

Motorized External Roller Shades / Hunter Douglas Contract

This month, we would like to introduce Motorized External Roller Shades, a great product from the Solar Control line of Hunter Douglas Contract.

Nysan provide excellent control of glare and thermal gain. Hunter Douglas Contract’s high-performance exterior fabrics – including PVC-free GreenScreen® Tek-Screen fabric – remain colorfast, resist damage from water and heat, remain dimensionally stable, and are resistant to rot. can be controlled by switch or automated control system. Heavy-duty headrails, bottom rails, and side guides are engineered to withstand adverse weather conditions.

Key Features

- Attractive headrail to protect the fabric (and motor) in the raised position.
- Durable roller tube incorporating the motor.
- Heavy-duty brackets, bottom rail, and side guides engineered to withstand adverse environmental conditions.
- Full motorization and automation available for raising, lowering, and adjusting the shade.

Nysan external roller shades feature

- Very good protection against thermal gain and glare, with performance superior to internal .
- The ability to retract shades completely when not required.
- A wide variety of fabric colors, opennesses, and options to customize the aesthetics and performance of the shade.
- Integration with intelligent controls makes it possible to create an active shading solution on sun-facing elevations.
- Gravity drop roller shades, which resemble standard interior shades but feature specially designed operating mechanisms and fabrics.

System Description

Nysan motorized external roller shades provide excellent control of glare and thermal gain.

A wide range of highly-performance are available. PVC-free GeenScreen® Tek-Screen fabrics are specifically produced for external use and are:

- Colorfast to light
- Resistant to the elements (rain, temperature variations, direct sunlight etc.)
- Dimensionally stable
- Resistant to rot

Fabric Selector

Natte

Satine

Projects that use this product

California Academy of Sciences

This post is part of our ongoing effort to create a database of architectural products, a useful resource for all architects, with the help of our partners.

Hunter Douglas Contract is a business partner of ArchDaily.


Plank & Tile Snap-In panel / Hunter Douglas Contract

This month, we would like to introduce the Plank & Tile Snap-In panel, a great product from the Ceiling System line of Hunter Douglas Contract.

The proven durability of Snap-In panels – one of Hunter Douglas’ first concealed suspension systems for metal panels – makes them a good selection for ceiling and wall applications. Snap-In installation is a familiar and proven process for the commercial trades. Snap-In panel systems are also designed to meet exterior wind load requirements.

Key Features

- Ceiling and wall applications
- Interior and exterior applications
- Hinged access doors available
- Trim systems available with both roll-form and extruded options
- Contains from 70% to 95% recycled content
- Compatible with industry standard fixtures and air diffusers
- Design flexibility with our custom and skip perforation options
- Colors, finishes and perforation/acoustical options available
- GREENGUARD Children and Schools (sm™) Certified for Indoor Air Quality (IAQ)

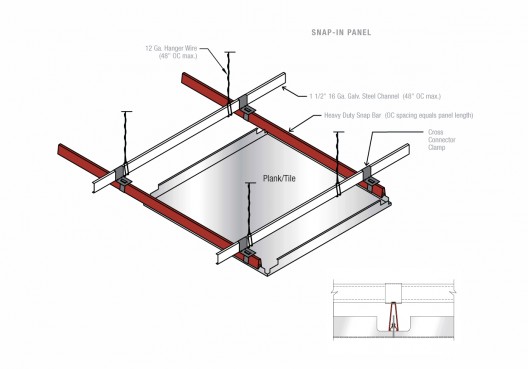

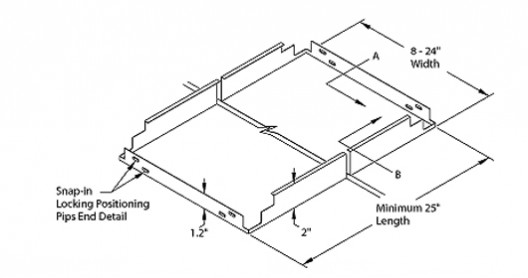

Construction Details

Substrate: Aluminum
Suspension: Concealed
Panel Profile: Square Edge

- Ceiling and wall applications
- Interior and exterior applications
- Hinged access doors available
- Trim systems available with both roll-form and extruded options
- Contains from 70% to 95% recycled content
- Compatible with industry-standard fixtures and air diffusers
- Design flexibility with our custom and skip perforation options
- Variety of colors, finishes and perforation/acoustical options available

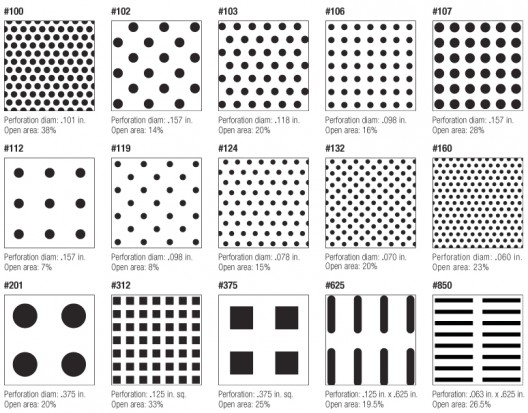

Perforations

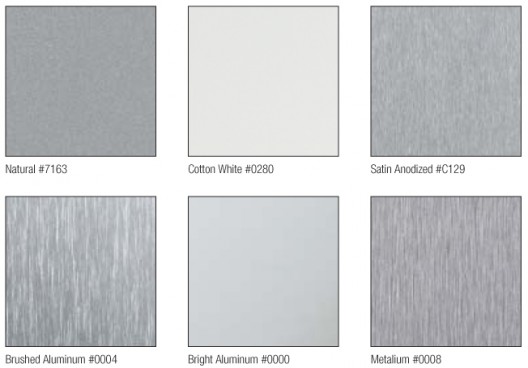

Colors

Hunter Douglas offers a wide choice of colors and finishes. Some colors and finishes carry a premium price over manufacturer’s standard colors. Custom color matching is available upon request. Please consult Hunter Douglas for minimum quantities and lead times on specific orders.

Projects that use this product

Austin City Hall


Computer Center Krung Thai Bank


This post is part of our ongoing effort to create a database of architectural products, a useful resource for all architects, with the help of our partners.

is a business partner of ArchDaily.

Van Leeuwenhoek Laboratory / DHV Architects

© Rene de Wit

Architects: DHV Architects
Location: Delft,
Principal Architect: Robert Collignon
Client: TNO Finance & Real Estate
Structural Engineer: DHV B.V.
Building Physics: DHV B.V.
Mechanical, electronic and control systems: Deerns B.V.
Contractor: Heijmans (Civil), Burgers Ergon (Utilities)
Project Area: 10,300 sqm GFA of which 5,600 sqm GFA laboratories
Project Year: 2004–2009
Photographs: Rene de Wit & Koos Rensen (only IMG_9257.jpg)

Silhouette® FR Window Shadings / Hunter Douglas Contract

This month, we would like to introduce  Silhouette® FR Window Shadings, a great product from the line of Hunter Douglas Contract.

A category-defining combination of functionality and appearance, Hunter Douglas’ exclusive Silhouette FR ® windows shadings filter light while reducing glare as well as block light and provide privacy. Suspended between two sheer facings of polyester, adjustable fabric vanes can be raised and lowered like standard shades and opened or closed like horizontal blinds.

When the vanes are open, the shadings work like sheers, filtering light to eliminate glare and create an inviting glow. Vanes can be tilted to block light and provide privacy, and the shadings roll up completely into a slim headrail, allowing unobstructed views.

Key Features

- GREENGUARD Indoor Air Quality Certified® and GREENGUARD Children and Schools certified for low-emitting products’
- Fabrics meet all requirements of NFPA 701 small scale flammabiltiy testing for commercial applications
- Up to 88% ultraviolet protection with vanes open and 99% with vanes closed
- Motorization available
- Backed by Hunter Douglas Contract Lifetime Guarantee

Product Details

- Headrail: 3″ x 2-9/32″ or 3-3/16″ x 2-1/2″, standard/tilt-only/oversized configurations, fabric-covered.
- Mechanism: continuous cord loop.
- Fabrics: 18 colors, all FR *, avaliable in Originale™ classic translucent woven fabric and Bon Soir™ light-dimming fabric.
- Widths: 12″ to 96″ (standard), 6″ to 11-7/8″ (tilt-only), 12″ to 120″ (oversized).
- Heights: 16″ to 96″ (standard), 16″ to 120″ (oversized and tilt-only). Minimum height for motorized products is 12″.
- Options: motorization/remote operation, inside/outside or end mount, dust covers, non-standard cord drop lengths, 2-on-1 headrail.

Fabrics & Colors

Originale™ Translucent Fabrics

Bon Soir™ Light Dimming Fabrics

Technical Information

1. Headrail End Caps
2. Limit Screw Assembly
2a. Limit Screw
2b. Rotator
2c. Limit Nut
3. Screw
4. Universal Rotator Rail
5. Clutch Assembly
6. Screw
7. Cord Loop
8. Universal Cord Tensioner
9. Headrail (OPTIONAL: Fabric Covered)
10. Ratchet Limit Assembly
11. Bottom Slat
12. Bottom Rail
13. Bottom Rail End Caps
14. Balance Weight
15. Weight Clips
16. Fabric
17. Hold-Down Bracket
18a. Universal Cord Tensioner Mounting Bracket
18b. Universal Cord Tensioner Mounting Bracket Flush Mount

Design Options

EASYRISE™
This continuous cord loop and clutch assembly makes operating large shades easier.

TOP-DOWN/BOTTOM-UP
Provides the ultimate choice in versatility, with the option to operate shades from the top down, the bottom up, or in combination to meet all your privacy needs while still giving you access to natural light.

TWO-ON-ONE HEADRAIL
Two shadings share the same headrail; each shade operates independently.

SPECIALTY SHAPES
Uniquely shaped windows pose challenges in providing privacy and light control and keeping your space energy efficient. Hunter Douglas has taken on these challenges by offering the following options: perfect and imperfect arch, perfect and imperfect extended arch, circle, angle, octagon, oval, hexagon, trapezpoid, perfect and imperfect quarter circle. Vanes remain in fully opened position and are non-operable. Inside mounts only.

MOTORIZATION
Versatile range of motors and controls to maximize shading benefits.

TILT-ONLY
For narrow windows. Shades cannot be raised or lowered, but vanes may be positioned from fully open to fully closed.

ADDITIONAL OPTIONS
Inside mount, outside mound, end mount (max width = 84″), dust covers, optional cord drop lengths – color-coordinated sizes: 2′, 3′, 4′, and 5′ for standard and oversized rails. White available in a 1′ length, and 12′ increments from 6-16′ lengths.

Projects that use this product

Smedinghuis


Rabobank


This post is part of our ongoing effort to create a database of architectural products, a useful resource for all architects, with the help of our partners.

Hunter Douglas Contract is a business partner of ArchDaily.

Dalian Shell Museum / The Design Institute of Civil Engineering & Architecture of DUT

Architects: The Design Institute of Civil Engineering & Architecture of
Location: Dalian,
Project Area: 18,000 sqm
Project Year: 2009
Photographs: Courtesy of Dalian Shell Museum

Nestlé Social Block / GH+A Guillermo Hevia

© Cristián Barahona

Architects: GH+A / Guillermo Hevia
Location: Graneros,
Collaborators: Tomás Villalón, Francisco Carrión, García, Marcela Suazo
Client: Nestlé Chile S.A.
Contractor: Precon S.A.
Bioclimatic Consultant: Biotech
Lighting: Opendark
Project Area: 2,800 sqm
Project Year: 2009
Photographs: Cristián Barahona, Guillermo Hevia H. & Guillermo Hevia García

QuadroClad™ Metal Façade Panels / Hunter Douglas Contract

This month, we would like to introduce you the QuadroClad™ Metal Façade Panels, a great product from Hunter Douglas Contract.

QuadroClad™ Aluminum panels feature flat or curved planes for a smooth, uniform appearance. Durable aluminum panels are available in either anodized or painted finishes and a wide range of colors. Installation is executed on the same substructure as glass and resin panels, allowing all panels to be used in combination.

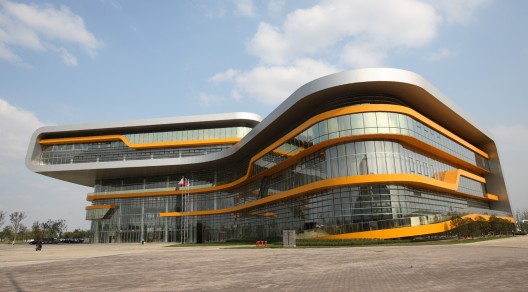

Shanghai Automobile Museum

Panels constructed with fabrication technology used in the aerospace industry to create lightweight, extremely strong panels. Each panel sandwiches a stable metal honeycomb between two skins of smooth, coil-coated aluminum. Layers are bonded together with high-quality adhesives to form a monolithic mechanical construction.

The result: Optimal quality control. Maximum flexibility. The ability to withstand the most severe environmental conditions.

Dalian Shell Museum

Features & Benefits at a Glance

- Open-joint rainscreen façade systems control rain penetration, maintain ventilation, and provide thermal insulation.
- Honeycomb construction enables exceptionally large, flat modules up to 1500 mm (4.9 ft) wide and 4500 mm (14.8 ft) long.
- Metal panels fully integrate with QuadroClad glass and resin panels on the same plane.
- Ideal for both new construction and over-cladding projects. Full CAD and project management support available.

1. Ventilation
2. Drainage Channel
3. QuadroClad Pannel
4. Cavity
5. Thermal Insulation
6. Loadbearing Wall

Canadian Embassy

Specifications

External Skin: Aluminum coil-coated with Luxacote® or PVF2 finish (0.95 mm/~0.037 in). Other base metals and finishes available.
Internal Skin: Aluminum coil-coated with protective finish (0.5 mm/~0.02 in).
Core Structure: Aluminum honeycomb core.
Edge Extrusion: Extruded aluminum, mitered and crimped to seal each panel,with integrated fixing detail for easy attachment to support structures.
Wall Bracket: Available for insulation thicknesses of 100 mm, 150 mm, and 200 mm (4 in, 6 in, 8 in). Slotted holes allow for adjustment of +/- 25 mm (+/- 1 in) in depth and +/- 10 mm (+/-0.375 in.)in horizontal plane.
Support Rail: Extruded aluminum profile for maximum rigidity where required. Rails also serve as vertical drainage channel. Standard length 7,200 mm (283.5 in).
Fixing Plates: Fully adjustable in vertical directions, with integrated anti-vibration gaskets.
Panel Sizes: Complete range of sizes up to 1,500 mm x 4,500 mm (59 in x 117 in).
Windows: Twin-color powder-coated or anodized aluminum profiles. Windows are thermally improved and incorporate a range of mullions and transoms.

Panel Composition

1. Pre-coated and roll formed aluminum external skin
2. Adhesive file
3. Aluminum extrusion
4. Aluminum honeycomb
5. Pre-coated aluminum internal skin

Technical Drawings

Projects that use this product

Mahler 4

Dalian Shell Museum

Dalian Shell Museum Dalian Shell Museum Dalian Shell Museum Dalian Shell Museum

This post is part of our ongoing effort to create a database of architectural products, a useful resource for all architects, with the help of our partners.

Hunter Douglas Contract is a business partner of ArchDaily.

Manitoba Hydro / KPMB Architects

© Paul Hultberg
© Paul Hultberg

Architects: Kuwabara Payne McKenna Blumberg Architects (Design Architects) / Smith Carter Architects + Engineers (Executive Architects) / Transsolar (Climate Engineers)
Location: Winnipeg, Manitoba,
Project Team: Bruce Kuwabara, Luigi LaRocca, John Peterson, Kael Opie, Lucy Timbers, Glenn MacMullin, Ramon Janer, Javier Uribe, Taymoore Balbaa, Steven Casey, Clementine Chang, Chu Dongzhu, Virginia Dos Reis, Andrew Dyke, Omar Gandhi, Bettina Herz, Eric Ho, Tanya Keigan, Steven Kopp, John Lee, Norm Li, Eric Johnson, Andrea Macaroun, Rob Micacchi, Lauren Poon, Rachel Stecker, Matt Storus, Richard Unterthiner, Dustin Valen, Francesco Valente-Gorjup, Marnie Williams, William Wilmotte, Paulo Zasso
Architects of Record: Smith Carter Architects and Engineers
Client: Manitoba Hydro
Project Area: 64,590 sqm
Project Year: 2009
Photographs: Gerry Kopelow, Paul Hultberg, Eduard Hueber

© Eduard Hueber © Eduard Hueber © Eduard Hueber © Eduard Hueber

Box Series / Hunter Douglas Contract

CHS 255F_f

This month we would like to introduce you the Box Series, another product from Hunter Douglas Contract, part of the Linear Ceiling System.

Luxalon box and deep box systems all use a universal carrier suspension system to maximize design flexibility, allowing combinations of 2-, 4-, 6-, and 8-inch widths in either depth. Box panels are .625″ deep. The crisp module definition of the box and deep box systems makes them an excellent solution for either interior or exterior applications. All box and deep box feature easy installation, provisions for acoustics, HVAC, and lighting. Available in a variety of paint colors and finishes, including wood veneer and metallic.

CHS 256F_f

Key Features

- Panel widths: 2″, 4″, 6″ and 8″
- Panel depths (nominal): 5/8″ (Box); 1 1/2″ (Deep Box)
- Easy installation – no fasteners required
- Built-in provisions for acoustics, HVAC, and lighting
- Box systems have crisp edges for precision reveals. Deep Box profiles allow stronger reveals
- Easy access to plenum
- Perimeter trim options available
- Panels contain from 70% to 95% recycled content
- Interior and exterior applications available
- Colors, finishes and perforation/acoustical options available
- GREENGUARD Children and SchoolsSM Certified for Indoor Air Quality (IAQ)

IMG Final

The defined, square edges of Luxalon® Box and Deep Box systems create a crisp, modular ceiling for interior and exterior applications. All panels fit our exclusive universal carrier, allowing mix-and-match patterns to establish texture and pattern.

Colors

Hunter Douglas offers a wide choice of colors and finishes. Some colors and finishes carry a premium price over manufacturer’s standard colors. Custom color matching is available upon request. Please consult Hunter Douglas for minimum quantities and lead times on specific orders.

Standard Colors

StandardColors

Simulated Wood Finishes

WoodColors

Construction Details

Example of Multi-Box System

MultiBox

Example of Box System

BoxSystem1BoxSystem2

Characteristics

Substrate: Aluminum
Suspension: Concealed
Panel Profile: Reveal

Projects that used this product

James E. Rogers College of Law U. of AZ (pictures ©Bob Perzel)

IMG_0871 IMG_0899 UofA-146 UofA-120

Chanhassen High School

CHS 295F_f CHS 276F_f CHS 255F_f CHS 252F_f

This post is part of our ongoing effort to create a database of architectural products, a useful resource for all architects, with the help of our partners.

is a business partner of ArchDaily.

IFAW Headquarters / DesignLAB

IFAW 01

Boston based DesignLAB Architects designed the World Headquarters for the International Fund for Animal Welfare(IFAW). Given the mission of the IFAW (“provide a better world for animals and people”), the challenge was to incorporate this through sustainable design.

The program distributed in 54,000sqf is arranged in three clean volumes sitting on a reclaimed brownfield site. The volumes are open to the outside, integrated with the surroundings, through transparent planes. To control the sun over these , a series of louvres are arranged along them as you can see on the photos.

The building received the LEED Gold Certification, validating the sustainable strategy.

IFAW_6488_hall_vertical IFAW 07 IFAW 05 IFAW 03

Nysan Aerofoil Louvers / Hunter Douglas Contract

Producto6

This month, we’d like to share with you another product from Hunter Douglas Contract, that can help you improve  the energy efficiency of your projects.

The Nysan aerofoil (fin) louvers deflect thermal gain from incident sun, integrating light control into the building envelope. Not only they deliver outstanding functionality, but will also help architects create a distinctive look for the building surface. Well-designed louver configurations can be as striking as they are effective, shading the facade against low or high sun angles while making an aesthetic statement. As with any system, design considerations such as louver size and composition can affect performance.

King Abdullah University of Science and Technology / HOK

KAUST Campus © 2009 J.B. Picoulet – S. Lourié
KAUST Campus © 2009 J.B. Picoulet – S. Lourié

As we told you on a previous post, last week we were in visiting the King Abdullah University of Science and Technology (KAUST). We showed you some renderings and the construction process, and now we bring you more details on this 6.5 million sqf LEED Platinum project, including a video with Bill Odell, design partner at .

The project consists of two parts, the campus and the university town with facilities and accommodations for students, faculty and staff.

The main area of the campus consists of 10 volumes facing the Red Sea, housing the administrative offices, student services, library, a mosque, labs, research centers and an auditorium. A Costal Studies Center is still under construction and will be opened next January.

Access to the campus
Access to the campus

The first building we visited was the Library, the main volume overlooking the Red Sea.

Brandhorst Museum / Sauerbruch Hutton

1251923214-hdc-i

Architects: Sauerbruch Hutton
Location: Munich,
Client: Staatliches Hochbauamt, Munich
Project Area: 12,100 sqm
Budget: $46M Euro
Project year: 2002
Construction year: 2005-2008
Photographs:

162 169 178 180

NBK Terracotta Façade Panels / Hunter Douglas Contract

1251923214-hdc-i
As architects, we are always looking for new materials and technologies to make projects standout in terms of aesthetics, design and functionality. The type of products available and an architects’ knowledge about its uses will have a direct influence in the design stage of a project.

Terracotta Façades panels by industry leader NBK (a Hunter Douglas company) bring a completely new dimension to designing the building exterior. Blending the latest technology for ventilated façades with urban tradition and materials, NBK terracotta tiles meet the highest standards for both architecture and design.

Roller Shades FR / Hunter Douglas Contract

1251853339-roller-shades-fr-iii
When selecting for a project, both beauty and performance are key factors that come into play. Roller Shades, one of Hunter Douglas’ most succesfull window coverings products, provides a complete, and elegant, solution for controlling light and glare. Simple and versatile, distinctive yet cost-effective, this line includes scores of decorative and performance fabrics mounted on high-quality hardware, with manual operators or motorization.

For over 80 years, Hunter Douglas Contract has provided architects and designers all over the world with innovative window coverings. With major operation centers in North America, Europe, Asia, Latin America and Australia, Hunter Douglas products are available to offices, government buildings, schools and other public institutions all around the world.

300C – Linear Plank Ceilings / Hunter Douglas Contract

LinearBrochure

have the power to increase design potential for architects by defining, maximizing and even dramatizing interior space. For decades, Hunter Douglas has engineered its ceiling systems for design versatility, as well as ease-of-installation, with industry-leading sizes, options, and colors, as well as an exclusive universal carrier system that lets architects mix and match widths and panel depths.

One of the most versatile, consistent ceilings in the industry, 300C metal panels, creates a distinct, smooth look for any interior. These panels offer a subtle, long span design featuring a butt-joint, “bevel edge” that moderates panel-to-panel connections for an orderly, finished design. Hunter Douglas experience in designing and manufacturing ceilings is shown in every detail of their products.
