Rainscreen Cladding System CUPACLAD® 101 PARALLEL | Cupa Pizarras

Rainscreen Cladding System CUPACLAD® 101 PARALLEL Rainscreen Cladding System CUPACLAD® 101 PARALLEL Rainscreen Cladding System CUPACLAD® 101 PARALLEL Rainscreen Cladding System CUPACLAD® 101 PARALLEL Rainscreen Cladding System CUPACLAD® 101 PARALLEL Rainscreen Cladding System CUPACLAD® 101 PARALLEL Rainscreen Cladding System CUPACLAD® 101 PARALLEL Rainscreen Cladding System CUPACLAD® 101 PARALLEL
  • Available in

  • Use

    Rainscreen cladding
  • Applications

    Facades
  • Characteristics

    Natural slate panels, invisible fasteners, two self-drilling stainless steel screws to reduce structural movement, ventilated and insulation system combined
  • Sizes

    40x25 cm (16” x 10”)
  • Certification

    ISO 9001 Quality and ISO 14001 Environmental certifications

2 Product Files

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products
Cupa Pizarras Logo

Contact manufacturer

Cupa Pizarras

Cupa Pizarras Logo

Contact manufacturer

Cupa Pizarras

More from Cupa Pizarras

Website Phone

More about this product

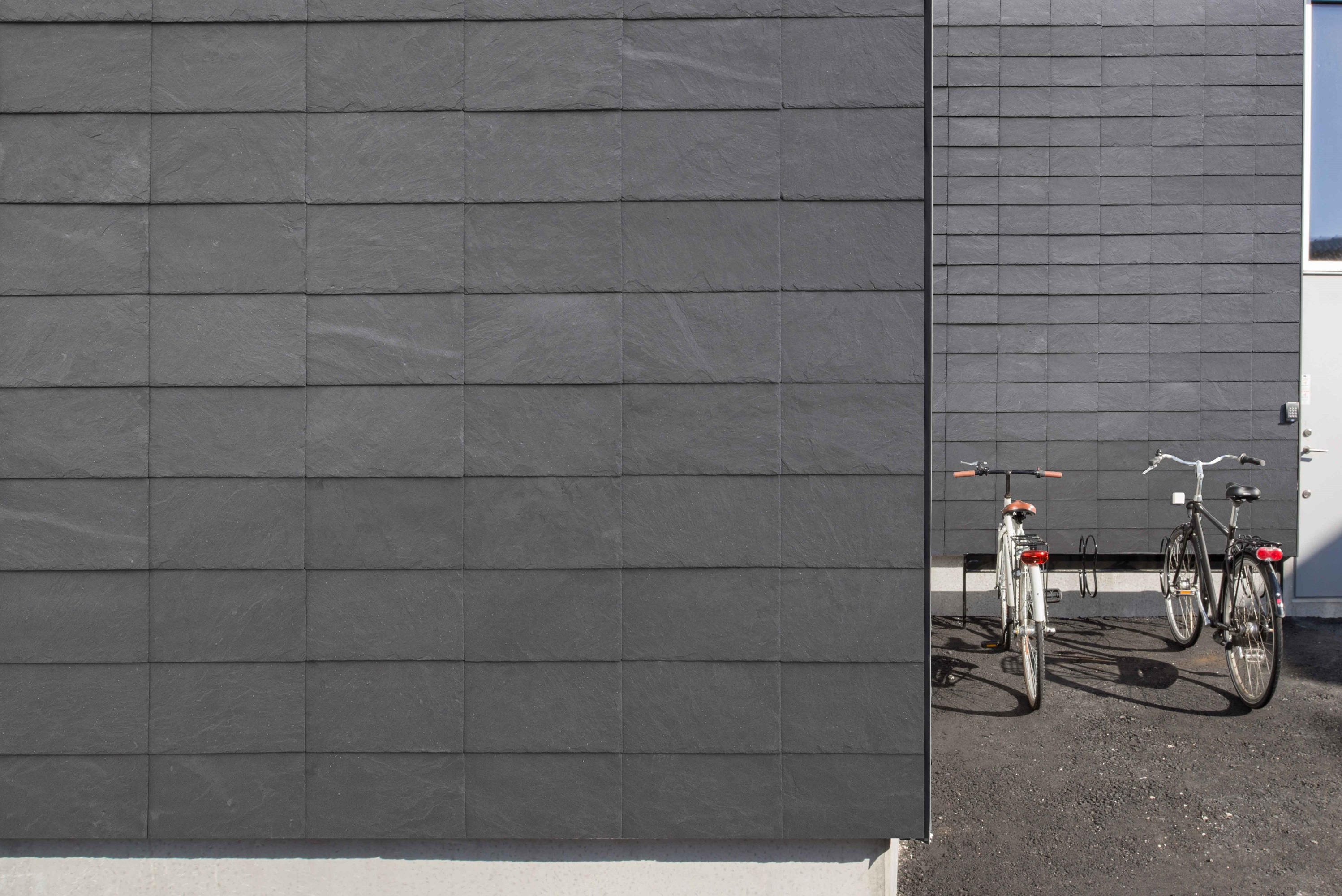

The CUPACLAD® 101 PARALLEL system offers an innovative style based on parallel lines, where its characteristic homogeneity enhances the texture of Cupa Pizarras slates.

Characteristics

CUPACLAD® 101 PARALLEL rainscreen cladding system is made up of 40x25 cm slates installed horizontally, aligned and with concealed screws. All CUPACLAD® 101 systems share the same invisible fasteners, especially conceived by our team of engineers. Two self-drilling, stainless steel screws, with large diameter flat heads, guarantee easy installation and a perfect end result.

Slate Size 40x25 cm (16” x 10”)
Nominal Thickness 7,5 mm - 1/4” - 3/8”
Number of Slates/m2 14,3
Weight/m2 (slate) ≤30 kg/m² - ≤ 6,14 lb/ft2

Main Advantages

  • Elimination of Humidity
  • Structural movement reduction
  • Energy savings
  • Durability

Sustainability

CUPACLAD® systems enable the construction of efficient, sustainable rainscreen cladding. A life cycle analysis, which allows you to analyze the overall environmental impact of a product, confirms CUPACLAD® as the ecological option for facade cladding, thanks to the use of natural slate instead of prefabricated products.

Installation

CUPACLAD® reinvents the traditional technique for placing natural slate, offering greater simplicity and significant savings in installation times. The fixing systems used in CUPACLAD® systems are the result of a meticulous design process performed by our engineers and these were specially designed to ensure a quick, secure installation.

Efficiency

Now considered the most efficient system for construction envelope purposes. The combination of a ventilated system together with an insulation system gives numerous advantages in terms of thermal and acoustic properties. It avoids thermal bridges and condensation issues.

Quality

The quality of Cupa Pizarras product lies in their total control of the entire production process (from extraction to shipment) and by putting in place the highest quality and environmental policy requirements demanded by ISO 9001 Quality and ISO 14001 Environmental certifications.
