Back-Ventilated Facades - CELLON | Bruag
Navigate products using your keyboard
×
  1. Products
  2. Panels / Prefabricated Assemblies
  3. Back-Ventilated Facades - CELLON

Back-Ventilated Facades - CELLON | Bruag

Key information

  • Use

    Interior and Exterior
  • Applications

    Facades, balcony railings, perforated claddings, partition walls, wall claddings
  • Characteristics

    Compact high-pressure laminate board (HPL), based on 70% paper layers and 30% phenol resin, cut by laser (customizable), fire retardant (B1)
  • Colors

    Any NCS S Edition, RAL, Bruag Alu or colours according le Corbusier
  • Sizes

    Format Raw Material: 3630 mm x 1860 mm or 3050 mm x 1300 mm/ Maximal Format Industrial Coating: 3600 mm x 1300 mm / Thickness: 6, 8 or 10 mm

More about this product

The back-ventilated CELLON facade system is a high developed system based on the different components carrier board, laser cut and industrial coating. The carrier board of the system is a compact high-pressure laminate board (HPL), based on 70% paper layers and 30% phenol resin.

The carrier board can be delivered in any RAL and NCS colour or one of the 11 Bruag ALU metallic colours. You are not bounded by any standard colours and can choose exactly what you want. In addition to giving you freedom in terms of planning, laser-cutting allows you to give the panels a completely individual design. You can design your very own perforations, or select a pattern from those already available; we then take up your design and use it for production. We use DXF and DWG data formats.

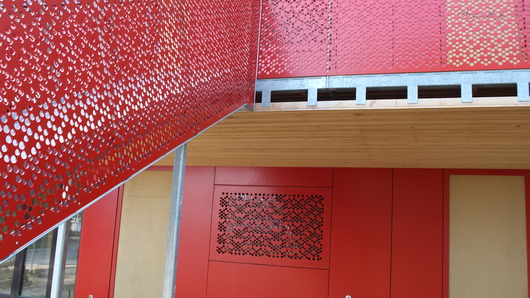

You can either have the CELLON facade elements as smooth boards of the size you wish or also integrate different perforations to get an interesting play with light and shadow. Elegant facades and constructive solutions are easily and fastly realizable.

null

The 8 mm (but it can be varied if you wish so) thick board is also robust to extreme mechanical burdens, there is no embrittlement and it is totally resistant against termites. Additionally, the CELLON is also robust under extreme weather conditions like rain, dampness and wetness. Based on its mechanical robustness, it is also suitable for balcony claddings and such applications.

Every element is precisely designed, keeping in mind the requirements, cut to the nearest millimetre in accordance with the blueprints, and coated in one of over 3000 available UV-resistant colour tones. The edges of the panels are also coated in your colour of choice (RAL, NCS S, Bruag Alu or Les Couleurs® Le Corbusier). Moreover, we are able to produce large format panels, whereby Bruag calculates the net amount used. You do not pay for wastage or pay anything extra for pre-drilled holes.


Features and Benefits

- Individual shapes (incl. perforations and ornamentations) made possible by use of laser-cutting technology
- Mechanically robust
- Scratch-proof, impact-resistant and shock-resistant
- Very high fracture strength
- Not brittle
- Moisture-resistant
- No swelling due to moisture load
- Frost-proof
- Termite-proof
- Extensive choice of colours (over 3000 colours)
- Natural appearance, with a matt surface
- Straight-forward installation


Comparison Facade Material CELLON and Formboard top pine Bruag

  Formboard top pine CELLON®
Carrier Plate Highly-compressed, bonded wood-based panel Compact high-pressure layered panel from pressed material (HPL): 70% cellulose layers and 30% phenolic resin
Thickness  10 or 18mm 6, 8 or 10 mm (other thicknesses available on consultation)
Raw material maximum format 18x6200x2100mm; 10x6100x2100mm* 6/8/10x3630x1860mm or 6/8/10x3050x1300mm*
Charging Net calculation Net calculation
Colour Choice NCS S edition 2, RAL, Bruag ALU, Les Couleurs® Le Corbusier NCS S edition 2, RAL, Bruag ALU, Les Couleurs® Le Corbusier
Building material class B2 = B1 standard with special coating available (additional charge) Bs1d0 = standard
Mounting method HolzFix stainless steel screws + sealing ring (holes lasered in keeping with your specifications, at no additional cost) HolzFix stainless steel screws + sealing ring (holes lasered in keeping with your specifications, at no additional cost)
Substructure Back-ventilated, vertical composite min. 27*80mm;
metal substructure also available
Back-ventilated, vertical composite min. 27*80mm;
metal substructure also available

* The maximum width for Bruag's industrial coating machine is 1.33m. Panels that are over this size can be hand-coated (for an additional charge).

Download brochures and extra info about Bruag’s here


For more information about Bruag's Facade Systems contact through our contact/quote button on top, visit Bruag's page in Materials, or visit www.bruag.ch.


Ask for more information / Quote

Brief

Are you fed up of having to adapt your choice of facades to the choices made available by the panel manufacturers, and of having to pay extra for every little cut and every pre-drilled hole?
Then you have come to the right place. We accommodate your wishes and provide large format facade panels that exactly match your conceptions.

The back-ventilated CELLON facade is a highly developed system based on high-pressure-laminate panels. Every element is being produced exactly according to your drawings and coated in one of over 3000 colour shades possible.

Flexible. Individual. Reliable. Get inspired by the possibilities offered!
