Terracotta Rainscreen - Piterak® XS | Terreal

Terracotta Rainscreen - Piterak® XS Terracotta Rainscreen - Piterak® XS Terracotta Rainscreen - Piterak® XS Terracotta Rainscreen - Piterak® XS Terracotta Rainscreen - Piterak® XS Terracotta Rainscreen - Piterak® XS Terracotta Rainscreen - Piterak® XS Terracotta Rainscreen - Piterak® XS Terracotta Rainscreen - Piterak® XS
  • Available in

  • Use

    Rainscreen cladding façade system
  • Applications

    Educational, healthcare, institutional, commercial, corporate, refurbishment, residential, public architecture buildings
  • Characteristics

    Terracotta rainscreen cladding system
  • Sizes

    Length from 30 to 150 cm (~12" to 60") Height from 15 to 40 cm (~6" to 18") Thickness: 18 mm (0.71") Weight : ~31 kg / m2 (6.5 lbs/sq ft)
  • Certification

    Technical approval (from French CSTB)

2 Product Files

By downloading any file you agree to the Terms of Use, Privacy Policy and to the communication of your data to the brand from which you download catalogs and files.
The product has been saved to the folder: My Downloaded Products
Terreal Logo

Contact manufacturer

Terreal

Terreal Logo

Contact manufacturer

Terreal

More from Terreal

Website

More about this product

Piterak XS is an economical 18mm thick, double-skin terracotta rainscreen cladding system with overlapping horizontal reveals. The product is a thin, lightweight, and strong medium module terracotta panel available in a variety of standard sizes and a multitude of made-to-order sizes with a maximum height of 40 cm and maximum length of 150 cm. Through reinforced structure system, the Piterak XS system maintains a high wind and impact resistance rating. It is a terracotta cladding system that provides structural versatility and superior aesthetics in an economically superior rainscreen solution.

Benefits

  • Maintenance-free and durability
  • Fire resistant
  • 18 mm thick
  • Lightweight mineral cladding (around 30kg/m2)
  • Simple and fast installation using clips
  • Large choice of colors

Shape

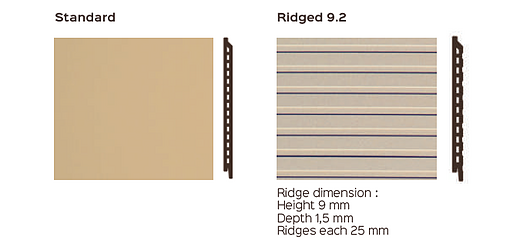

Piterak® XS rainscreen cladding is available in 2 standard shapes.

Colours

Piterak® XS terracotta panel is available in 13 standard through body colours as well as in glazed finish (glazed colour in R AL equivalence on request).

System
Piterak® XS maintains excellent structural load performance that is comparable to thicker terracotta panels while providing a slender, double- skin profile. Through exceptional engineering and manufacturing, the Piterak® XS system maintains a high wind and impact resistance rating. The terracotta cladding panels are supported by our engineered rainscreen support framing system and stainless - steel installation clips. Piterak® XS is a terracotta cladding system that provides structural versatility and superior aesthetics in an economically superior rainscreen solution.

Project Details

Name ProMedica Headquarters
Location Toledo, Ohio,USA
Architect HKS Inc.
Client ProMedica
Terreal product Piterak5r) XS - Colours : 3.Storm grey & 15.Slate grey
