Portable and Mountable Fan - Yellow Jacket | Big Ass Fans

More about this product

Big Ass Fans Yellow Jacket® use an efficient 1/2 hp motor, which means that even at full speed Yellow Jacket only uses 400 W. Yellow Jacket's tight construction and efficient airfoils make it very quiet. Even at full speed conversation will not be drown out.

The heavy-gage steel carriage provides the strength it needs to withstand a moshpit, or a 20-ft. drop. Over-sized wheels and an ergonomic handle provide superior manoeuvrability.


- Portable Base
- 18 inch Pedestal
- 36 inch Pedestal
- Remotely Mounted Speed Controller
- I-Beam Mount
- Wall Column Mount
- Yoke Mount
- Chain Mount
- Oscillator


- Motor rating: 1/2 hp
- Motor type: UL/IP45 -Rated
- Blade design: 3-dimensional progressive pitch blade
- Blade material: high performance polyamide nylon
- Housing material: High density polyethylene with vibration dampening properties
- Fan guards: 1/8 Steel spiral guards (OSHA compliant)
- Locking position mechanism: 180 degrees of vertical adjustment without tools
- Input voltage: 100-125v/200-250v
- Average power usage - Min/Max Speed: 13/400W
- Input current - min/max speed: 0.38/6.8 A
- Motor speed: RPM range: 300 - 1160
- Power cord: 10ft (115 volt version only)
- Controller speeds: 11 variable speeds
- Weight (fan and yoke): 105 lbs
- Warranty: 3 years electrical components, limited lifetime workmanship

For more information please visit Big Ass Fans page in our Materials Catalog, or go to

Application and Use in Construction

Type of Material

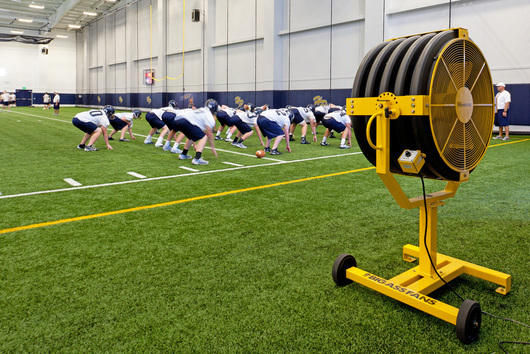

Big Ass Fans Yellow Jacket® is a portable and mountable fan. The 18'' and 36'' pedestals allow you to direct the airflow where it's needed. Mount it to a column or other vertical structure to get airflow in areas with no floor space.
