Jewel Box In Bangalore / SDeG

Dec 2010

Uploaded by Andrew Rosenberg — Filed under: Retail ,Selected , Bangalore, India, SDeG

▼

Add this to My Bookmarks:

share by email

share by email

Architects: SDeG
Location: Bangalore, India
Project team : Sujit, Kim, Balaji, Malavika, Thangabaskar
Project area: 1350 sqm
Project year: 2008 – 2010
Photographs: SDeG

The Jewel Box is designed to retail precious stones, and accommodate administrative offices. The building is shaped by both program and the geometries of crystals.

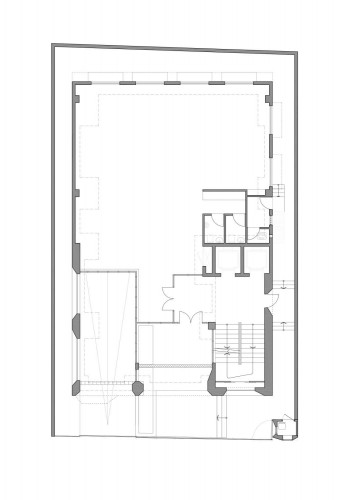

plan 01

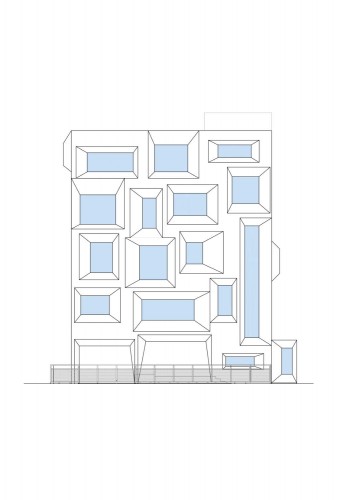

elevation 03

A series of design processes then dictate the malleability of the facades – our first inferences stemmed from raw crystal and its highly fractured attributes. We then aimed to rationalize the facets through several stages of refinement while ensuring a perceptible relationship between fenestration and the internal functions. However on the outside, the ‘bevels’ aspire to camouflage this relationship and become many parts of a homogeneous whole.

The beveled façade is 75mm thick, cast-in situ using ferrocement technology and light enough to be hung off the main RC structure. On the inside, the ‘bevels’ create a variety of edge conditions; therefore, each floor therefore gets a different set of views – of the immediate and distant context.

: © SDeG

: © SDeG

: © SDeG

: © SDeG

: © SDeG

: © SDeG

: © SDeG

: © SDeG

: © SDeG

: © SDeG

: © SDeG

: © SDeG

: plan 01

: plan 02

: elevation 01

: elevation 02

: elevation 03

: section 01

: section 02

: sketches

: models
