Zayed National Museum / Foster + Partners

Courtesy of

Featured here on ArchDaily are the recently unveiled designs by Foster + Partners for the Zayed National Museum.   The monument and memorial to the late Sheikh Zayed bin Sultan Al Nahyan, the founding president of the UAE, is located  on , Abu Dhabi, UAE, and will be the first museum completed for the island.

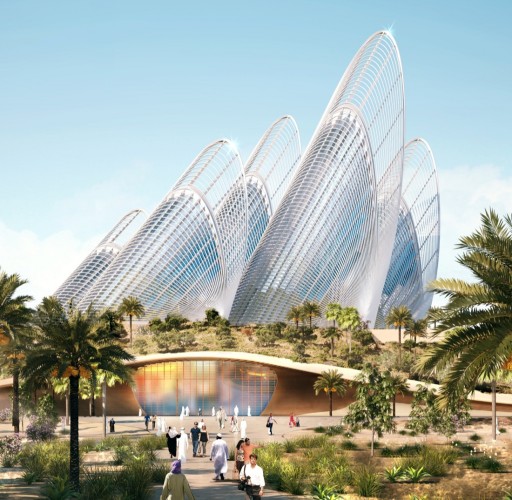

Architecturally, the aim has been to combine a highly efficient, contemporary form with elements of traditional Arabic design and hospitality to create a museum that is sustainable, welcoming and culturally of its place. Celebrating Sheikh Zayed’s legacy and love of nature, the museum is set within a landscaped garden, based on a timeline of his life.

Architects: Foster + Partners
Location: Saadiyat Island, Abu Dhabi, UAE
Foster + Partners Project Team: Norman Foster, David Nelson, Gerard Evenden, Toby Blunt, Martin Castle, Ross Palmer, Dara Towhidi, Karsten Vollmer, Barrie Cheng, Ho Ling Cheung, Sidonie Immler, Joern Herrmann, Andrew King, Gemma Owen, Jillian Salter, Marilu Sicoli, Daniel Weiss, Bram Van Der Wal, Simon Wing
Engineers: WSP/BDSP AKT
Local Architect: Planar
Landscape Architects: Atelier Dreiseitl
Lighting Designers: Claude Engle
Cost Consultants: RLB
Facade Access: Lerch Bates
Specification Writers: Schumann Smith
Air Flow Consultants: RWDI
Environmental Engineers: Transsolar
Auditorium Consultants: Shen Milsom + Wilke
People Movement Consultants: Intelligent Space
Programme Managers: AECOM
District Master Planners: TDIC Master Planners
Museography: The British Museum
Client: Tourism Development + Investment Company
Project Area: 66,042 sqm
Renderings: Courtesy of Foster + Partners

Courtesy of Foster + Partners

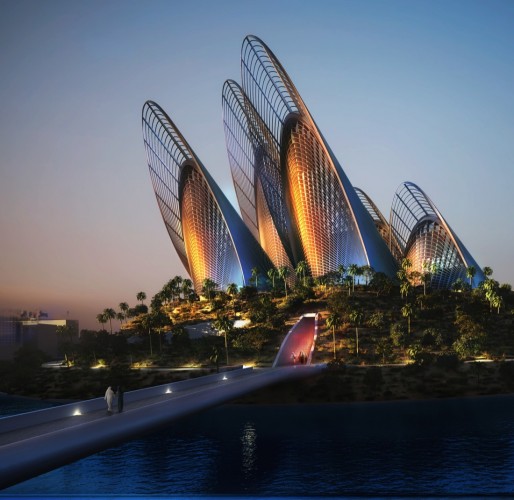

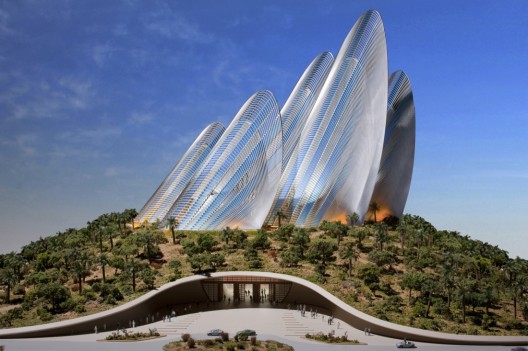

The display spaces are housed within a man-made, landscaped mound. The galleries are placed at the bases of five solar thermal towers. The towers heat up and act as thermal chimneys to draw cooling air currents naturally through the museum. Fresh air is captured at low level and drawn through buried ground-cooling pipes and then released into the museum’s lobby. The heat at the top of the towers works to draw the air up vertically through the galleries due to the thermal stack effect. Air vents open at the top of the wing-shaped towers taking advantage of the negative pressure on the lee of the wing profile to draw the hot air out.

Courtesy of Foster + Partners

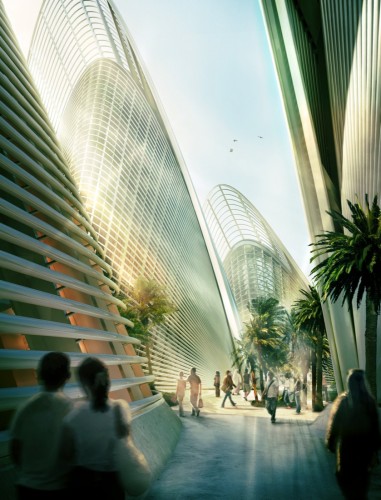

Here in the museum these towers are lightweight steel structures, sculpted aerodynamically to work like the feathers of a bird’s wing. The analogies with falcons and flight are deliberate and relate directly to Sheikh Zayed’s love of falconry. This theme is further celebrated by a gallery devoted to the subject as part of a wider focus on conservation. These inner spaces open up to an outdoor arena for live displays with hunting birds.

Courtesy of Foster + Partners

Balancing the lightweight steel structures with a more monumental interior experience, the galleries are anchored by a dramatic top-lit central lobby, which is dug into the earth to exploit its thermal properties and brings together shops, cafes, an auditorium and informal venues for performances of poetry and dance. Throughout, the treatment of light and shade draws on a tradition of discreet, carefully positioned openings, which capture and direct the region’s intense sunlight to illuminate and animate these interior spaces. Objects are displayed within niches and on stone plinths that rise seamlessly from the floor.
The museum contains a variety of performance spaces. A large auditorium, lined with Emirati textiles, provides an evocative setting for presentations and films. The lobby incorporates more informal venues for poetry readings, music and dance, where the audience can gather in a circle to enjoy the spectacle and atmosphere of traditional performances.

Courtesy of Foster + Partners

The interior concept for the restaurant draws on the opulence and hospitality of the Bedouin tent, with carefully selected furnishings. The majlis, or VIP spaces, open onto a central courtyard. This traditional space offers guests a unique perspective, as it is the only place in the museum where one can enjoy views of the wind towers.

Lord Foster said: “It has been a great privilege to work on the Zayed National Museum, to carry forward Sheikh Zayed’s vision and to communicate the dynamic character of a contemporary United Arab Emirates. We have sought to establish a building that will be an exemplar of sustainable design, resonating with Sheikh Zayed’s love of nature and his wider heritage.”

Saadiyat Island is located 500 metres off the coast of Abu Dhabi and is the largest single mixed-use development in the Arabian Gulf. Arranged as seven districts, the Saadiyat Island Cultural District will also include the Guggenheim Abu Dhabi Museum, the Louvre Abu Dhabi, as well as a Performing Arts Center and Maritime Museum. The Zayed National Museum is already under construction and will be the first of the museums proposed for the island.
