Wa Light / Atelier FCJZ

Nov 2010

Uploaded by Andrew Rosenberg — Filed under: Selected ,Structures , Atelier FCJZ, China

▼

Add this to My Bookmarks:

share by email

share by email

Architects: Atelier FCJZ
Location: China
Clients: Seoul Design Foundation
Principal: Yung Ho Chang
Project Architect: Keith Goh
Project Team: Wu Liangjie
Project year: 2010
Photographs: Courtesy of Atelier FCJZ

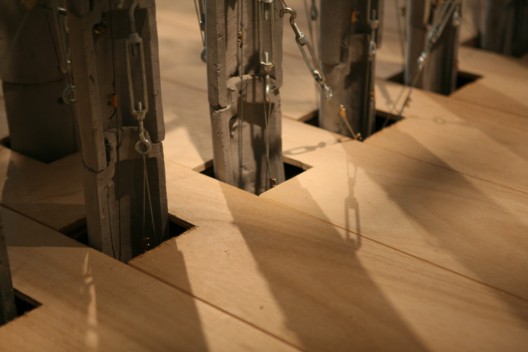

Wa is a traditional gray-colored roof tile, widely used in China in the past and still available today. Like other masonry material, Wa typically expresses heaviness. As architects, we desire a new interpretation of this ancient material and make it light. In order to achieve this goal, we have taken out the bottom tiles while keeping the top tiles, connected the tiles with steel cables, and created a pointed arch. By so doing, we are able to reduce the weight of Wa and to let light coming down from the roof. The structure appears to be light and heavy as well as contemporary and traditional all at the same time, maintaining a structure integrity and clarity to the entire design.

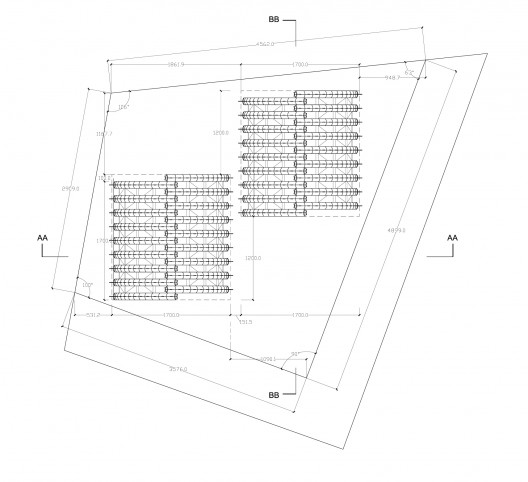

plan

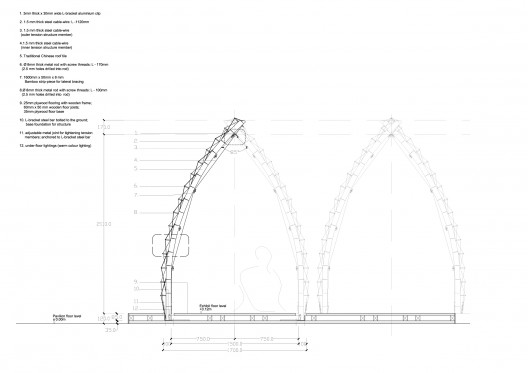

section A

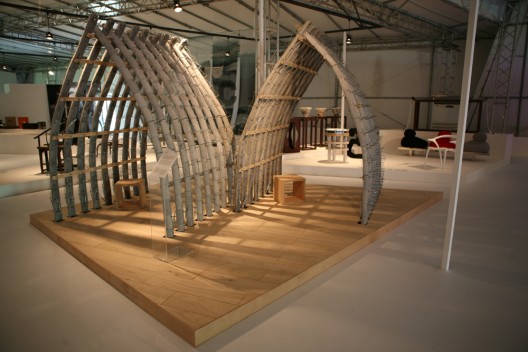

Two arches are constructed and provide two tea houses or semi-private spaces for a moment of quietness among family and friends. The louvered surfaces of the arches create a simultaneous open and close experience.

An intimate resting space.

: © Atelier FCJZ

: © Atelier FCJZ

: © Atelier FCJZ

: © Atelier FCJZ

: © Atelier FCJZ

: © Atelier FCJZ

: © Atelier FCJZ

: © Atelier FCJZ

: © Atelier FCJZ

: © Atelier FCJZ

: © Atelier FCJZ

: plan

: section A

: section B
