Hegau Tower / Murphy Jahn

Hegau Tower / Murphy Jahn - Facade, Windows, SteelHegau Tower / Murphy Jahn - Image 3 of 24Hegau Tower / Murphy Jahn - Facade, WindowsHegau Tower / Murphy Jahn - FacadeHegau Tower / Murphy Jahn - More Images+ 19

Mühlhausen-Ehingen, Germany
  • Architects: Murphy/Jahn: Murphy Jahn
  • Area Area of this architecture project Area:  17056
  • Year Completion year of this architecture project Year:  2008
  • Photographs
    Photographs:Rainer Viertlboeck

Text description provided by the architects. Hegau Tower's design is a direct result of close collaboration between architect and client; a clear modernist expression.

Hegau Tower / Murphy Jahn - Cityscape, Facade
© Rainer Viertlboeck

Located in Singen, Germany, 20 km west of Lake Constance and in immediate proximity to the Swiss border, this design by Murphy Jahn is part of a larger development plan.  The redevelopment on the south side of the main train station is a representation of  the transition of this industrial town of roughly 45,000 people from production to service based businesses.

Hegau Tower / Murphy Jahn - Cityscape, Facade, Windows
© Rainer Viertlboeck

The building is full of highly functional and energy efficient details, including thermal mass activation and integration into the HVAC system, exterior flexible shading on southwest facing facades, natural ventilation, nighttime cooling, and daylight optimization.

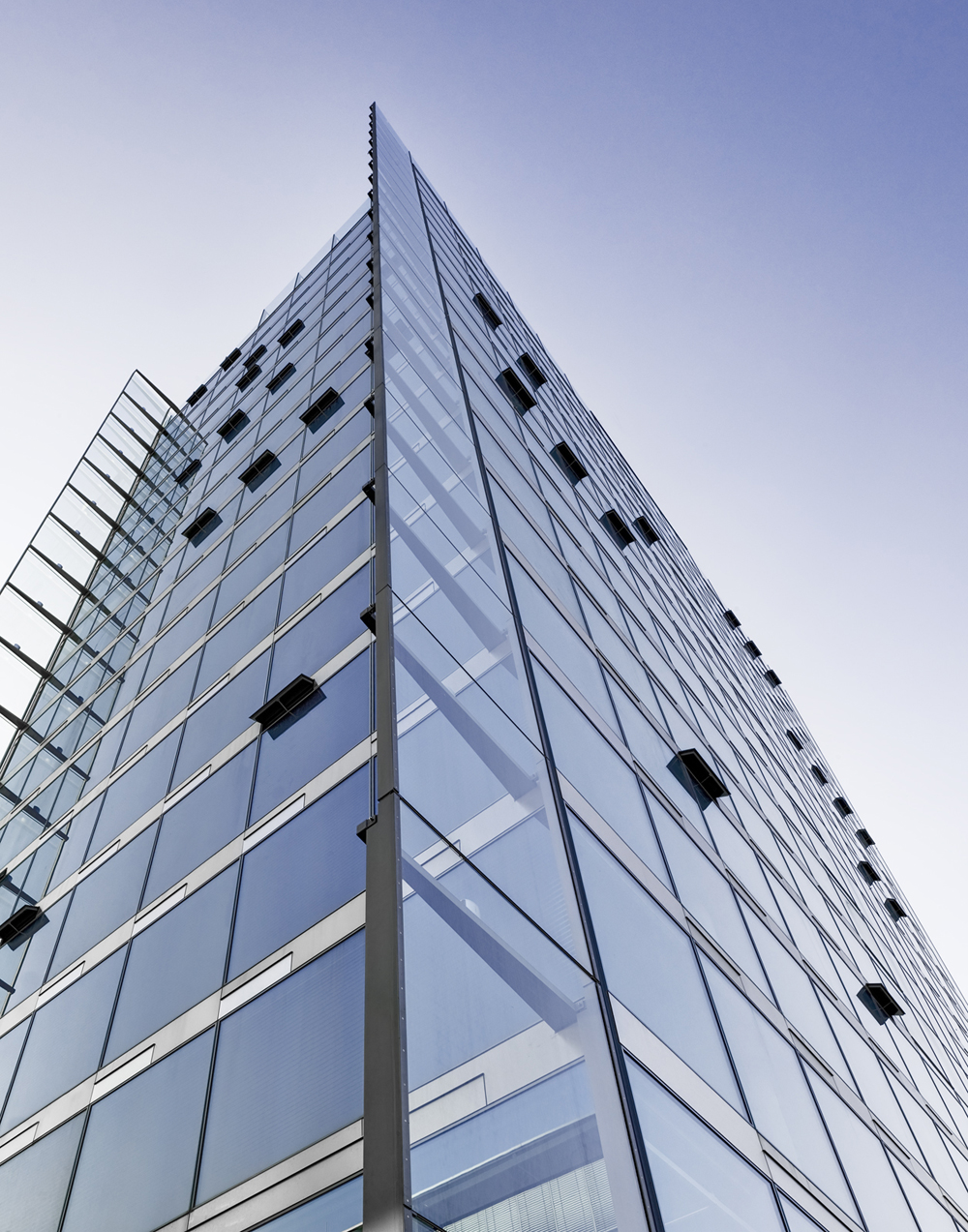

Hegau Tower / Murphy Jahn - Facade, Windows
© Rainer Viertlboeck

More photographs after the break.

An extension of the regular façade beyond the building volume with screen walls generates a continuous glass sheet toward the eastern plaza and merges the two buildings into one. The tower is constructed as a concrete frame with stiffening core and perimeter columns. Structure and façade are designed for flexibility in office lay-outs and allow open plan, cell and combine offices as well as multiple tenants per floor. The façade module of 2,70 m fosters a generous ambiance of space.

Hegau Tower / Murphy Jahn - Windows, Facade
© Rainer Viertlboeck

Sustainable initiatives include the abundant and recurring strategies of daylight, air and water. A windproof, exterior automatic operable sunshade on the southwest façade allows for reduction of solar loads along with automatic interior perforated louvers on the other three facades. Natural ventilation is provided via hopper windows operated via chain motors and held by scissor hinges. The flat concrete slab is equipped with PVC water tubes to cool and heat the exposed thermal mass of the structure.

sketch
