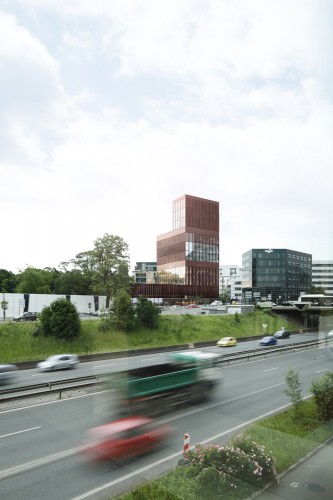

Courtesy of LAN Architecture

Paris based LAN Architecture has shared with us their winning design for the competition organized by SAEM EURALILLE to design an office building for Sogeprom / Projectim in Lille, France. Additional images and insight from the architects after the break.

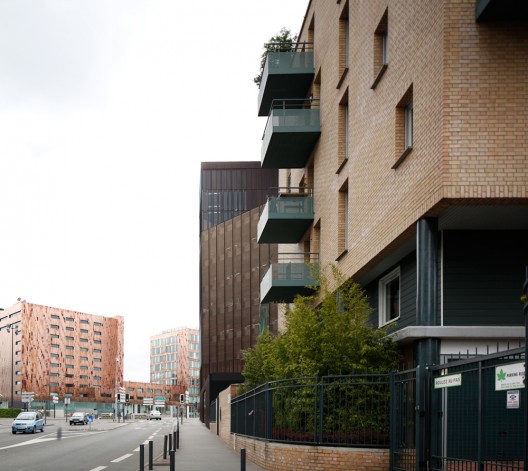

Courtesy of LAN Architecture

Is it possible to reaffirm the city in an architectural project?

This question, shared by our entire team, was the departure point for our search for a sensitive but daring response.

The plot’s strategic position, at a major crossroads in an urban district, directed us towards a “multiform” architecture whose geometry could provide a specific response to problems linked to the project’s scale, geography and demands.

We realised that the building’s location enables it to articulate different urban scales, both near and far. Its verticality can act as a visual axis and marker, whilst finding a just and respectful relationship with its immediate context.

The purpose of this architecture is to construct a new urban space combining the private and public, the vertical and horizontal. The building’s envelope is conceived as an apparatus for the city’s constant visual reinvention.

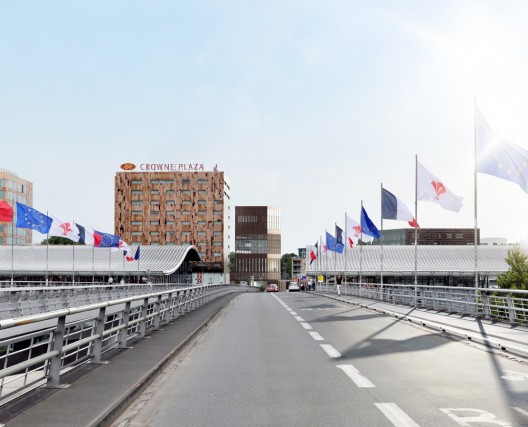

Courtesy of LAN Architecture

The windows break with the modularity of office buildings, creating a more domestic image and ensuring the transition between a residential and a business district. The result is a kinetic architecture constantly changing with different viewpoints.

To increase this visual richness, the design of each façade was generated by its orientation, use and thermal considerations. This creates successions and superimpositions of glazed areas, windows on the city, and different, fixed or mobile systems of wooden cladding, enabling constant change in function of the building’s daily life.

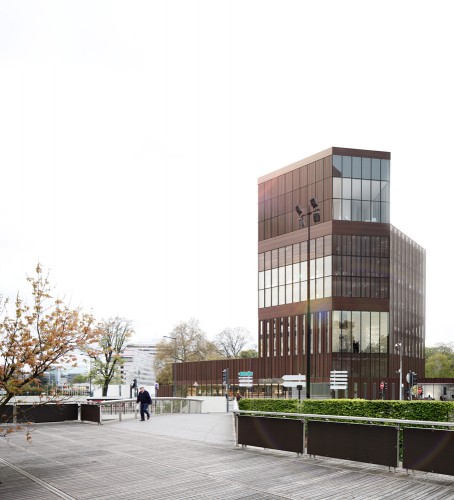

Courtesy of LAN Architecture

Materiality of the facades: networks and wood

The design of the facades and the building’s interior spaces is structured by a 1.35 metre grid composed of a U-shaped metallic element running the entire height of the building, to which the envelope’s various components are fixed.

This vertical grid is interrupted three times by horizontal wooden bands, running around the building and ending at the acroter.

Secondary horizontal and vertical grids regulate the design of the fixed or mobile wooden elements.

We chose red wood for the cladding of the facades, using it in different configurations depending on their purpose, and alternating this with larges windows looking out over the city. Wood is used as a fixed cladding in the opaque or semi-glazed parts of the façade, but also, depending on the orientation, in the form of pivoting openwork shutters, enabling precise control of light penetration. But is also used as a fixed sunscreen.

The project’s conception provides residents and office users with a public space based on horizontality, circulation and social interaction on a human scale. Unable to build right to the plot’s limits, we opted for a form of portico, a walkway providing shelter from the weather, a lively exterior space in which passers-by and shop customers can intermingle.

Courtesy of LAN Architecture

Architect: LAN Architecture
Location: EURALILLE, ZAC du centre international d’affaires des gares,Plot 4.1-A
Programme: Construction of an office building with shops
Developer Contractor: SAEM Euralille
Client: Sogeprom, Projectim
Budget: € 6M excl. VAT
Built Up Area: 3,475 m²
Timetable: 2010–13
Team: LAN Architecture (lead architect), Act Environnement (HEQ consultant), IOSIS (TCE)
Photographs: Courtesy of LAN Architecture
